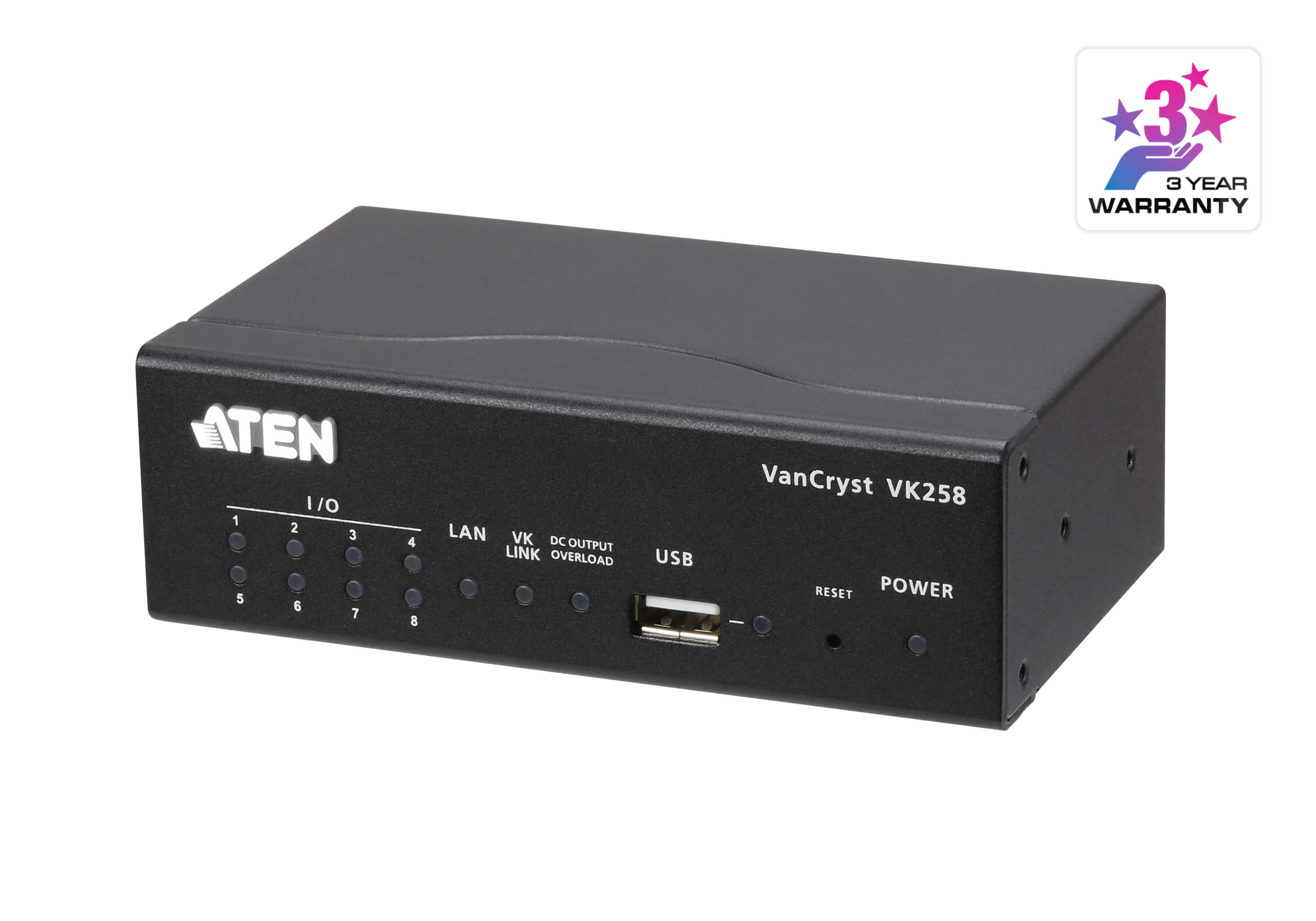

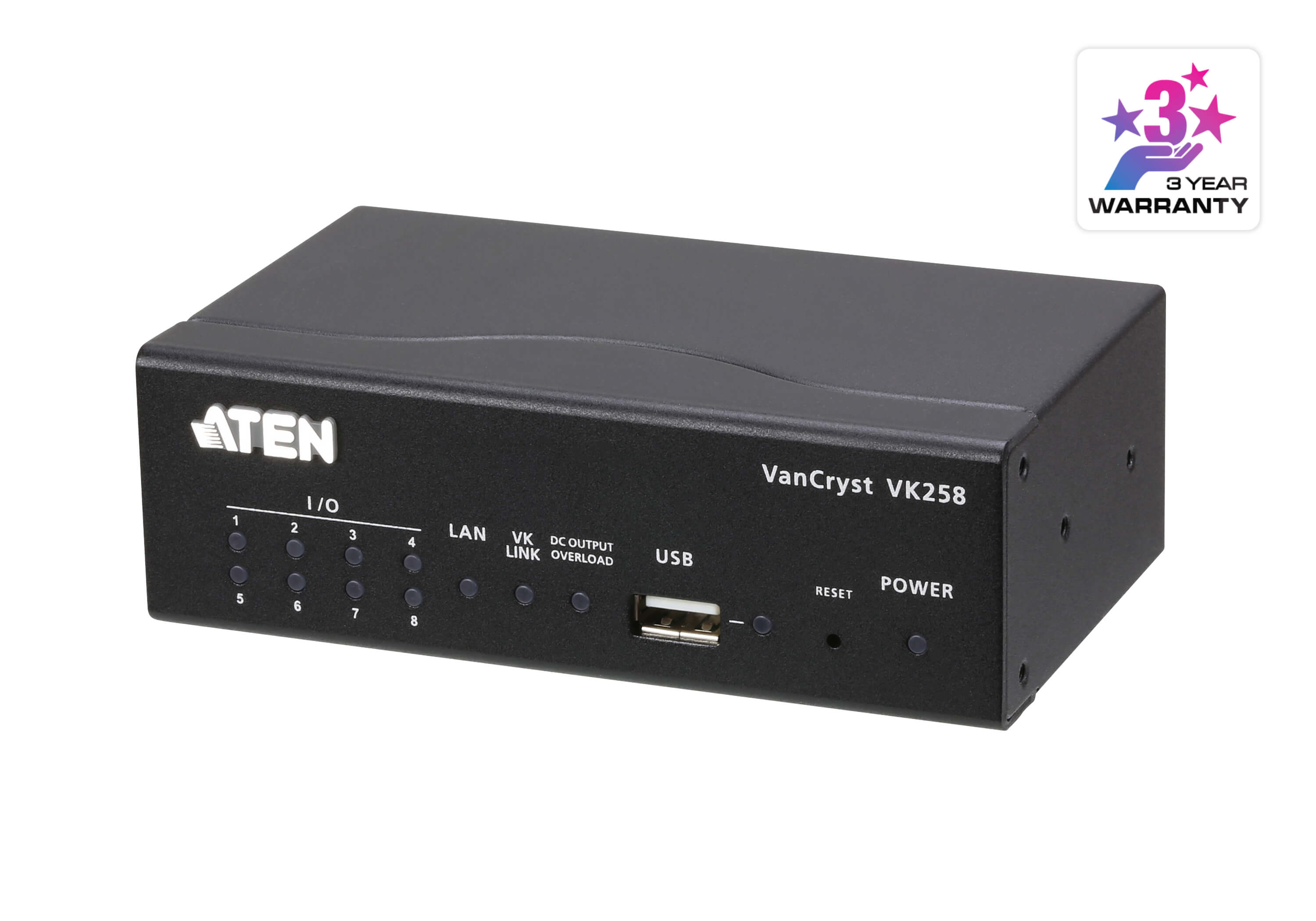

ATEN 8-Channel Digital I/O Expansion Box

ATEN 8-Channel Digital I/O Expansion Box, Digital, Input/output, 8 channels, 8 channels, 8 channels, ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH

ATEN 8 DIGITAL I/O EXPANSION BOX

Click or hover over image to enlarge

Brand:ATEN
MPN:VK258-AT

Part #: VK258-AT

Power consumption

300 mA

Power consumption note

DC5V:2.2W:36BTU, POE:2.75W:39BTU

Module type

Digital

Signal direction

Input/output

Channels quantity

8 channels

Digital input channels quantity

8 channels

Digital output channels quantity

8 channels

Ethernet LAN (RJ-45) ports

1

Returns & Warranty

Comsys Price

$988.99

Save $300.41 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $247.25 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 8 DIGITAL I/O EXPANSION BOX

The VK258 8-Channel Digital I/O Expansion Box provides an additional eight channels of digital input/output for a flexible expansion of the ATEN Control System. This allows users to control more digital I/O devices, such as various sensors, dry contact devices, PCs, and motor-driven devices in environments where more devices need to be centrally controlled. With the advantage of the Ethernet-based connection, the expansion box easily connects to the ATEN Controller via a LAN connection from different locations across a network.
1x VK258 8-Channel Digital I/O Expansion Box
1x Rack Mount Kit
9xTerminal Blocks
1x User Instructions

Key features

  • Module type: Digital
  • Signal direction: Input/output
  • Channels quantity: 8 channels
  • Digital input channels quantity: 8 channels
  • Digital output channels quantity: 8 channels
  • Ethernet LAN (RJ-45) ports: 1
  • Supported network protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
  • Nominal output voltage: 12 V
  • Input impedance: 0.3 Ω
  • Product colour: Black
  • Power consumption: 300 mA
  • Power consumption note: DC5V:2.2W:36BTU, POE:2.75W:39BTU
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Relative humidity: 0 - 80%
  • Width: 75.8 mm
  • Depth: 130 mm
  • Height: 42 mm
  • Weight: 550 g
  • Package width: 59 mm
  • Package depth: 239 mm
  • Package height: 160 mm
  • Package weight: 708 g
  • Products per master (outer) case: 5 pc(s)
  • Master (outer) case width: 250 mm
  • Master (outer) case length: 325 mm
  • Master (outer) case height: 175 mm
  • Master (outer) case gross weight: 3.89 kg
  • Master (outer) case net weight: 2.75 kg

Inc GST

$988.99
