ATEN VM5404H video switch HDMI
ATEN VM5404H, HDMI, 4 x HDMI Type A Female (Black), 4 x HDMI Type A Female (Black), Metal, Black, 60 Hz
Click or hover over image to enlarge
Brand:ATEN
MPN:VM5404H-AT-U
Part #: VM5404H-AT-U
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
AC adapter input current
1 A
Power consumption (typical)
37.5 W
Material
Metal
Product colour
Black
HDCP
Yes
Maximum refresh rate
60 Hz
Comsys Price
$5,414.19
Save $719.12 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

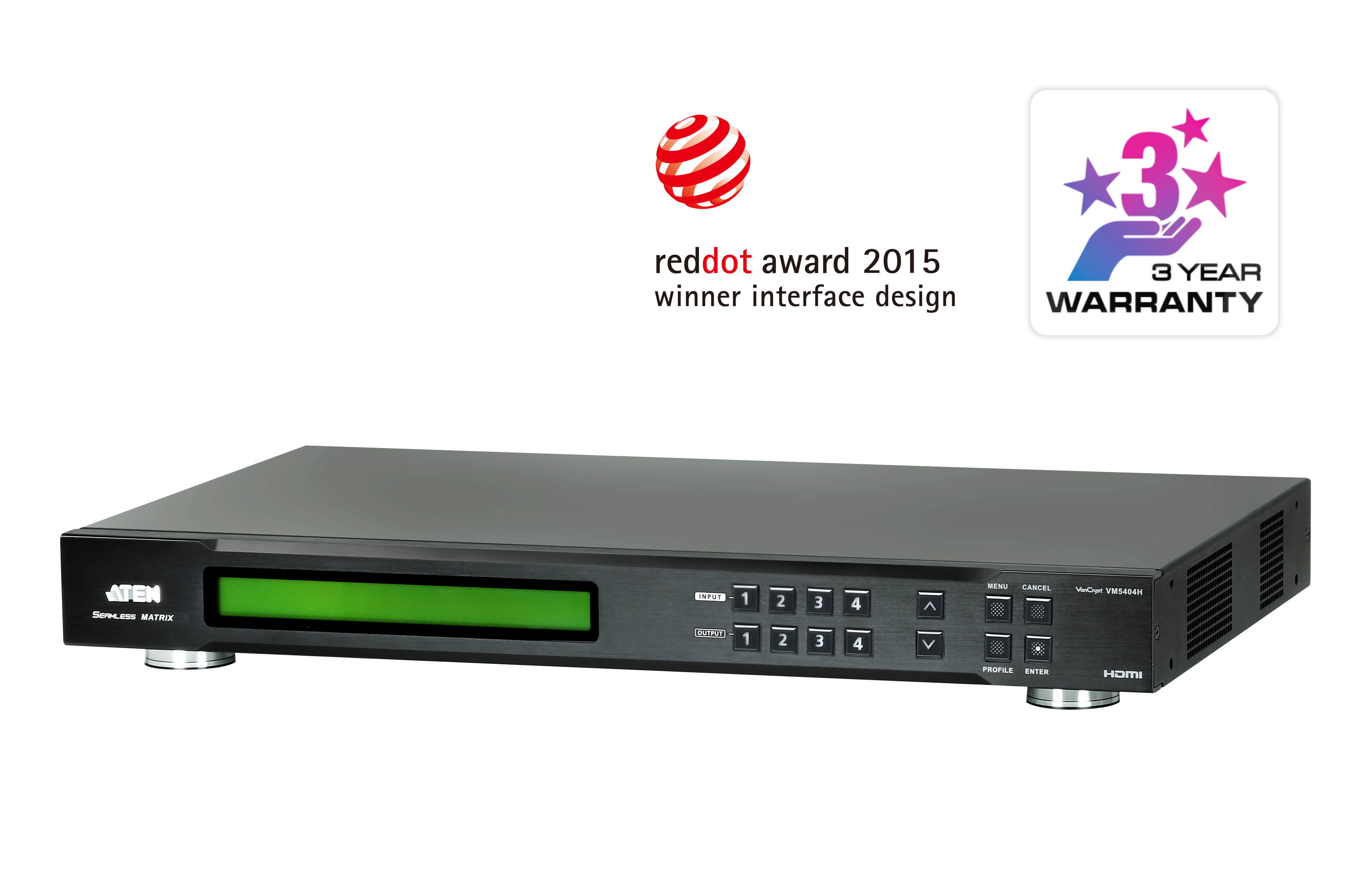

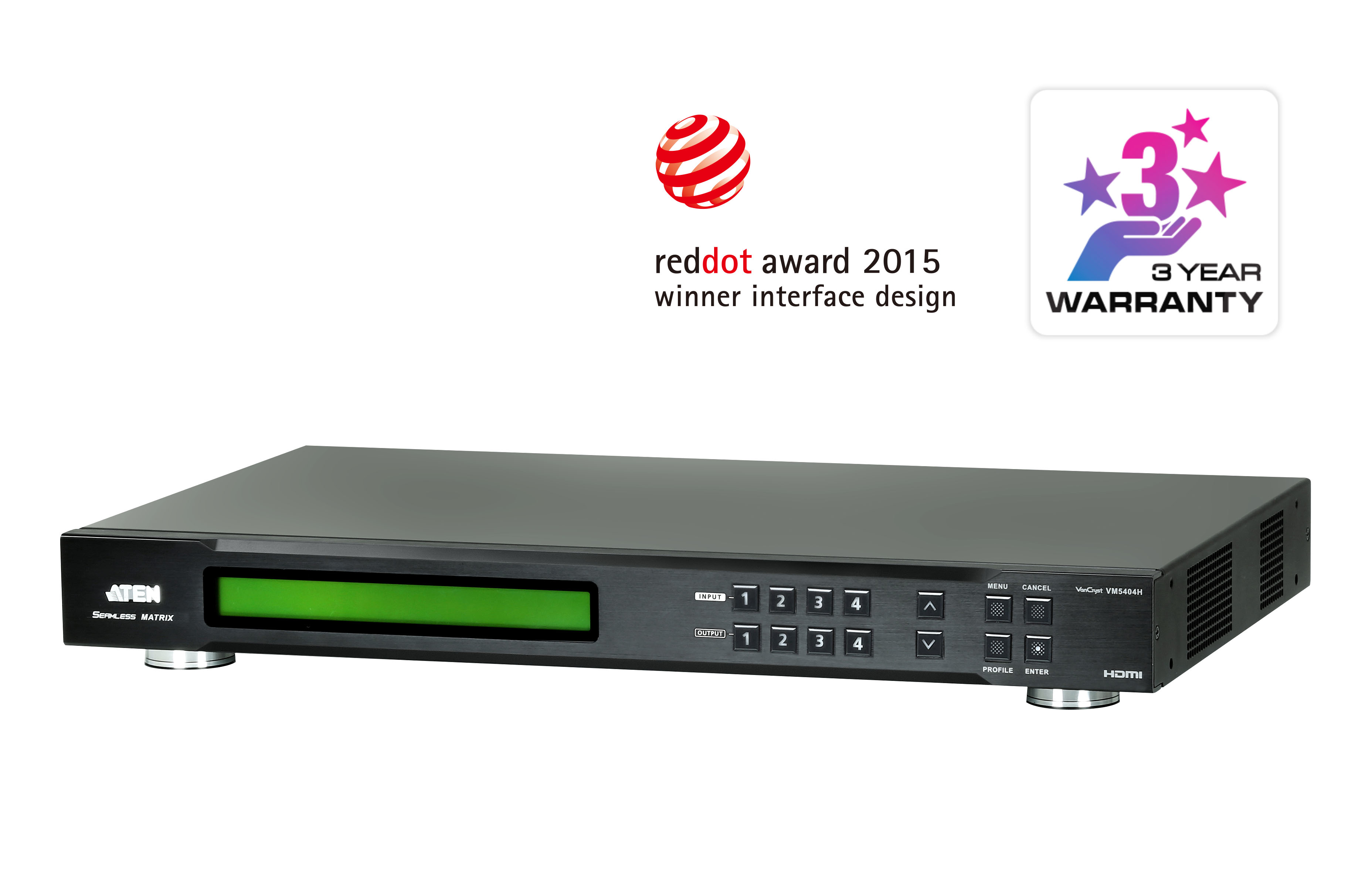

ATEN 4X4 HDMI MATRIX WITH SCALER
The VM5404H 4 x 4 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD.
The VM5404H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.
The VM5404H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
The VM5404H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.
The VM5404H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
Key features
- Video port type: HDMI
- HDMI ports quantity: 8
- HDMI in: 4
- Number of HDMI outputs: 4
- RJ-45 input ports: 1
- RS-232 ports: 1
- Video in: 4 x HDMI Type A Female (Black)
- Video out: 4 x HDMI Type A Female (Black)
- Material: Metal
- Product colour: Black
- HDCP: Yes
- Maximum refresh rate: 60 Hz
- Maximum operating distance: 15 m
- Rack mounting: Yes
- Supported graphics resolutions: 1920 x 1080 (HD 1080)
- Supported video modes: 1080p
- Bandwidth: 6.75 Gbit/s
- Bandwidth: 225 MHz
- Maximum resolution: 1920 x 1080 pixels
- 3D: Yes
- Input impedance: 100 Ω
- Output impedance: 100 Ω
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- AC adapter input current: 1 A
- Power consumption (typical): 37.5 W
- Width: 432.4 mm
- Depth: 262.3 mm
- Height: 44 mm
- Weight: 4.1 kg
+ 7 more — see the Specifications tab.
