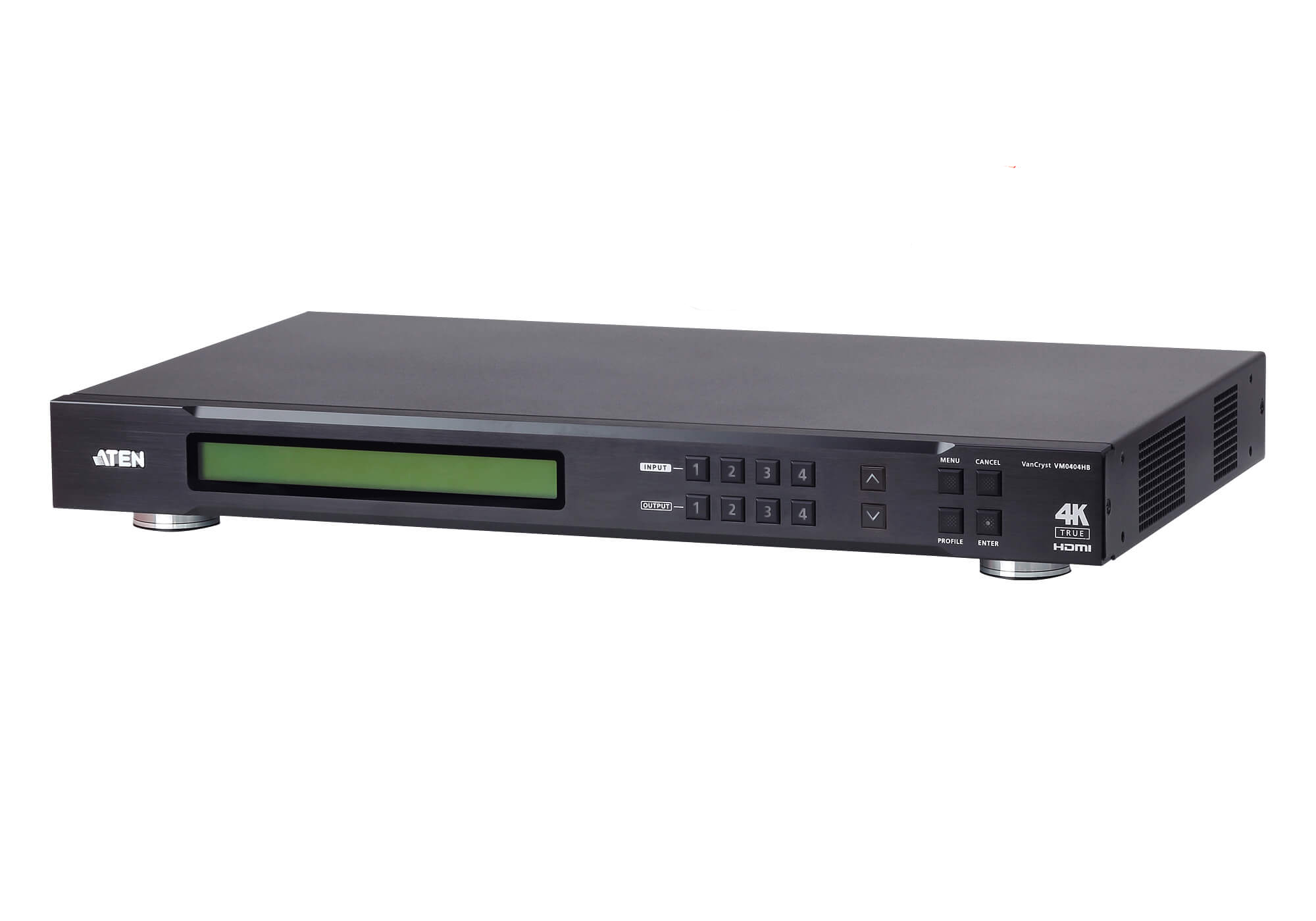

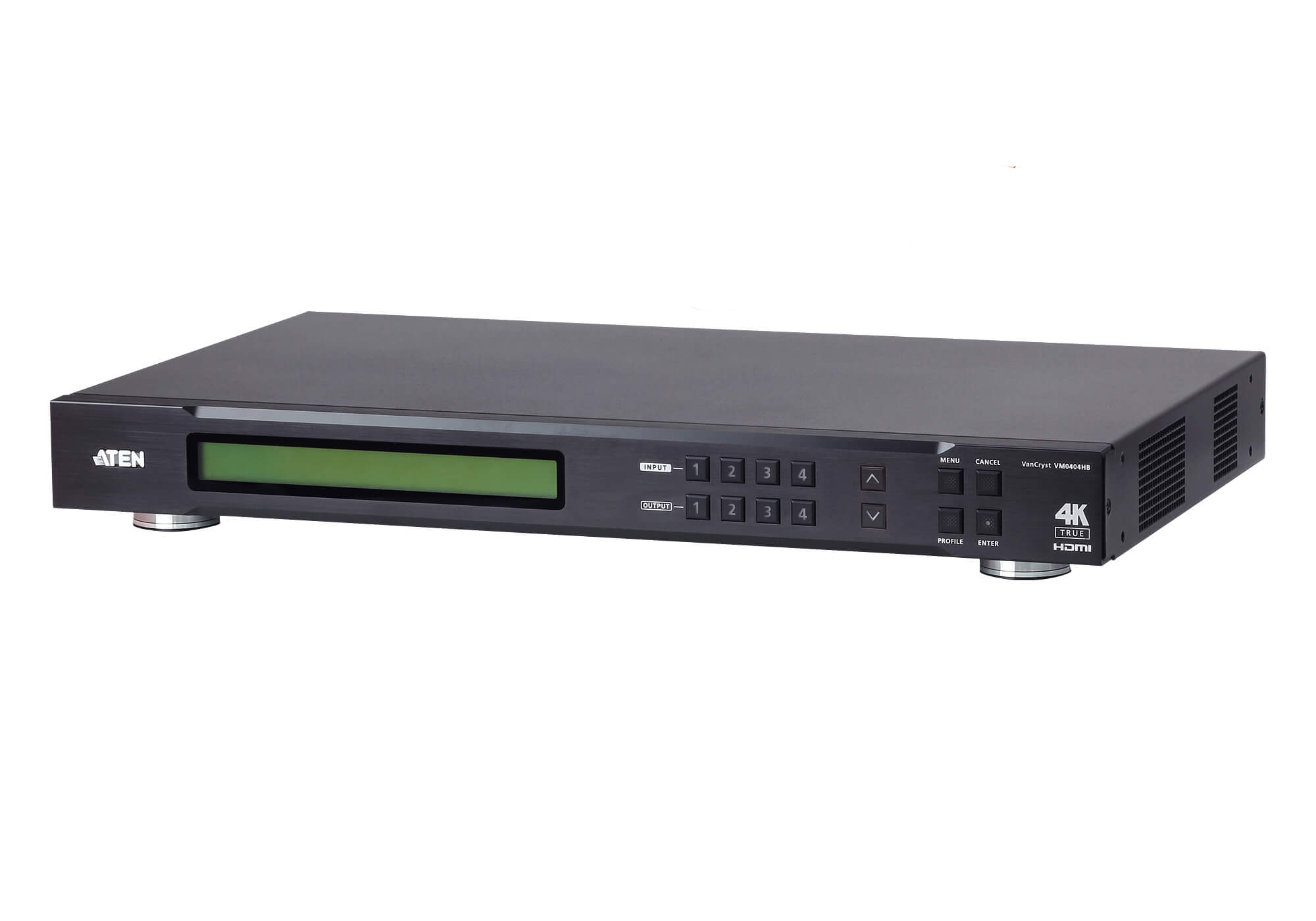

ATEN 4X4 4K HDMI MATRIX SWITCH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Switches
  • SKU: VM0404HB-AT-U
  • MPN: VM0404HB-AT-U

ATEN VM0404HB HDMI

ATEN VM0404HB, HDMI, Metal, Black, 15 m, 600 MHz, 4096 x 2160 pixels

ATEN 4X4 4K HDMI MATRIX SWITCH — ATEN — Switches

Click or hover over image to enlarge

Brand:ATEN
MPN:VM0404HB-AT-U

Part #: VM0404HB-AT-U

Search this part on Google

AC adapter input voltage

100-240 V

AC adapter frequency

50/60 Hz

AC adapter input current

1 A

Material

Metal

Product colour

Black

HDCP

Yes

Maximum operating distance

15 m

Bandwidth

600 MHz

Returns & Warranty

Comsys Price

$1,800.89
On Sale

Save $365.77 off RRP

Available to Order

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $450.22
100% NZ Owned & OperatedCall 0800 664 554

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 4X4 4K HDMI MATRIX SWITCH

ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

Key features

  • Video port type: HDMI
  • HDMI ports quantity: 8
  • HDMI in: 4
  • Number of HDMI outputs: 4
  • RJ-45 input ports: 1
  • RS-232 ports: 1
  • Material: Metal
  • Product colour: Black
  • HDCP: Yes
  • Maximum operating distance: 15 m
  • Bandwidth: 600 MHz
  • Maximum resolution: 4096 x 2160 pixels
  • 3D: Yes
  • HD type: 4K Ultra HD
  • Rack capacity: 1U
  • Input impedance: 100 Ω
  • Output impedance: 100 Ω
  • AC adapter input voltage: 100-240 V
  • AC adapter frequency: 50/60 Hz
  • AC adapter input current: 1 A
  • Width: 437.2 mm
  • Depth: 152.8 mm
  • Height: 44 mm
  • Weight: 2.47 kg
  • Remote control included: Yes
  • User guide: Yes
  • Cables included: AC
  • Mounting brackets included: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C

+ 1 more — see the Specifications tab.
