ATEN VM0404HA HDMI

ATEN VM0404HA, HDMI, 4 x HDMI Type A Female (Black), 4 x HDMI Type A Female (Black), Metal, Black, 60 Hz

ATEN 4X4 4K HDMI MATRIX 2YR

Click or hover over image to enlarge

Brand:ATEN
MPN:VM0404HA-AT-U

Part #: VM0404HA-AT-U

Power consumption (typical)

10.58 W

Material

Metal

Product colour

Black

HDCP

Yes

Maximum refresh rate

60 Hz

Maximum operating distance

15 m

Supported graphics resolutions

3840 x 2160, 4096 x 2160

Supported video modes

2160i, 2160p

Returns & Warranty

Comsys Price

$1,298.34

Save $180.92 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To CompareStock Alerts
Afterpay

Four payments of $324.59 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 4X4 4K HDMI MATRIX 2YR

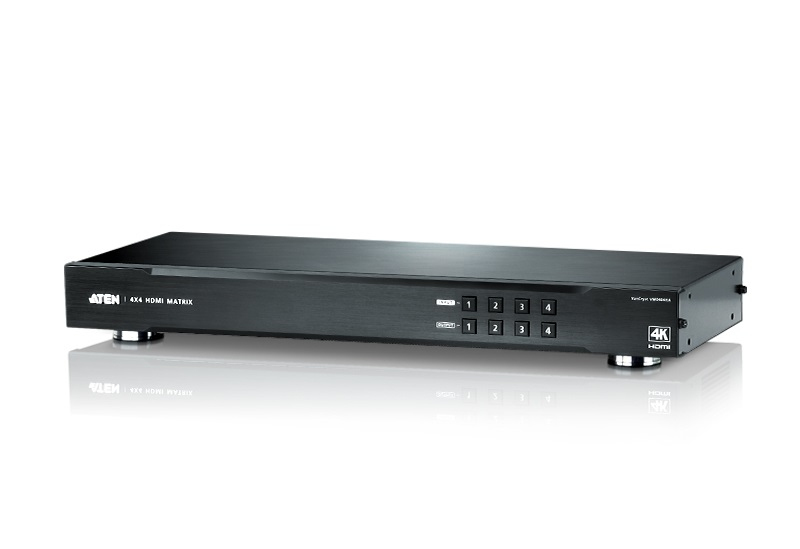

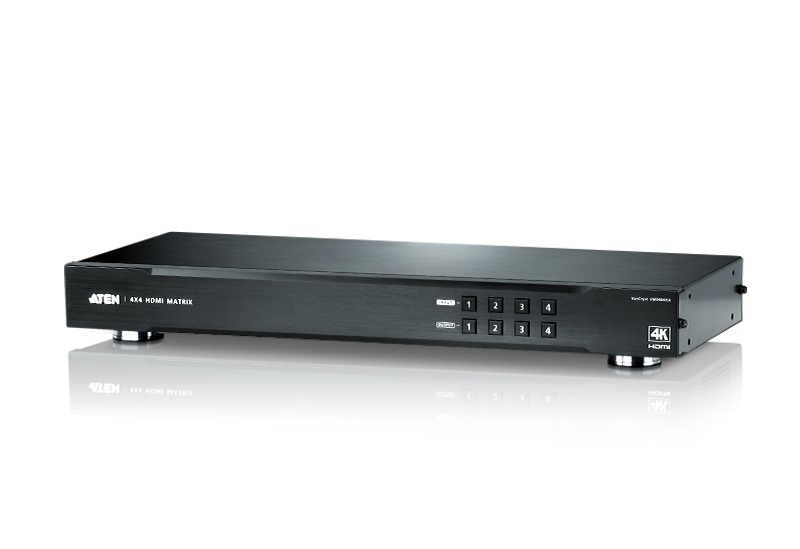

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.

The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.

Features:
-Connects any of 4 HDMI sources to any of 4 HDMI displays
-Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
-EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
-Multiple Control Methods – system management via front-panel pushbuttons, IR remote and RS-232 control
-Supports Dolby True HD and DTS HD Master audio
-Signaling rates up to 3.4 Gbits for fl awless 4K output
-HDMI (3D, Deep Color, 4K) and HDCP 1.4 compatible
-Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
-Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
-ESD protection for HDMI
-Firmware upgradeable
-Rack Mountable (1U design)

Package Contents
1x VM0404HA 4x4 4K HDMI Matrix Switch
1x Power Adapter
1x IR Remote Control
1x IR Receiver
1x Mounting Kit
1x User Instructions

Key features

  • Video port type: HDMI
  • HDMI ports quantity: 8
  • HDMI in: 4
  • Number of HDMI outputs: 4
  • RS-232 ports: 1
  • Video in: 4 x HDMI Type A Female (Black)
  • Video out: 4 x HDMI Type A Female (Black)
  • DC-in jack: Yes
  • Material: Metal
  • Product colour: Black
  • HDCP: Yes
  • Maximum refresh rate: 60 Hz
  • Maximum operating distance: 15 m
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Supported video modes: 2160i, 2160p
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • Maximum resolution: 4096 x 2160 pixels
  • 3D: Yes
  • Input impedance: 100 Ω
  • Output impedance: 100 Ω
  • Power consumption (typical): 10.58 W
  • Width: 437.2 mm
  • Depth: 162.9 mm
  • Height: 44 mm
  • Weight: 2.02 kg
  • Quick start guide: Yes
  • Remote control included: Yes
  • Manual: Yes
  • AC adapter included: Yes

+ 6 more — see the Specifications tab.
