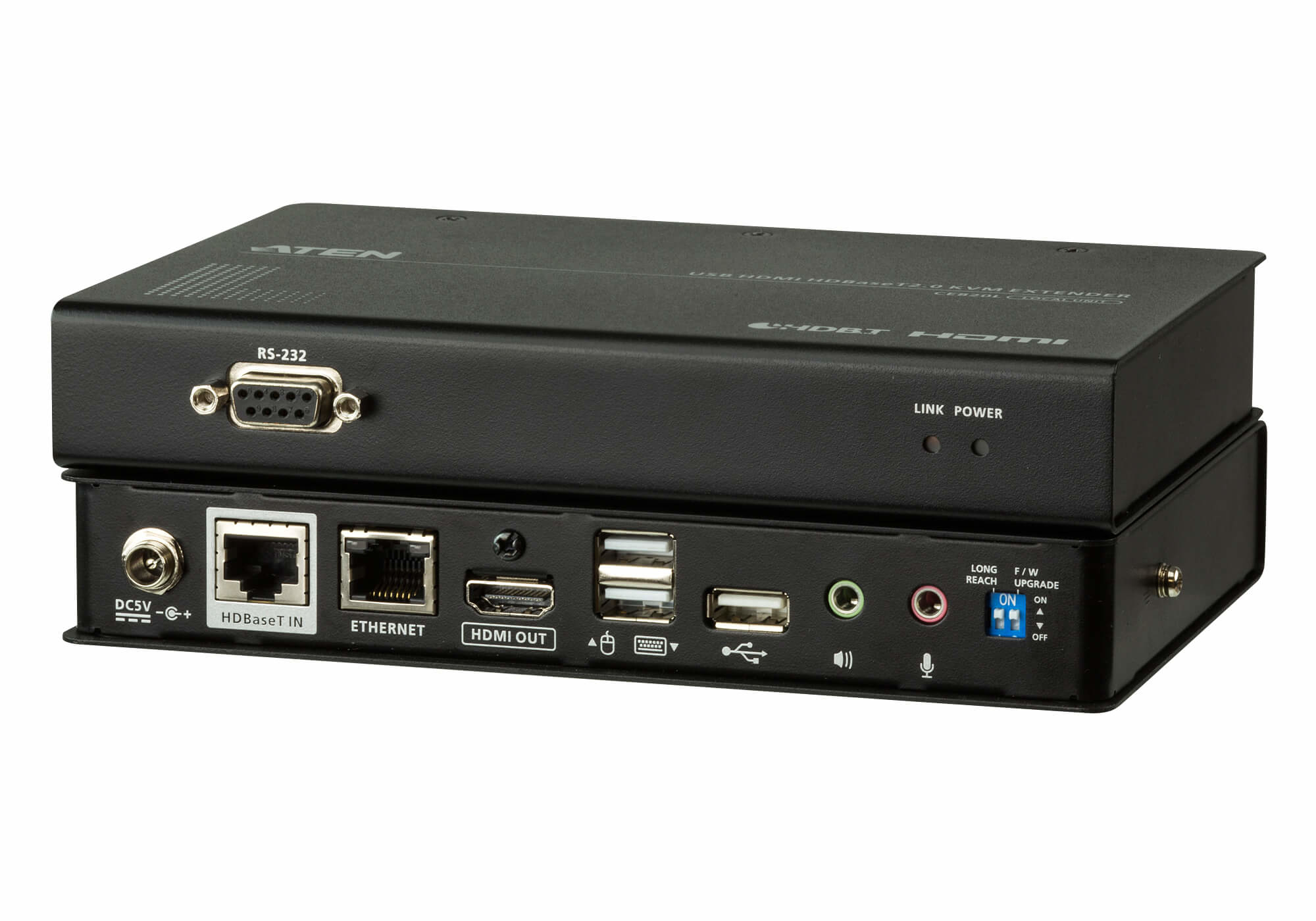

ATEN CE820-ATA-U KVM extender Transmitter & receiver

ATEN CE820-ATA-U, Transmitter & receiver, Wired, 150 m, Cat5e, Cat6, Cat6a, 4096 x 2160 pixels, Black

ATEN 4K HDMI HDBASET 2.0 KVM EXTENDER WITH RS232

Click or hover over image to enlarge

Brand:ATEN
MPN:CE820-ATA-U

Part #: CE820-ATA-U

AC adapter output voltage

5 V

Power consumption (transmitter) (max)

2.87 W

Power consumption (receiver) (max)

5.37 W

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

150 m

Cable types supported

Cat5e, Cat6, Cat6a

Rack mounting

Yes

Returns & Warranty

Comsys Price

$1,551.34

Save $80.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $387.84 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

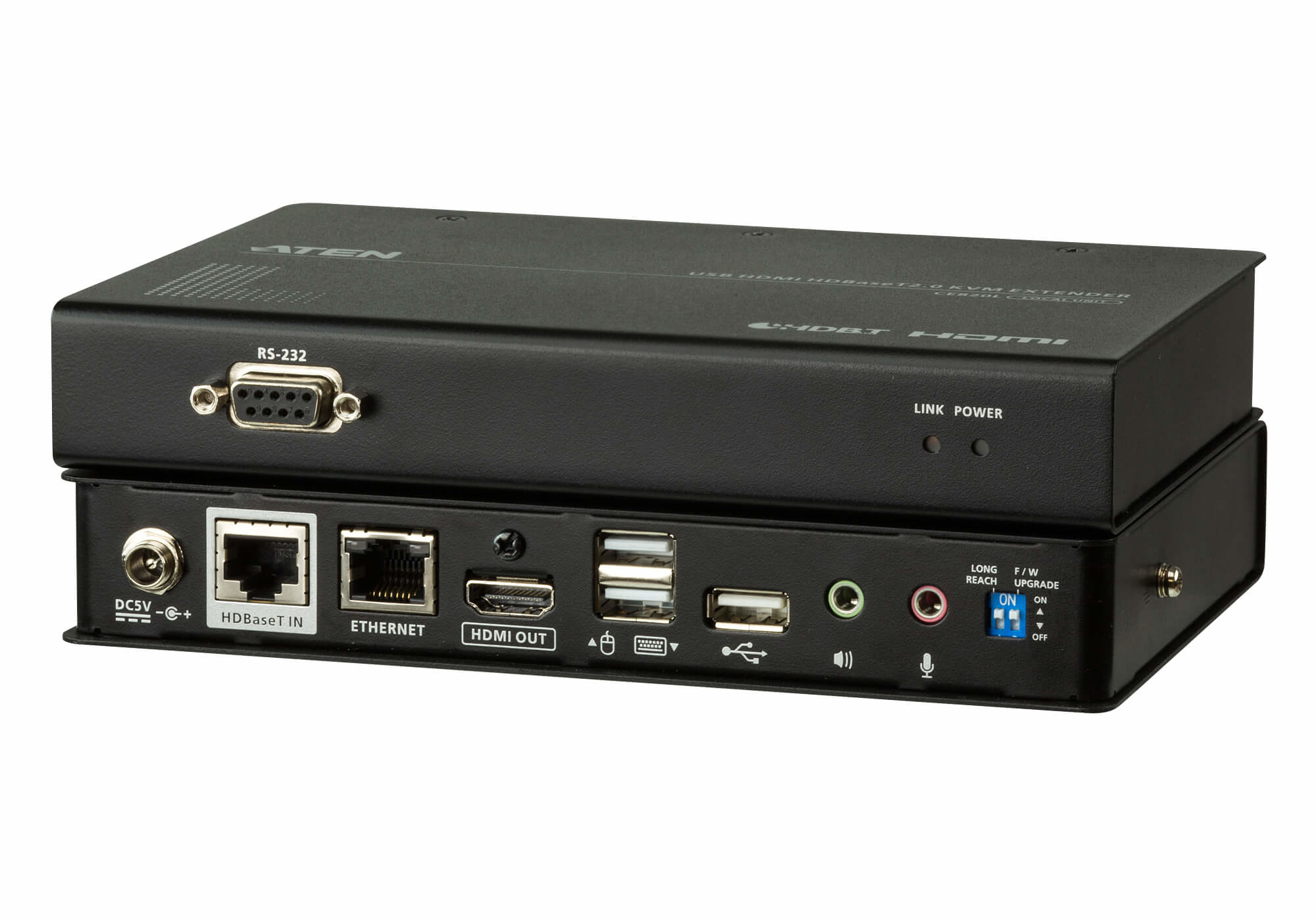

ATEN 4K HDMI HDBASET 2.0 KVM EXTENDER WITH RS232

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions

Key features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Rack mounting: Yes
  • Maximum digital resolution: 4096 x 2160 pixels
  • Product colour: Black
  • Material: Metal
  • LED indicators: Link, Power, Video
  • Transmitter video port type: HDMI
  • Transmitter local video port: Yes
  • Transmitter local video port type: HDMI
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: HDMI
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • USB 2.0 ports quantity: 4
  • PC Audio in: Yes
  • PC Audio out: Yes
  • AC adapter output voltage: 5 V
  • Power consumption (transmitter) (max): 2.87 W
  • Power consumption (receiver) (max): 5.37 W
  • Transmitter width: 18.2 cm
  • Transmitter depth: 12.2 cm
  • Transmitter height: 2.87 cm
  • Transmitter weight: 630 g
  • Receiver width: 18.2 cm
  • Receiver depth: 12.2 cm
  • Receiver height: 2.87 cm

+ 4 more — see the Specifications tab.
