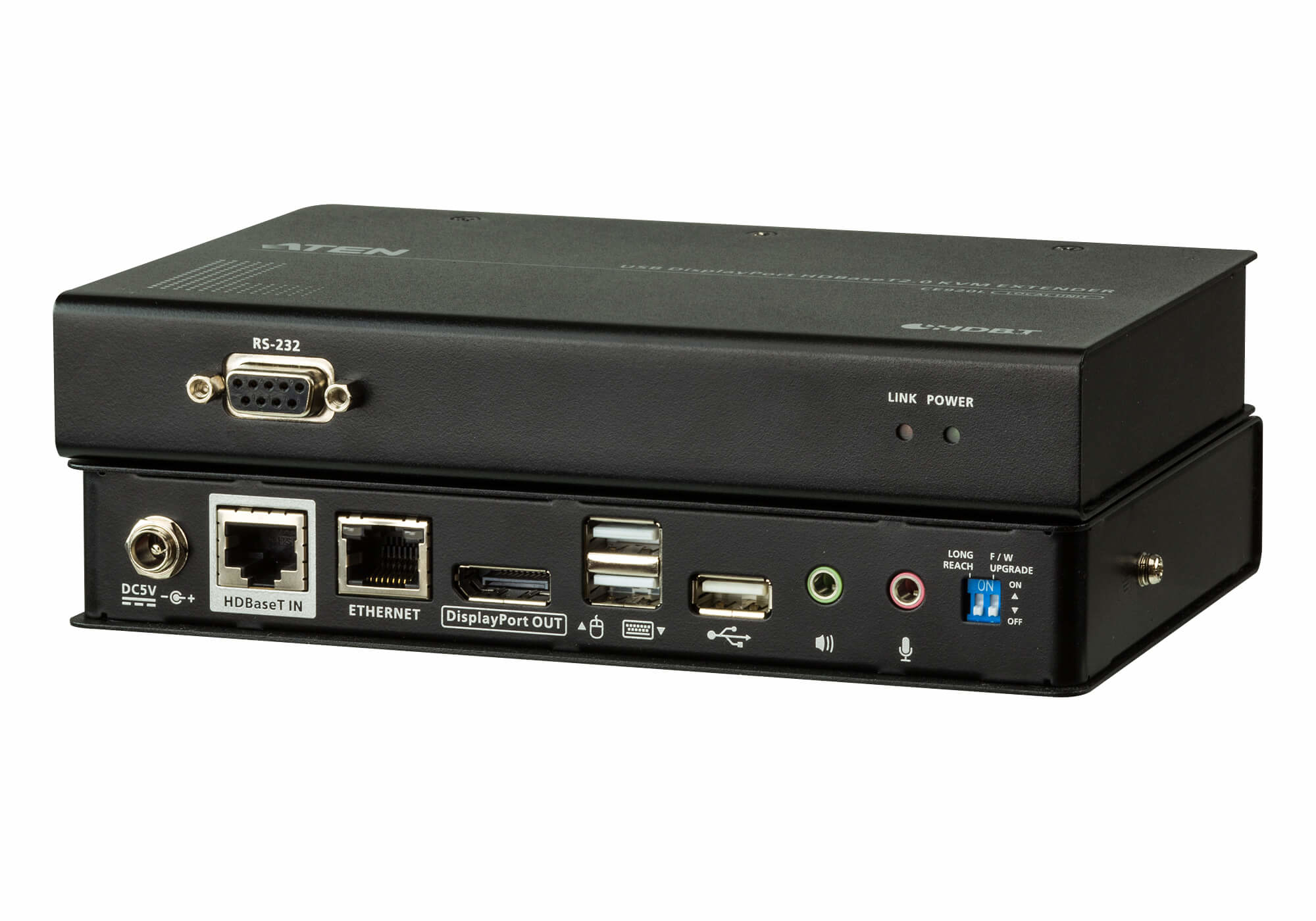

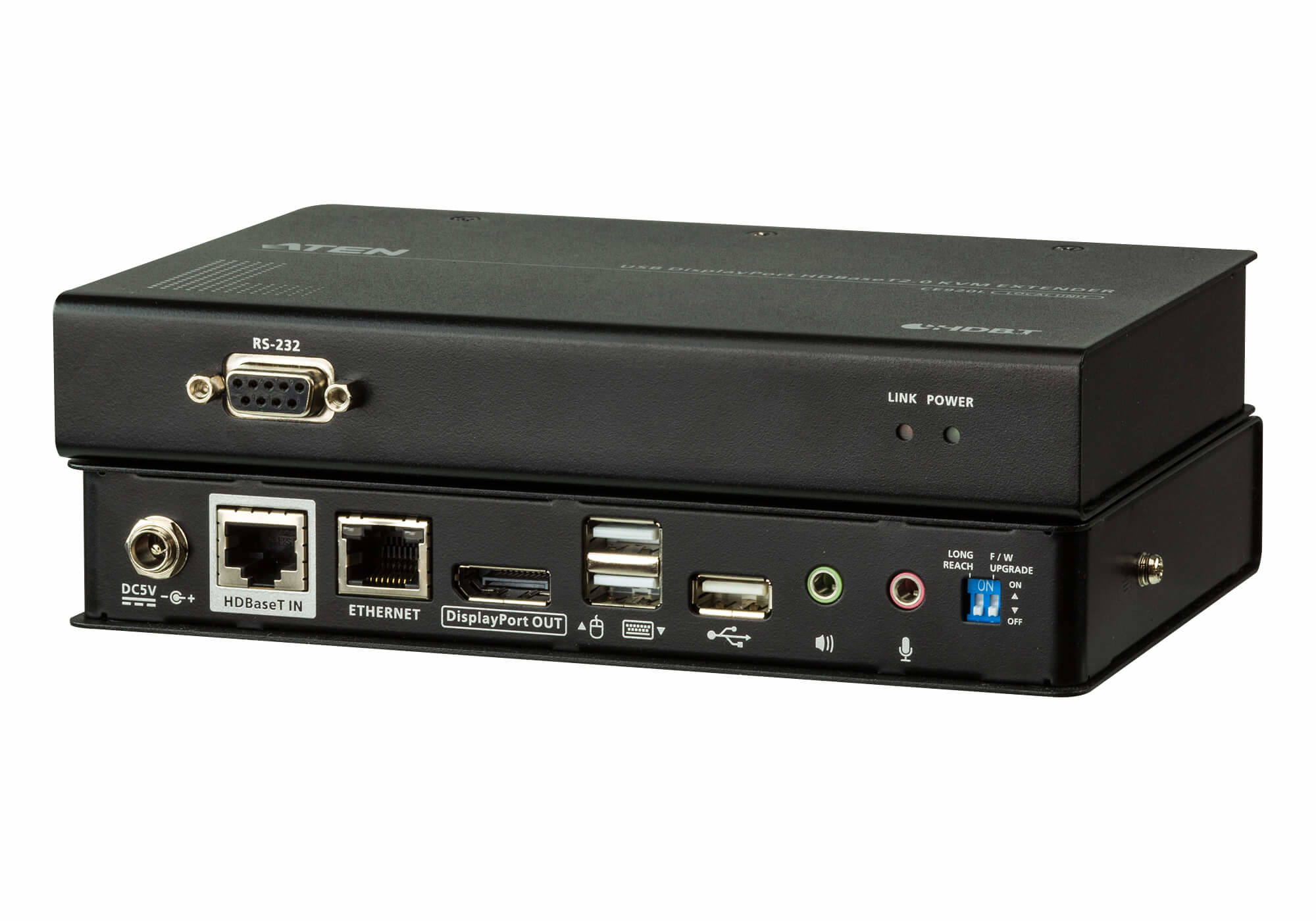

ATEN CE920-ATA-U KVM extender Transmitter & receiver

ATEN CE920-ATA-U, Transmitter & receiver, Wired, 150 m, Cat5e, Cat6, Cat6a, 4096 x 2160 pixels, Black

ATEN 4K DISPLAYPORT HDBASET 2.0 KVM EXTENDER WITH RS232

Click or hover over image to enlarge

Brand:ATEN
MPN:CE920-ATA-U

Part #: CE920-ATA-U

AC adapter output voltage

5 V

Power consumption (transmitter) (max)

3.99 W

Power consumption (receiver) (max)

6.74 W

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

150 m

Cable types supported

Cat5e, Cat6, Cat6a

Rack mounting

Yes

Returns & Warranty

Comsys Price

$2,260.89

Save $117.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $565.22 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 4K DISPLAYPORT HDBASET 2.0 KVM EXTENDER WITH RS232

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-0205-21DG Microphone Cable
1x LIN5-0205-21CG Speaker Cable
1x LIN6-04U1-V1BG USB Type-A to Type-B Cable
1x LIN5-20K1-K13G DisplayPort Cable
2x Mounting Kits
2x 0AD8-1F05-30M1 Power Adapters
1x User Instructions

Key features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Rack mounting: Yes
  • Maximum digital resolution: 4096 x 2160 pixels
  • Product colour: Black
  • Material: Metal
  • LED indicators: Yes
  • Transmitter video port type: DisplayPort
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: DisplayPort
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • USB 2.0 ports quantity: 4
  • USB data transfer rates: 480 Mbit/s
  • PC Audio in: Yes
  • PC Audio out: Yes
  • AC adapter output voltage: 5 V
  • Power consumption (transmitter) (max): 3.99 W
  • Power consumption (receiver) (max): 6.74 W
  • Transmitter width: 18.2 cm
  • Transmitter depth: 12.2 cm
  • Transmitter height: 2.87 cm
  • Transmitter weight: 630 g
  • Receiver width: 18.2 cm
  • Receiver depth: 12.2 cm
  • Receiver height: 2.87 cm
  • Receiver weight: 640 g

+ 12 more — see the Specifications tab.
