ATEN 4-Port VGA Input Board for VM1600 / VM3200
ATEN 4-Port VGA Input Board for VM1600 / VM3200, VGA, Metal, Black, Green, 1920 x 1200 (WUXGA), 300 MHz, 1920 x 1200 pixels
Click or hover over image to enlarge
Brand:ATEN
MPN:VM7104-AT
Part #: VM7104-AT
Power consumption (typical)
7.1 W
Material
Metal
Product colour
Black, Green
Supported graphics resolutions
1920 x 1200 (WUXGA)
Bandwidth
300 MHz
Maximum resolution
1920 x 1200 pixels
Manual
Yes
Video port type
VGA
Comsys Price
$2,550.69
Save $345.48 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $637.67 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 4 PORT VGA INPUT BOARD FOR VM1600A/VM3200

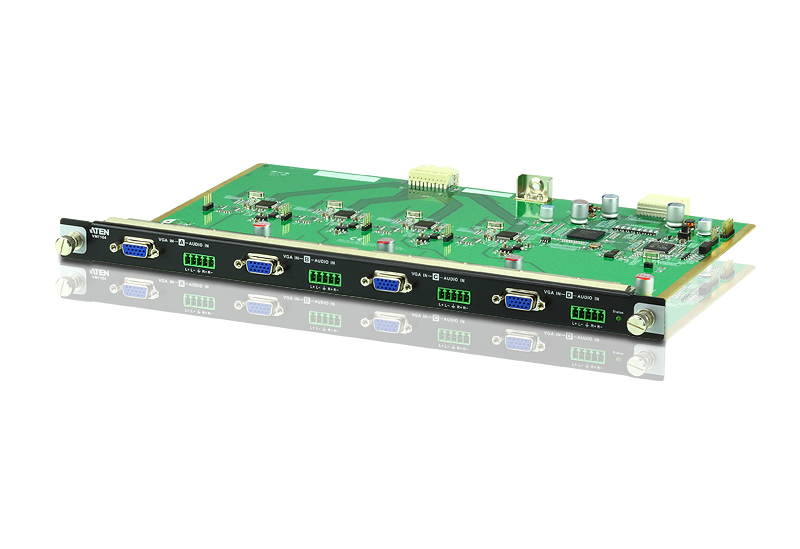

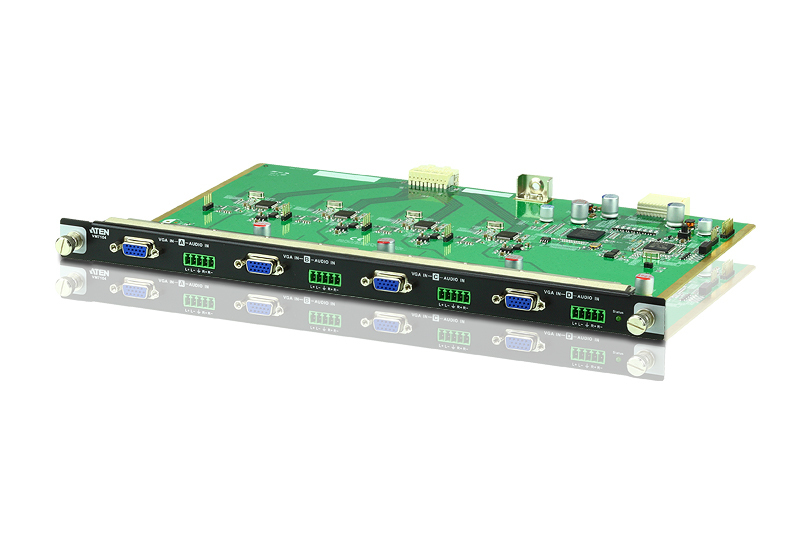

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed.
- Connects up to 4 VGA or Component inputs
- Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibilit
- Connects up to 4 VGA or Component inputs
- Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibilit
Key features
- Video port type: VGA
- VGA (D-Sub) ports quantity: 4
- Material: Metal
- Product colour: Black, Green
- Supported graphics resolutions: 1920 x 1200 (WUXGA)
- Bandwidth: 300 MHz
- Maximum resolution: 1920 x 1200 pixels
- Power consumption (typical): 7.1 W
- Width: 328 mm
- Height: 228 mm
- Weight: 560 g
- Length: 352 mm
- Manual: Yes
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
