ATEN 4-Port 4K HDMI Output Board With Scaler
ATEN 4-Port 4K HDMI Output Board With Scaler, HDMI, Metal, Green, Grey, 15 m, 3840 x 2160, 4096 x 2160, 480p, 720p, 1080i, 1080p
Click or hover over image to enlarge
Brand:ATEN
MPN:VM8814-AT
Part #: VM8814-AT
Power consumption (typical)
20 W
Material
Metal
Product colour
Green, Grey
HDCP
Yes
Maximum operating distance
15 m
Supported graphics resolutions
3840 x 2160, 4096 x 2160
Supported video modes
480p, 720p, 1080i, 1080p
Bandwidth
340 MHz
Comsys Price
$5,605.09
Save $748.63 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

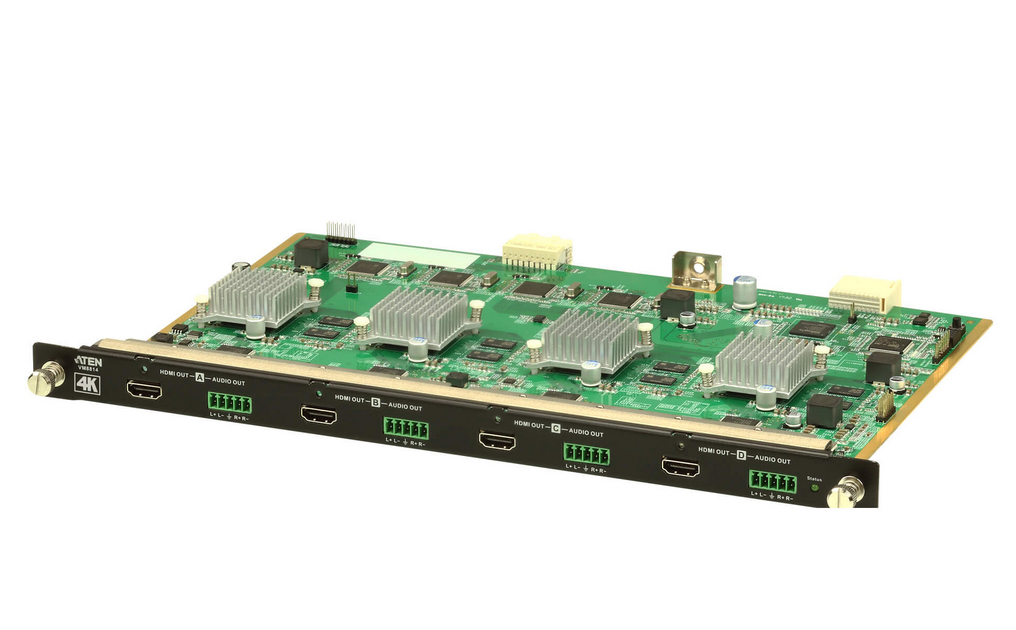

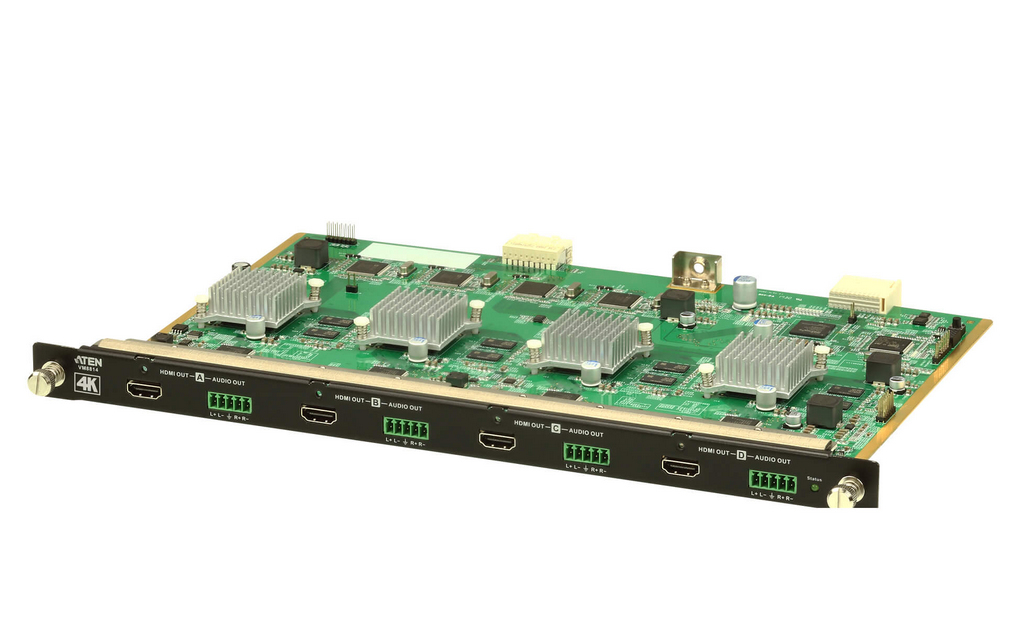

ATEN 4 PORT HDMI 4K OUTPUT BOARD WITH SCALAR FOR VM1600A/VM3200
The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Key features
- Video port type: HDMI
- Number of HDMI outputs: 4
- Material: Metal
- Product colour: Green, Grey
- HDCP: Yes
- Maximum operating distance: 15 m
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Supported video modes: 480p, 720p, 1080i, 1080p
- Bandwidth: 10.2 Gbit/s
- LED indicators: Yes
- Bandwidth: 340 MHz
- Maximum resolution: 4096 x 2160 pixels
- Built-in speaker(s): No
- 3D: Yes
- HD type: 4K Ultra HD
- Output impedance: 100 Ω
- Heat dissipation: 94 BTU/h
- HDCP version: 2.2
- Power consumption (typical): 20 W
- Width: 238 mm
- Depth: 23.3 mm
- Height: 352 mm
- Weight: 1.02 kg
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Compliance certificates: RoHS
