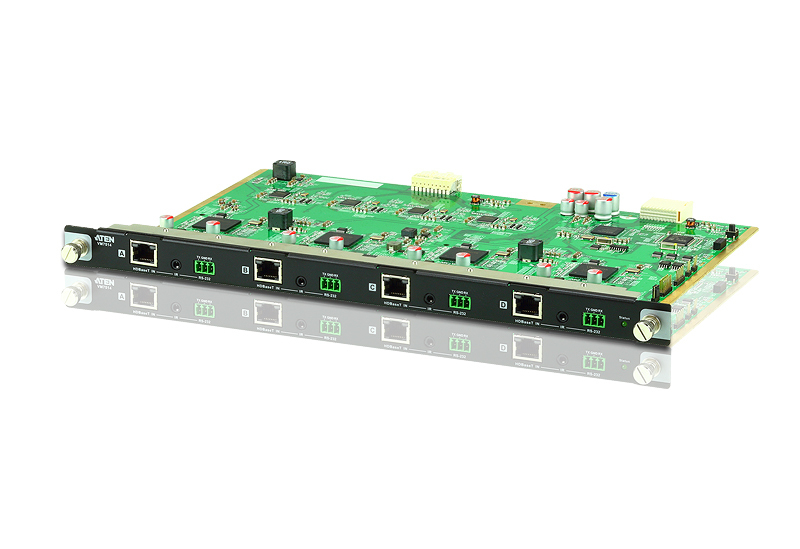

ATEN 4-Port HDBaseT Input Board for VM1600 / VM3200
ATEN 4-Port HDBaseT Input Board for VM1600 / VM3200, Metal, Black, Green, 4096 x 2160, 2160p, 340 MHz, 4096 x 2160 pixels
Click or hover over image to enlarge
Brand:ATEN
MPN:VM7514-AT
Part #: VM7514-AT
Power consumption (typical)
24.5 W
Material
Metal
Product colour
Black, Green
HDCP
Yes
Supported graphics resolutions
4096 x 2160
Supported video modes
2160p
Bandwidth
340 MHz
Maximum resolution
4096 x 2160 pixels
Comsys Price
$4,513.74
Save $605.08 off RRP
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 4 PORT HDBASET INPUT BOARD FOR VM1600A/VM3200
The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters connected to HDMI sources to 4 HDBaseT receivers connected to HDMI displays, and in combination with the ATEN Modular Matrix Switch provides the ability route up to 16 input and 16 output HDBaseT connections
- Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
Key features
- Audio (L/R) out: 4
- RJ-45 input ports: 4
- RS-232 ports: 4
- Material: Metal
- Product colour: Black, Green
- HDCP: Yes
- Supported graphics resolutions: 4096 x 2160
- Supported video modes: 2160p
- Bandwidth: 340 MHz
- Maximum resolution: 4096 x 2160 pixels
- Cable length: 1000 m
- Power consumption (typical): 24.5 W
- Width: 237 mm
- Height: 228 mm
- Weight: 990 g
- Length: 352 mm
- Quantity per pack: 1 pc(s)
- Packaging content: 1x VM7514 4-Port HDBaseT Input Board, 4x Terminal Block Connectors, 1x IR Transmitter, 1x IR Receiver, 1x User Instructions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
