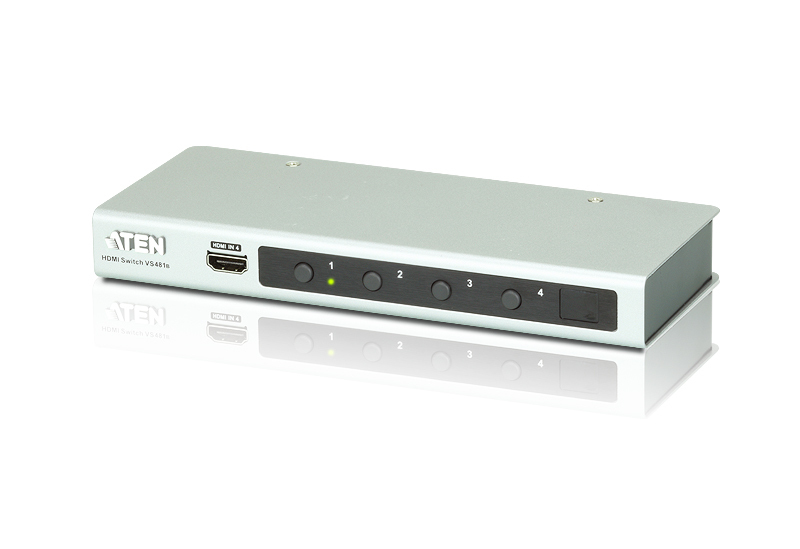

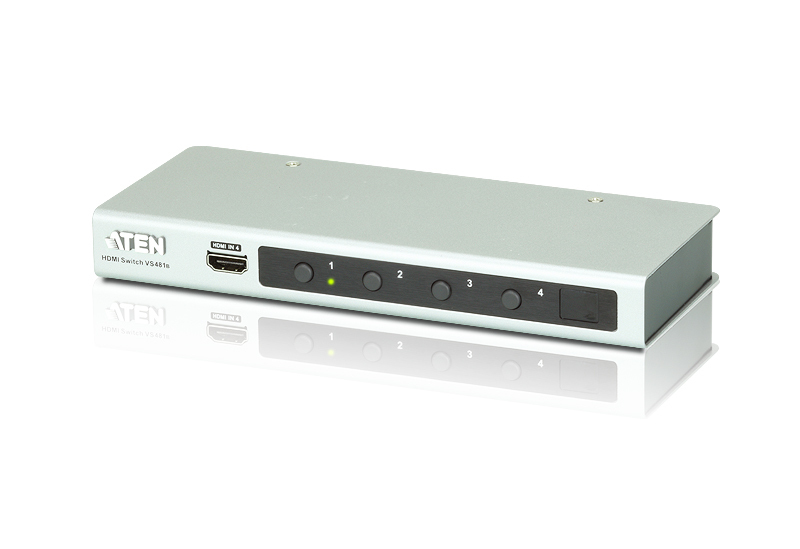

ATEN 4-Port 4K HDMI Audio/Video Switch with IR Remote Control

ATEN 4-Port 4K HDMI Audio/Video Switch with IR Remote Control, HDMI, Metal, Silver, 60 Hz, 15 m, 3840 x 2160, 4096 x 2160

ATEN 4 PORT 4K HDMI SWITCH

Click or hover over image to enlarge

Brand:ATEN
MPN:VS481B-AT-U

Part #: VS481B-AT-U

Power consumption (typical)

1.76 W

Material

Metal

Product colour

Silver

Consumer Electronics Control (CEC) support

Yes

HDCP

Yes

Maximum refresh rate

60 Hz

Maximum operating distance

15 m

Supported graphics resolutions

3840 x 2160, 4096 x 2160

Returns & Warranty

Comsys Price

$141.44

Save $13.86 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $35.36 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 4 PORT 4K HDMI SWITCH

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Key features

  • Video port type: HDMI
  • HDMI ports quantity: 5
  • HDMI in: 4
  • Number of HDMI outputs: 1
  • RS-232 ports: 1
  • DC-in jack: Yes
  • Material: Metal
  • Product colour: Silver
  • Consumer Electronics Control (CEC) support: Yes
  • HDCP: Yes
  • Maximum refresh rate: 60 Hz
  • Maximum operating distance: 15 m
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • LED indicators: Yes
  • Bandwidth: 340 MHz
  • Maximum resolution: 4096 x 2160 pixels
  • 3D: Yes
  • HD type: 4K Ultra HD
  • Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
  • Input impedance: 100 Ω
  • Output impedance: 100 Ω
  • HDCP version: 2.2
  • Power consumption (typical): 1.76 W
  • Width: 82.5 mm
  • Depth: 200 mm
  • Height: 25 mm
  • Weight: 659 g
  • Package width: 59 mm
  • Package depth: 239 mm

+ 18 more — see the Specifications tab.
