ATEN 32A 24 Outlet Switched Bank Metered PDU + Free Eco PDU Manager…

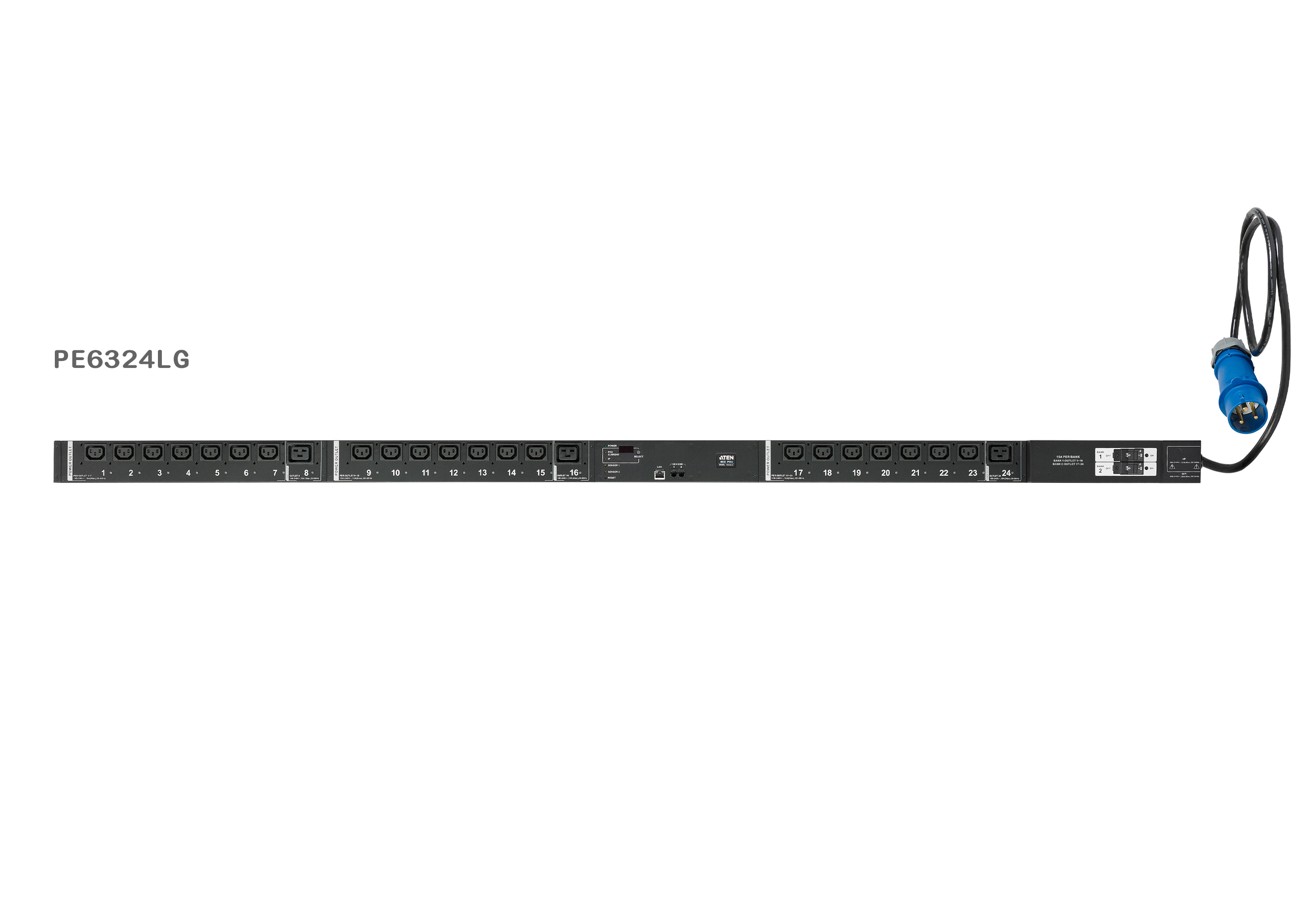

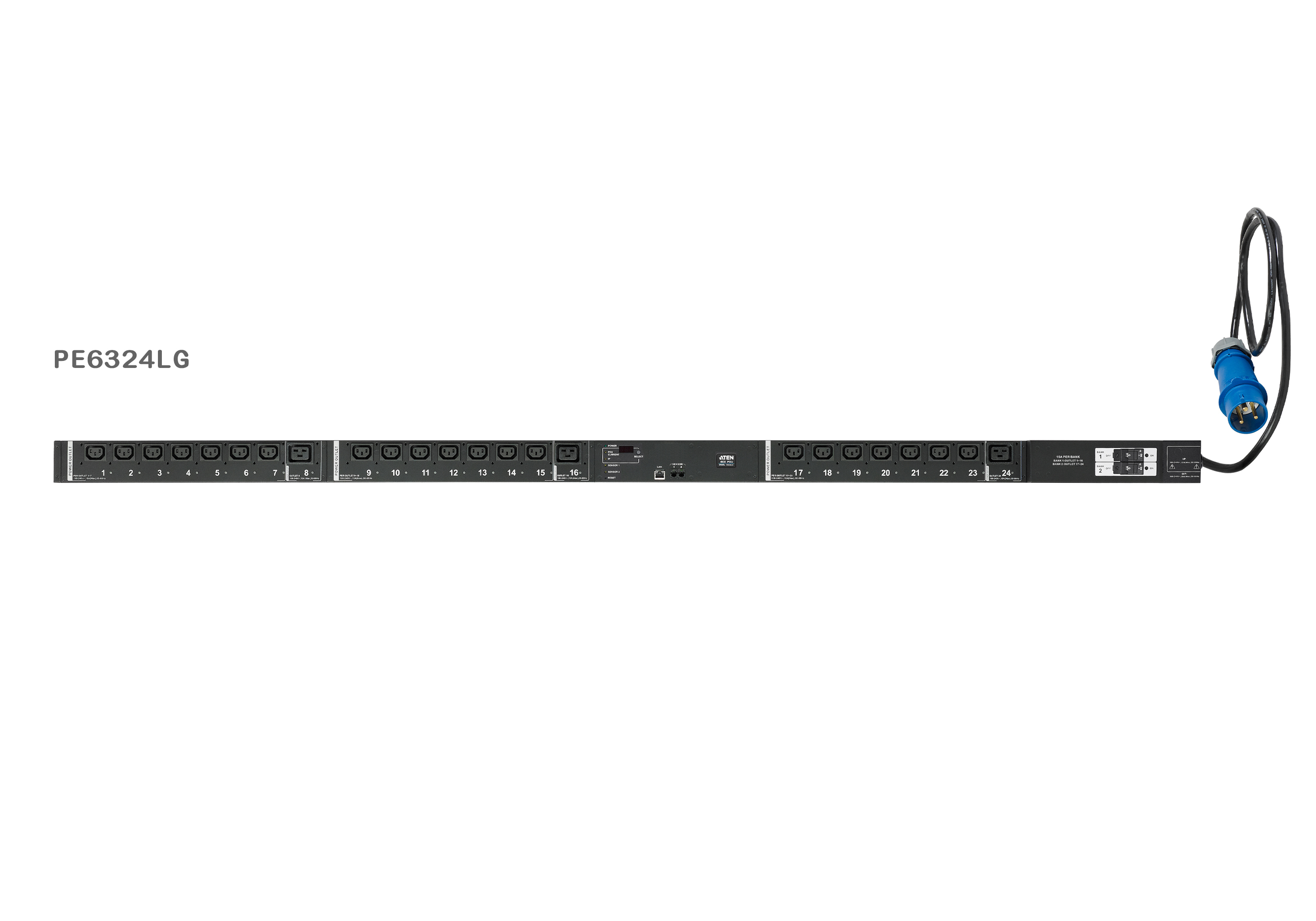

ATEN 32A 24 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software, Metered, Switched, 0U, Single-phase, Vertical, Metal, Black

ATEN 24 PORT 0U 32A SMART PDU, 21XC13 + 3XC19 OUTLETS

Click or hover over image to enlarge

Brand:ATEN
MPN:PE6324LG-AX

Part #: PE6324LG-AX

Nominal input voltage

100-240 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Nominal output voltage

100-240 V

Load capacity

7360 VA

Power protection features

Overload

PDU types

Metered, Switched

Type

Single-phase

Returns & Warranty

Comsys Price

$2,329.89

Save $121.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $582.47 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 24 PORT 0U 32A SMART PDU, 21XC13 + 3XC19 OUTLETS

The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24 AC outlets and are available in various IEC or NEMA socket configurations. The low profile series has a smaller input region on the PDU to provide more installation space for data centers.

The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.

NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN ecoDC (Energy Management Web GUI). eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

Key features

  • PDU types: Metered, Switched
  • Type: Single-phase
  • Rack capacity: 0U
  • Mounting: Vertical
  • Housing material: Metal
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler
  • Ethernet LAN (RJ-45) ports: 1
  • LED indicators: Yes
  • Cable length: 1.6 m
  • Monitoring: Humidity, Power, Temperature
  • Supported network protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2&V3, Telnet
  • Nominal input voltage: 100-240 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 32 A
  • Nominal output voltage: 100-240 V
  • Load capacity: 7360 VA
  • Power protection features: Overload
  • Compliance certificates: RoHS
  • Certification: CE, CE-LVD
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 66 mm
  • Depth: 1775 mm
  • Height: 44 mm
  • Weight: 5.76 kg
  • Manual: Yes

Inc GST

$2,329.89
