ATEN CS1942ATC-AT-U KVM switch Black

ATEN CS1942ATC-AT-U, 4096 x 2160 pixels, 4K Ultra HD, 17.8 W, Black

ATEN 2-PORT USB 3.0 4K DISPLAYPORT DUAL DISPLAY KVMP SWITCH FOR ATC

Click or hover over image to enlarge

Brand:ATEN
MPN:CS1942ATC-AT-U

Part #: CS1942ATC-AT-U


Power source

DC

Input voltage

12 V

Power consumption (typical)

17.8 W

Product colour

Black

Housing material

Metal

LED indicators

Yes

Push button

Yes

Hot keys

Yes


Returns & Warranty

Comsys Price

$2,800.24

Save $462.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $700.06 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

ATEN 2-PORT USB 3.0 4K DISPLAYPORT DUAL DISPLAY KVMP SWITCH FOR ATC

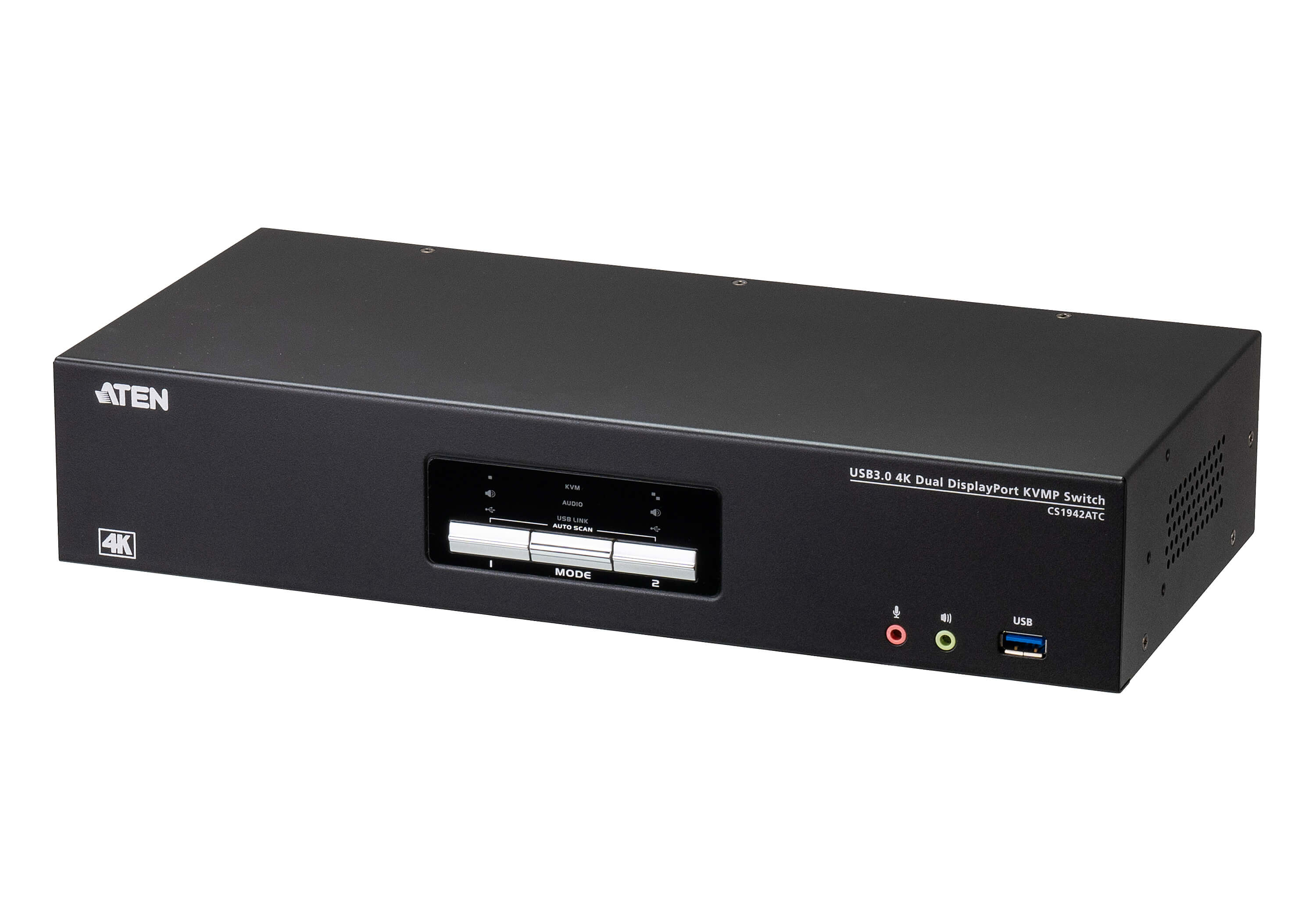

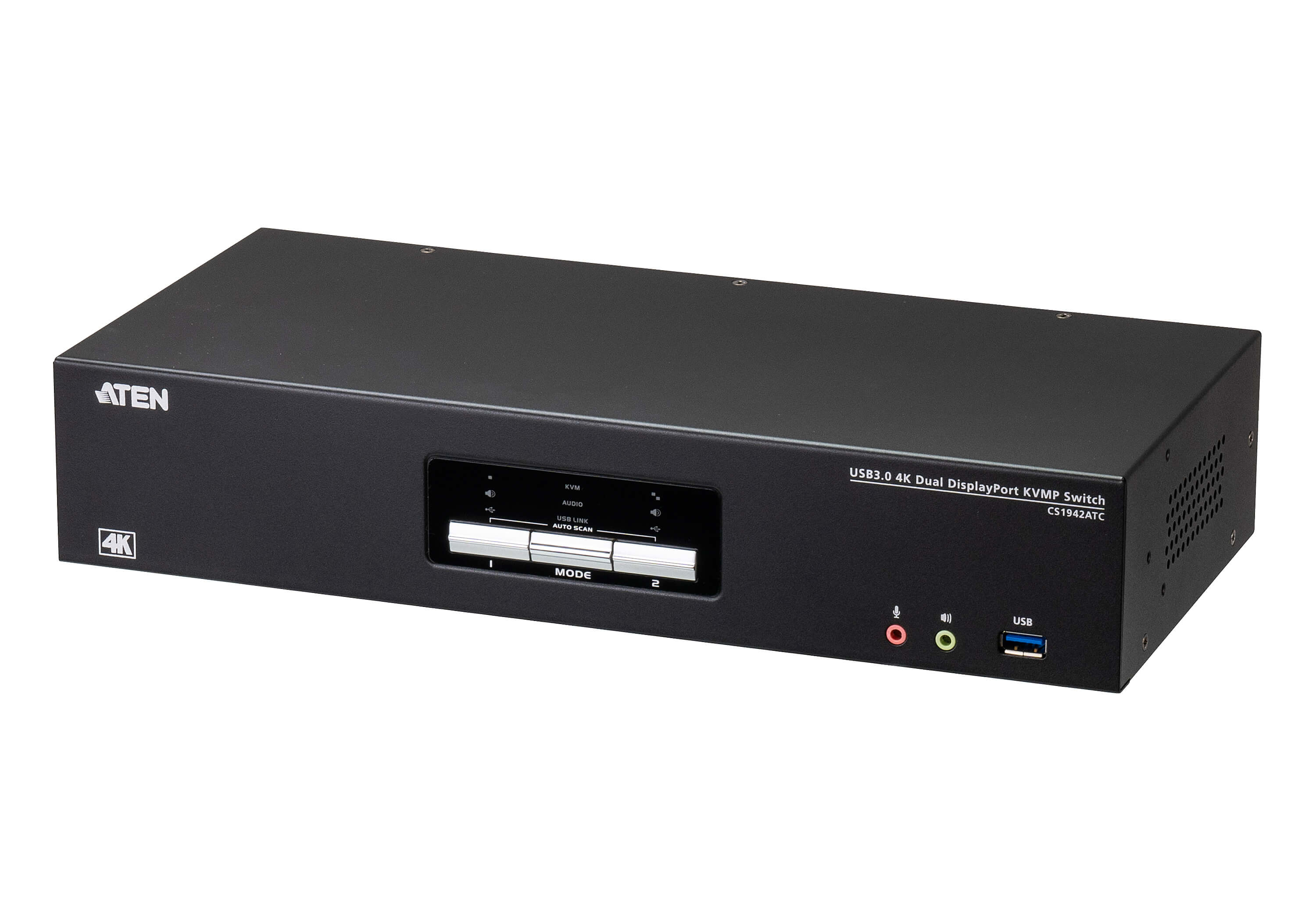

The ATEN CS1942ATC 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes. Incorporating dual display capability, users can enjoy a wider screen and easy switch between the two DisplayPort systems.

The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.

With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.

The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.

Key features

  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • VGA (D-Sub) ports quantity: 3
  • DisplayPorts quantity: 4
  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub)
  • Console USB ports quantity: 2
  • Console DisplayPorts ports quantity: 2
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: Micro-USB, USB Type-A
  • Audio connections: Yes
  • Headphone outputs: 2
  • Number of microphone inputs: 2
  • RJ-11 ports quantity: 1
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: Yes
  • Power source: DC
  • Input voltage: 12 V
  • Power consumption (typical): 17.8 W

+ 8 more — see the Specifications tab.
