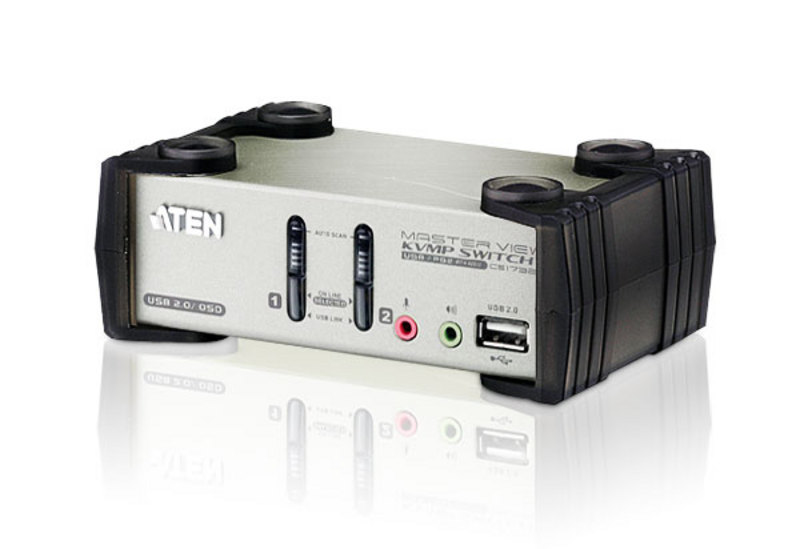

ATEN CS1732B-AT-U KVM switch Black, Metallic
ATEN CS1732B-AT-U, 2048 x 1536 pixels, QXGA, 2.5 W, Black, Metallic
Click or hover over image to enlarge
Brand:ATEN
MPN:CS1732B-AT-U
Part #: CS1732B-AT-U
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
2.5 W
Product colour
Black, Metallic
Housing material
Metal
Cable length
1.2 m
LED indicators
Yes
Push button
Yes
Comsys Price
$227.69
Save $21.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $56.92 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

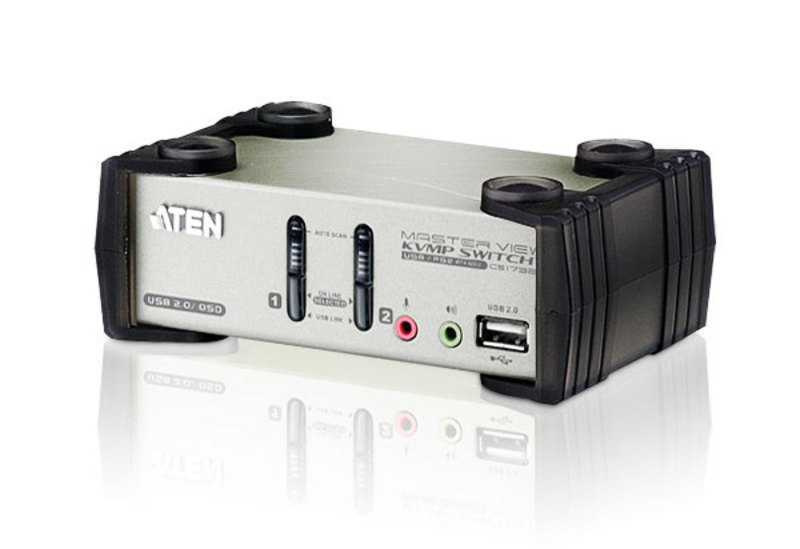

ATEN 2 PORT USB 2.0 VGA KVMP SWITCH WITH OSD AND AUDIO
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
Key features
- Number of computers controlled: 2
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- Console ports: 3.5mm headphone, 3.5mm mic
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- Audio connections: Yes
- Headphone outputs: 4
- Number of microphone inputs: 4
- DC-in jack: Yes
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,255 s
- DDC2B support: Yes
- Firmware upgradeable: Yes
- Product colour: Black, Metallic
- Housing material: Metal
- Cable length: 1.2 m
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- On Screen Display (OSD): Yes
- Power source: DC
- Input voltage: 5.3 V
- Power consumption (typical): 2.5 W
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Operating temperature (T-T): 0 - 50 °C
+ 13 more — see the Specifications tab.
