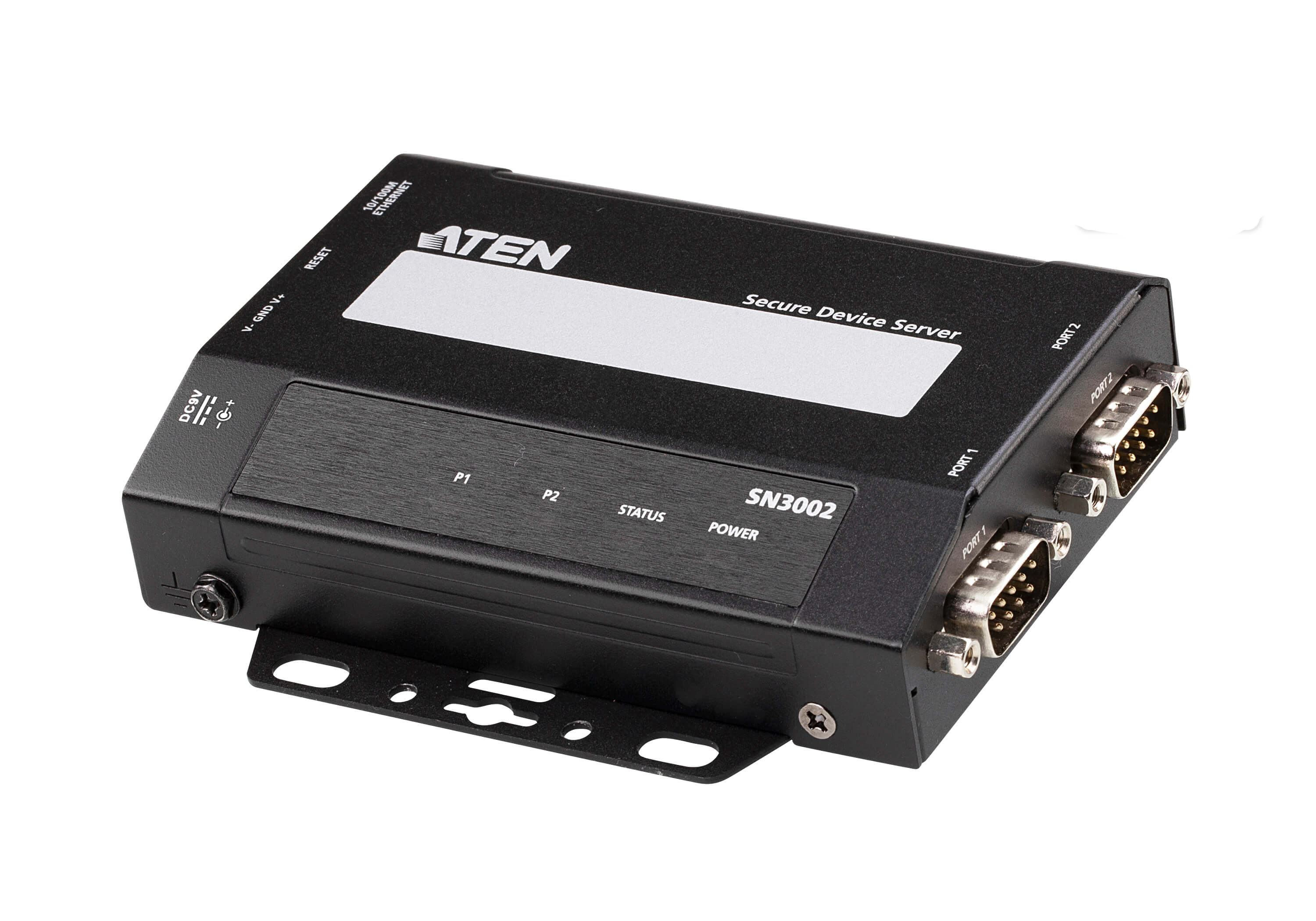

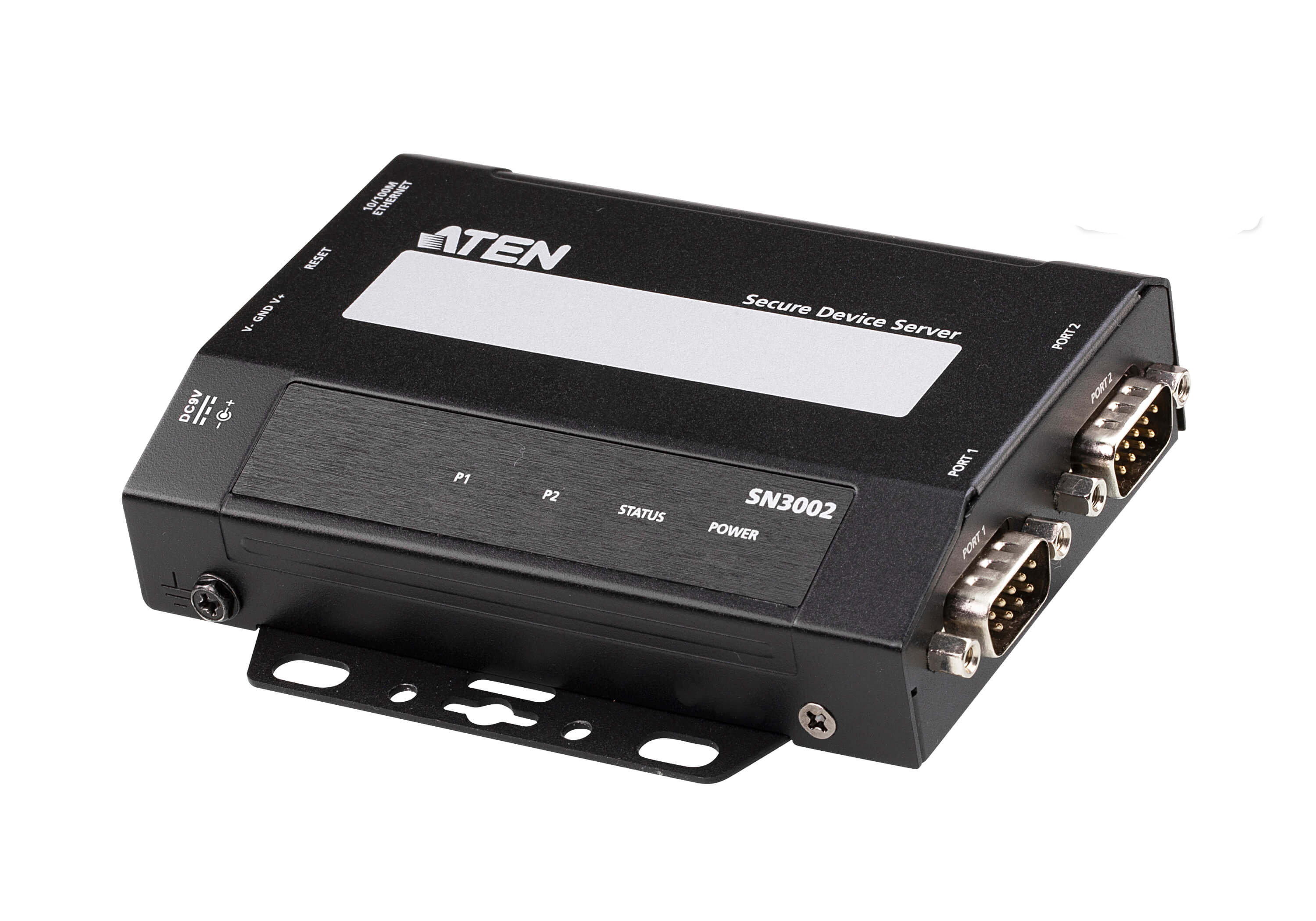

ATEN SN3002-AX-U serial server RS-232
ATEN SN3002-AX-U, 10/100Base-T(X), DC, 9/48 V, RSA, SNMP, SNMPv2, SSH, TLS, LAN, Power, Status, 210 g
Click or hover over image to enlarge
Brand:ATEN
MPN:SN3002-AX-U
Part #: SN3002-AX-U
Power source type
DC
Input voltage
9/48 V
Product colour
Black
Housing material
Metal
Safety
UL 60950-1, UL 62368-1
Security algorithms
RSA, SNMP, SNMPv2, SSH, TLS
LED indicators
LAN, Power, Status
User guide
Yes
Comsys Price
$400.19
Save $30.38 off RRP
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
Four payments of $100.05 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 2-PORT RS-232 SECURE DEVICE SERVER
ATEN Altusen SN3000 series Secure Device Servers are external IP-based network devices that securely connect legacy serial RS-232 devices to an Ethernet network to be accessed remotely from a computer located anywhere, allowing you to expand the number of serial ports for any host computer over a network.
The SN3000 series is especially suited for industrial process control applications, given the abundant use of the Supervisory Control and Data Acquisition (SCADA) systems across many industries for collecting data from PLCs, meters, and sensors via serial ports. The SN3000 series bidirectionally translates data between serial and Ethernet formats, and facilitates access to the data from all data collection instruments from local and remote sites through an Ethernet network.
The SN3000 series has a number of useful operation modes. It supports secure TCP server / client, secure serial tunneling server / client, secure Real COM, and console management modes for security-critical applications, such as telecom, access control, and remote site management.
The SN3000 series is especially suited for industrial process control applications, given the abundant use of the Supervisory Control and Data Acquisition (SCADA) systems across many industries for collecting data from PLCs, meters, and sensors via serial ports. The SN3000 series bidirectionally translates data between serial and Ethernet formats, and facilitates access to the data from all data collection instruments from local and remote sites through an Ethernet network.
The SN3000 series has a number of useful operation modes. It supports secure TCP server / client, secure serial tunneling server / client, secure Real COM, and console management modes for security-critical applications, such as telecom, access control, and remote site management.
Key features
- Serial ports quantity: 2
- Serial interface type: RS-232
- Isolation: 1.5 kV
- Ethernet LAN data rates: 10,100 Mbit/s
- Baud rate: 921.6 Kbit/s
- RS-232 signals: CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD
- Data bits: 5, 6, 7, 8
- Flow Control type: DTR/DSR, RTS/CTS, XON/XOFF
- Parity bit: Even, Mark, No, Odd, Space
- Stop bits: 1, 1.5, 2
- Compliance certificates: RoHS
- Certification: EMC: EN 55032/35 EMI: CISPR 32, FCC 15B A EMS: IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-1 RoHS
- Ethernet LAN (RJ-45) ports: 1
- Cabling technology: 10/100Base-T(X)
- Power source type: DC
- Input voltage: 9/48 V
- Security algorithms: RSA, SNMP, SNMPv2, SSH, TLS
- LED indicators: LAN, Power, Status
- Weight: 210 g
- Dimensions (WxDxH): 98 x 117 x 26 mm
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Product colour: Black
- Housing material: Metal
- Safety: UL 60950-1, UL 62368-1
- User guide: Yes
- AC adapter included: Yes
