ATEN VM1600A video switch
ATEN VM1600A, Metal, Black, 3840 x 2160, 4096 x 2160, 15.2 Gbit/s, 4096 x 2160 pixels, 4K Ultra HD
Click or hover over image to enlarge
Brand:ATEN
MPN:VM1600A-AT-U
Part #: VM1600A-AT-U
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Power consumption (typical)
460 W
Material
Metal
Product colour
Black
HDCP
Yes
Supported graphics resolutions
3840 x 2160, 4096 x 2160
Bandwidth
15.2 Gbit/s
Comsys Price
$12,393.54
Save $1,642.45 off RRP
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

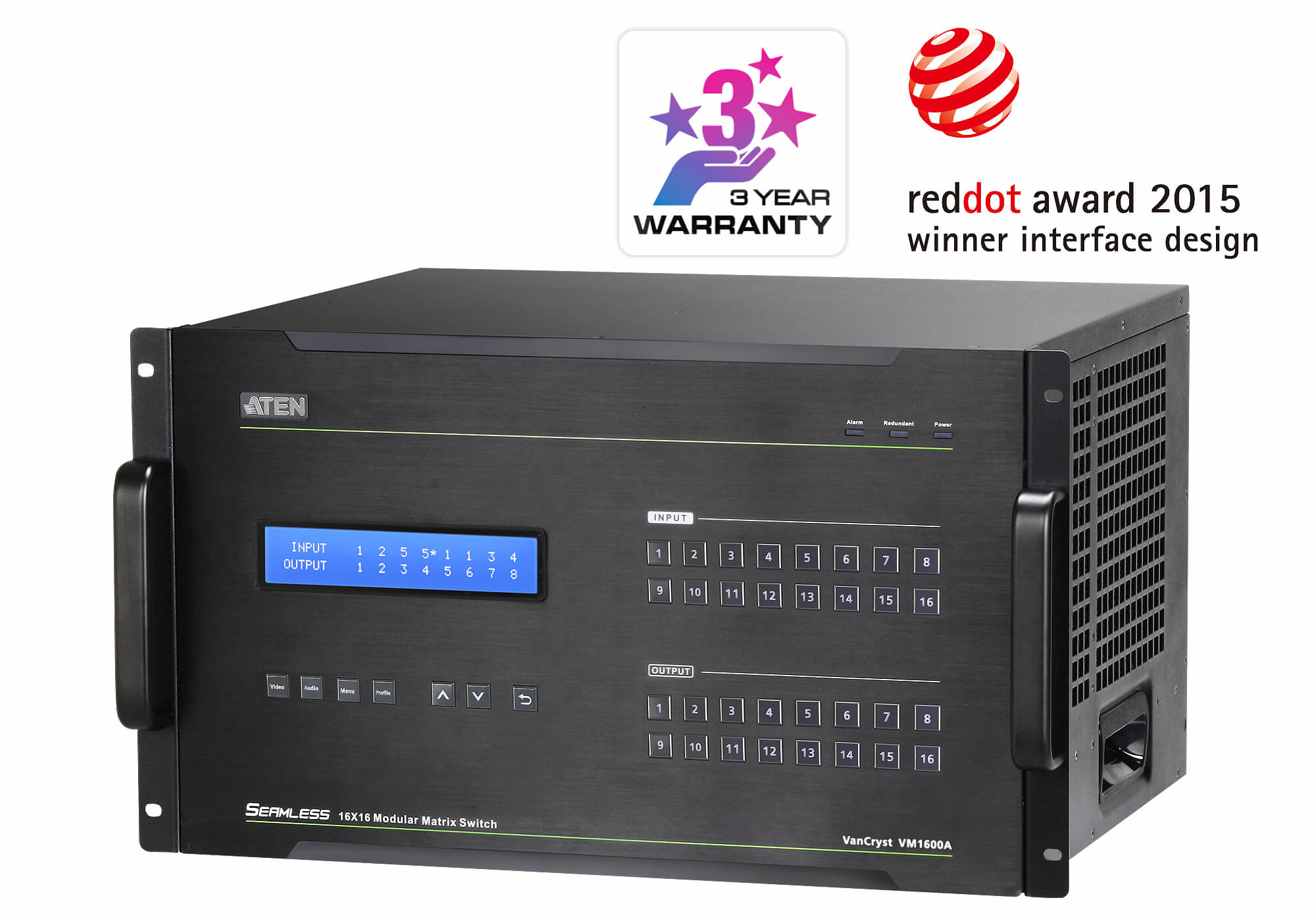

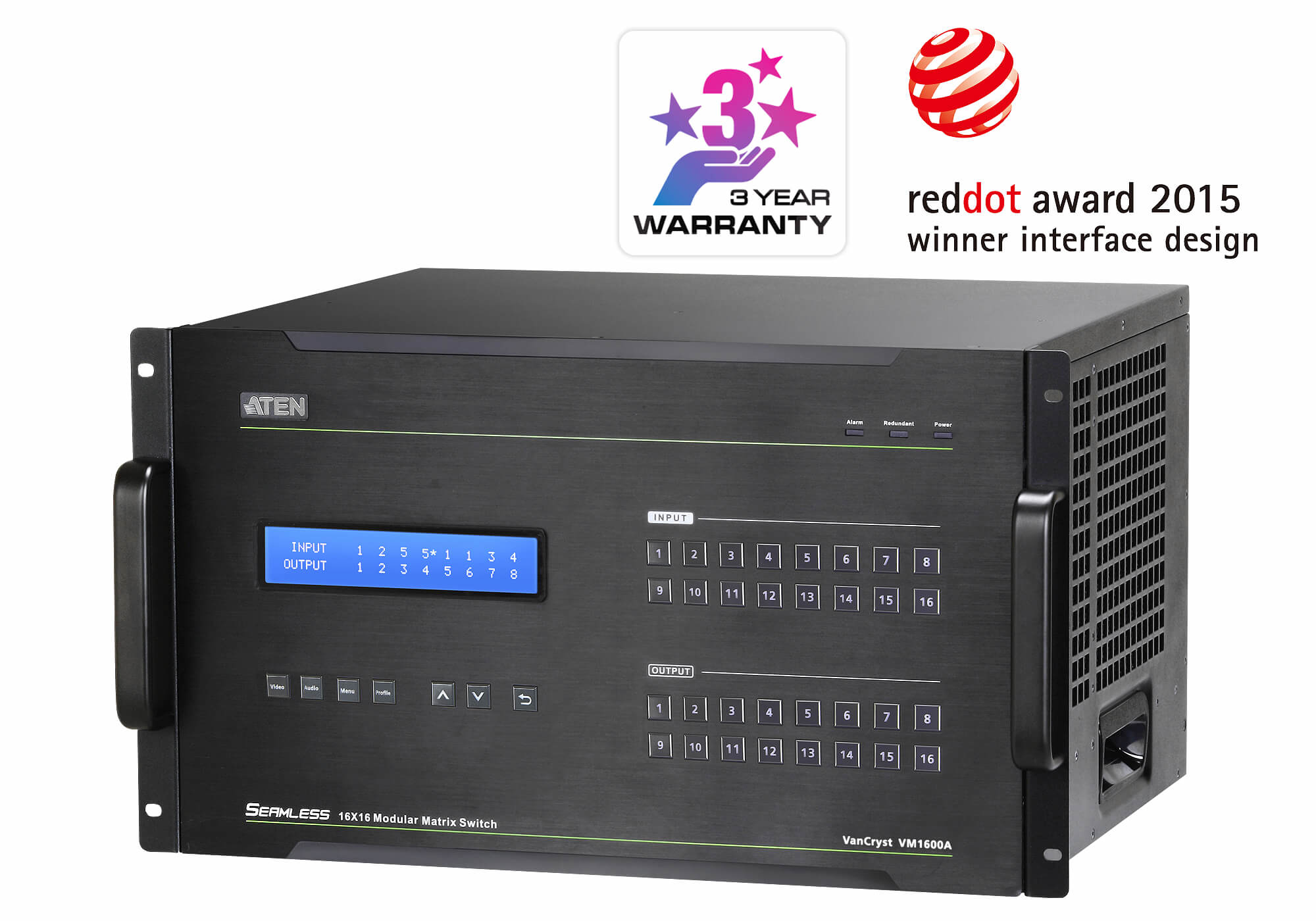

ATEN 16X16 MODULAR DIGITAL MATRIX WITH SCALER
The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
Key features
- HDMI ports quantity: 32
- RJ-45 input ports: 1
- RS-232 ports: 1
- Material: Metal
- Product colour: Black
- HDCP: Yes
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 15.2 Gbit/s
- LED indicators: Yes
- Maximum resolution: 4096 x 2160 pixels
- 3D: Yes
- HD type: 4K Ultra HD
- Rack capacity: 6U
- HDCP version: 2.2
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- Power consumption (typical): 460 W
- Width: 482 mm
- Depth: 466.6 mm
- Height: 265.9 mm
- Weight: 15.1 kg
- User guide: Yes
- Cables included: AC
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
