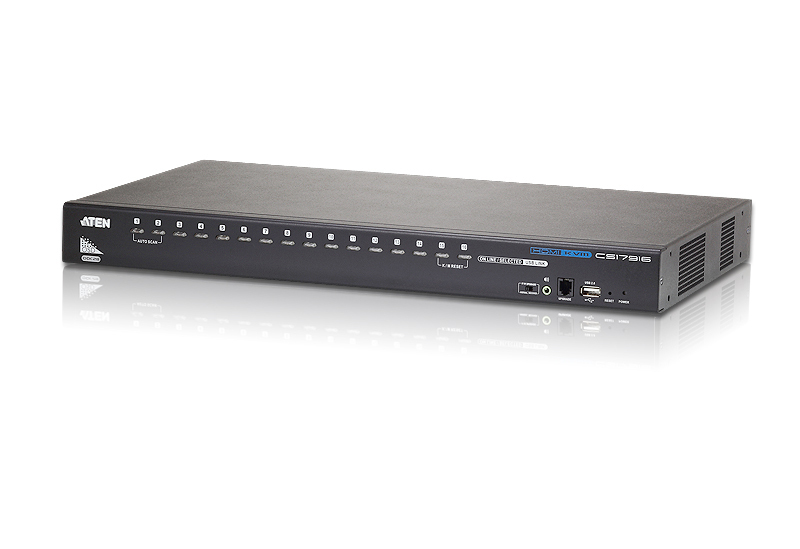

ATEN CS17916-AT-U KVM switch Black
ATEN CS17916-AT-U, 1920 x 1200 pixels, WUXGA, 8.66 W, Black
Click or hover over image to enlarge
Brand:ATEN
MPN:CS17916-AT-U
Part #: CS17916-AT-U
Power source
DC
Input voltage
5 V
Power consumption (typical)
8.66 W
Product colour
Black
Housing material
Metal
LED indicators
Yes
Built-in display
No
HD type
WUXGA
Comsys Price
$1,668.64
Save $174.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $417.16 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

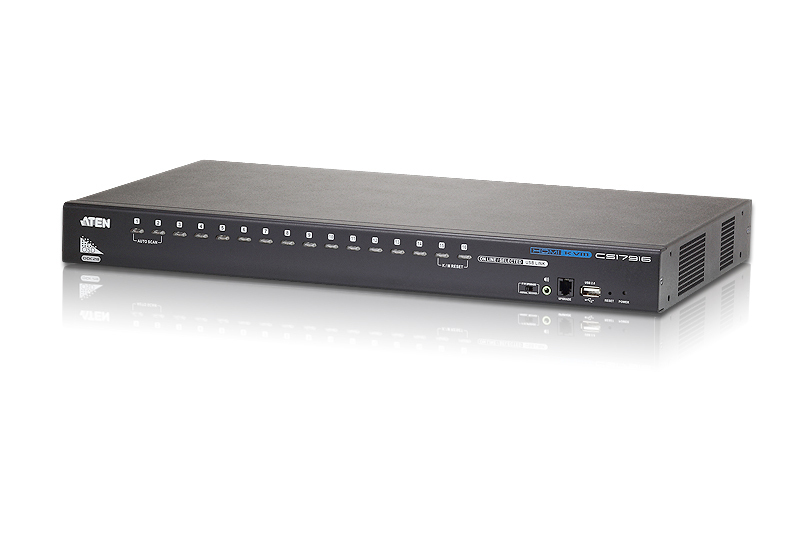

ATEN 16 PORT USB 2.0 HDMI KVMP SWITCH
The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
Key features
- Number of computers controlled: 16
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 16
- USB 2.0 Type-B ports quantity: 16
- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- Audio connections: Yes
- Headphone outputs: 17
- Number of microphone inputs: 1
- DC-in jack: Yes
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,255 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5 V
- Power consumption (typical): 8.66 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 432.4 mm
- Depth: 257.2 mm
+ 8 more — see the Specifications tab.
