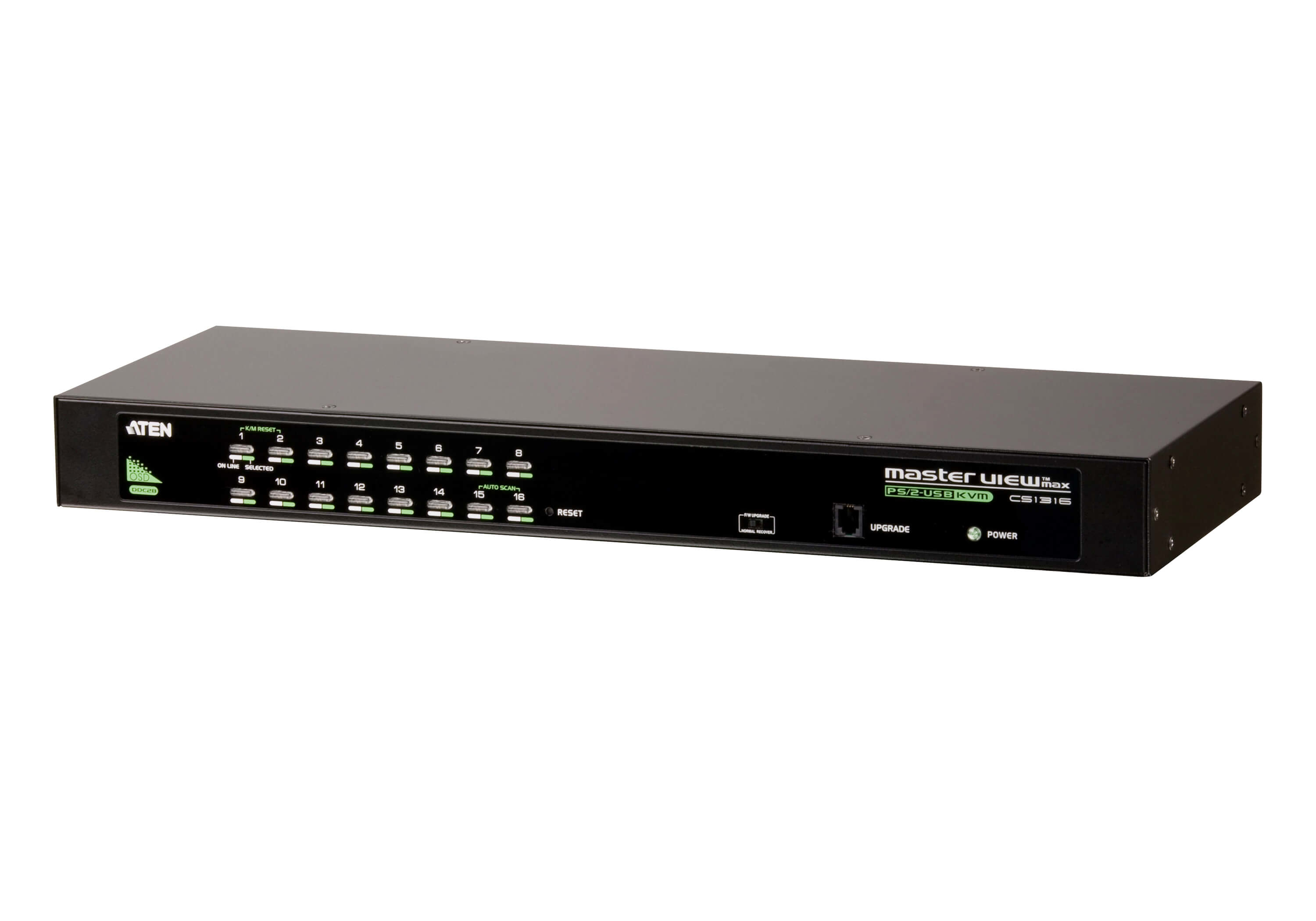

ATEN CS1316-AT-U KVM switch Rack mounting Black

ATEN CS1316-AT-U, 2048 x 1536 pixels, QXGA, Rack mounting, 6.5 W, 1U, Black

ATEN 16 PORT PS/2-USB VGA KVMP SWITCH

Click or hover over image to enlarge

Brand:ATEN
MPN:CS1316-AT-U

Part #: CS1316-AT-U

Power source

DC

Power consumption (typical)

6.5 W

Rack mounting

Yes

Rack capacity

1U

Product colour

Black

Housing material

Metal

Cascadable

Yes

LED indicators

Yes

Returns & Warranty

Comsys Price

$686.54

Save $71.00 off RRP

Only 2 left in stock

Order soon to avoid backorder

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $171.64 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 16 PORT PS/2-USB VGA KVMP SWITCH

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Key features

  • Number of computers controlled: 256
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Console ports: VGA (D-Sub)
  • HD type: QXGA
  • Maximum resolution: 2048 x 1536 pixels
  • Scan interval: 1,255 s
  • DDC2B support: Yes
  • Hot-Plug support: Yes
  • Firmware upgradeable: Yes
  • Rack mounting: Yes
  • Rack capacity: 1U
  • Product colour: Black
  • Housing material: Metal
  • Cascadable: Yes
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • On Screen Display (OSD): Yes
  • Power source: DC
  • Power consumption (typical): 6.5 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 437.2 mm

+ 11 more — see the Specifications tab.
