ATEN CS1716I-AT-U KVM switch Rack mounting Black
ATEN CS1716I-AT-U, 2048 x 1536 pixels, Ethernet LAN, QXGA, Rack mounting, 11 W, 1U
Click or hover over image to enlarge
Brand:ATEN
MPN:CS1716I-AT-U
Part #: CS1716I-AT-U
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
11 W
Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes
Comsys Price
$2,065.39
Save $89.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $516.35 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 16 PORT PS/2-USB 2.0 KVMP SWITCH OVER IP

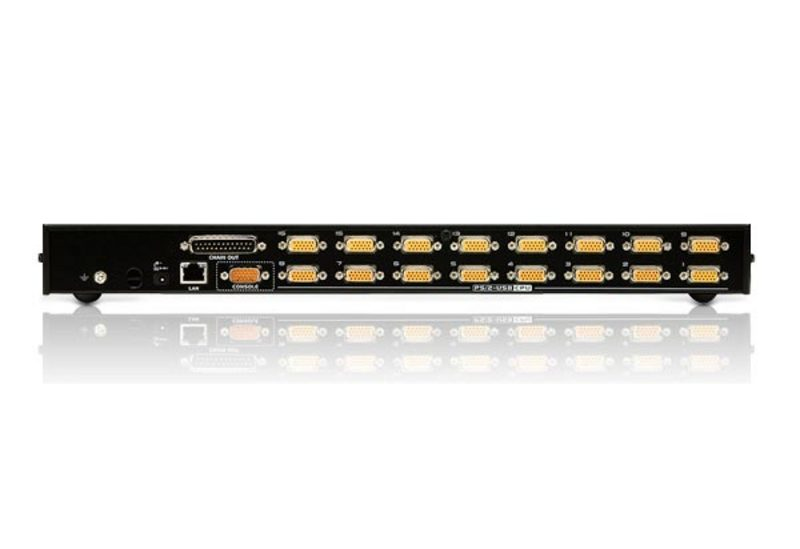

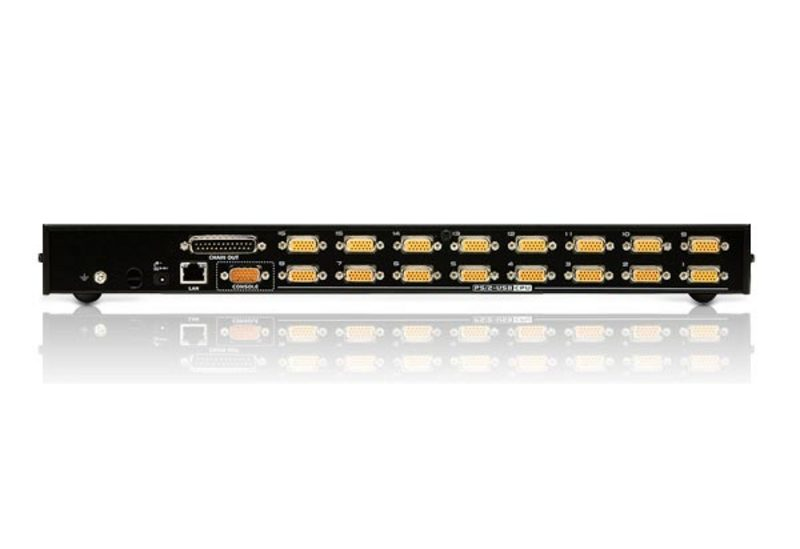

The CS1716i is a 16-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1716i works platform independent and supports e.g. Windows, Linux, MAC, SUN
The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256.
1x CS1716i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256.
1x CS1716i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key features
- Number of computers controlled: 256
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- VGA (D-Sub) ports quantity: 16
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 1
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Security algorithms: 128-bit RC4, SSL/TLS
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,255 s
- DDC2B support: Yes
- HDCP: Yes
- Hot-Plug support: Yes
- Daisy chain: Yes
- Number of users: 32 user(s)
- Firmware upgradeable: Yes
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- On Screen Display (OSD): Yes
- Power source: DC
+ 23 more — see the Specifications tab.
