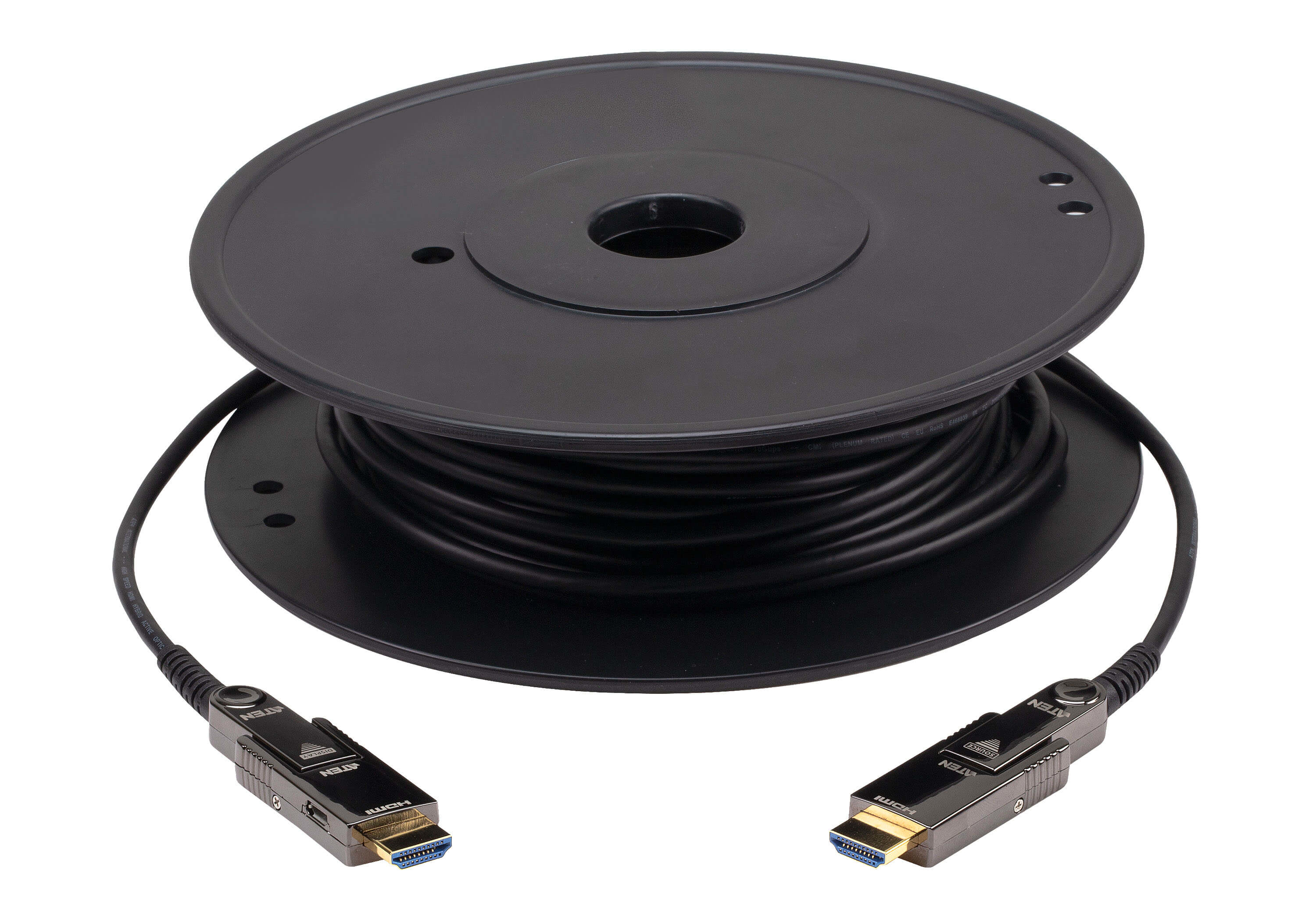

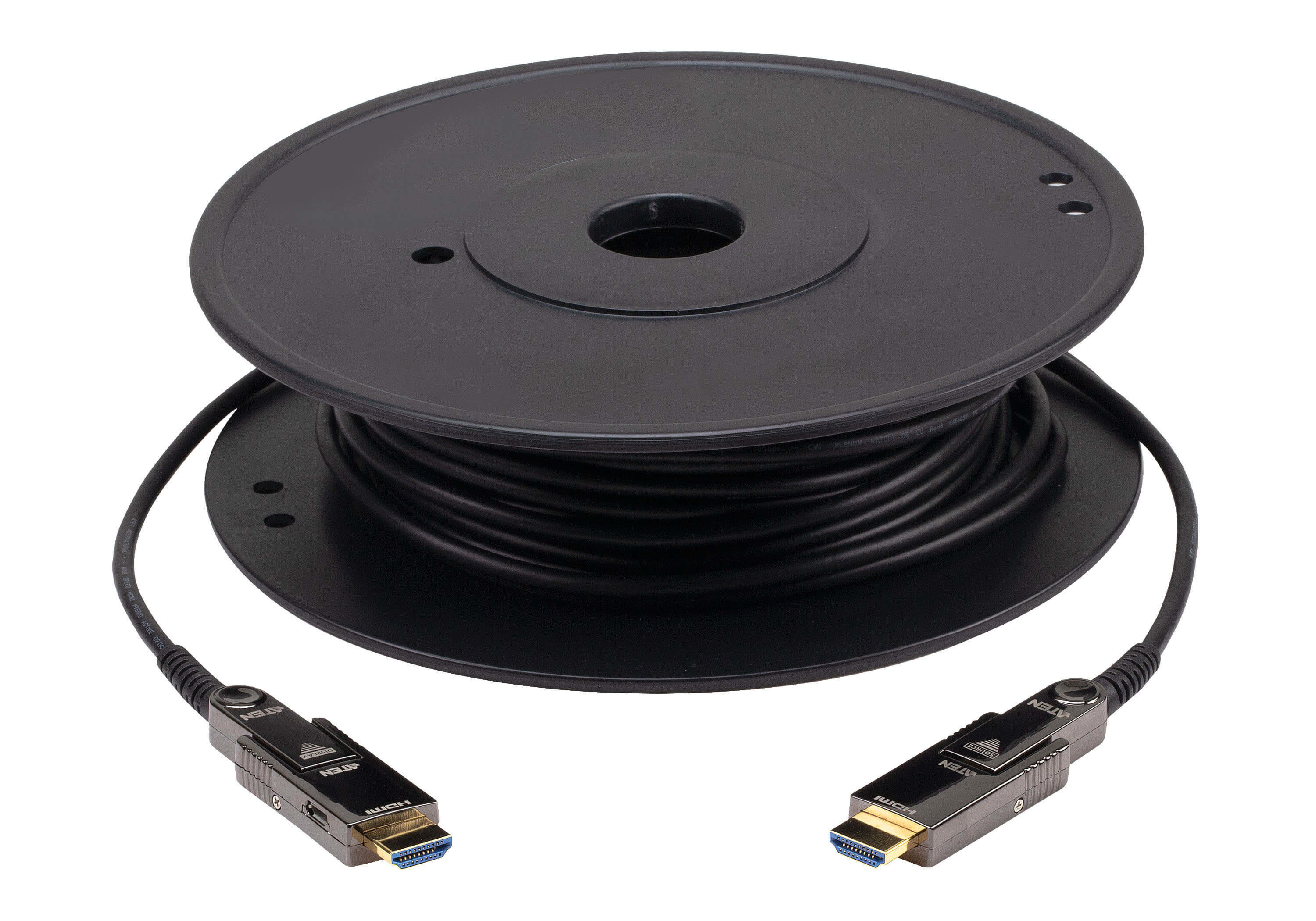

ATEN 10M True 4K HDMI Active Optical Cable

ATEN 10M True 4K HDMI Active Optical Cable, 10 m, HDMI Type D (Micro), HDMI Type D (Micro), 3D, 18 Gbit/s, Black

ATEN 10M TRUE 4K HDMI ACTIVE OPTICAL CABLE WITH PLUGGABLE GENDER CONNECTORS

Click or hover over image to enlarge

Brand:ATEN
MPN:VE7831A-AT

Part #: VE7831A-AT


Cable length

10 m

Connector 1

HDMI Type D (Micro)

Connector 2

HDMI Type D (Micro)

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Product colour

Black


Returns & Warranty

Comsys Price

$279.44

Save $31.87 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Need help? Call 0800 664 554
Afterpay

Four payments of $69.86 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

ATEN 10M TRUE 4K HDMI ACTIVE OPTICAL CABLE WITH PLUGGABLE GENDER CONNECTORS

ATEN VE7831A optical cables utilize AOC technology that enable conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 10m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions.This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar.

Engineered to meet the latest trend of integrator-friendly design, the VE7831A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

Key features

  • Cable length: 10 m
  • Connector 1: HDMI Type D (Micro)
  • Connector 2: HDMI Type D (Micro)
  • Connector 1 gender: Male
  • Connector 2 gender: Male
  • Connector 1 form factor: Straight
  • Connector 2 form factor: Straight
  • Product colour: Black
  • 3D: Yes
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
  • Pull-resistant connector(s): Yes
  • Pull-off force: 10 kg
  • Audio Return Channel (ARC): Yes
  • HDMI Ethernet channel: Yes
  • HDCP: Yes
  • HDCP version: 2.2
  • Data transfer rate: 18 Gbit/s
  • High Dynamic Range (HDR) supported: Yes
  • Bandwidth: 600 MHz
  • Maximum refresh rate: 60 Hz
  • Connector contacts plating: Gold
  • Cable material: Copper
  • Cable jacket material: Plenum (OFNP)
  • Bending radius (min): 2 cm
  • Cable shielding: Aluminum mylar foil
  • Plug and Play: Yes
  • Colour sampling: 4:4:4
  • Extended display identification data (EDID): Yes
  • Operating temperature (T-T): 0 - 50 °C

+ 21 more — see the Specifications tab.

Inc GST

$279.44
