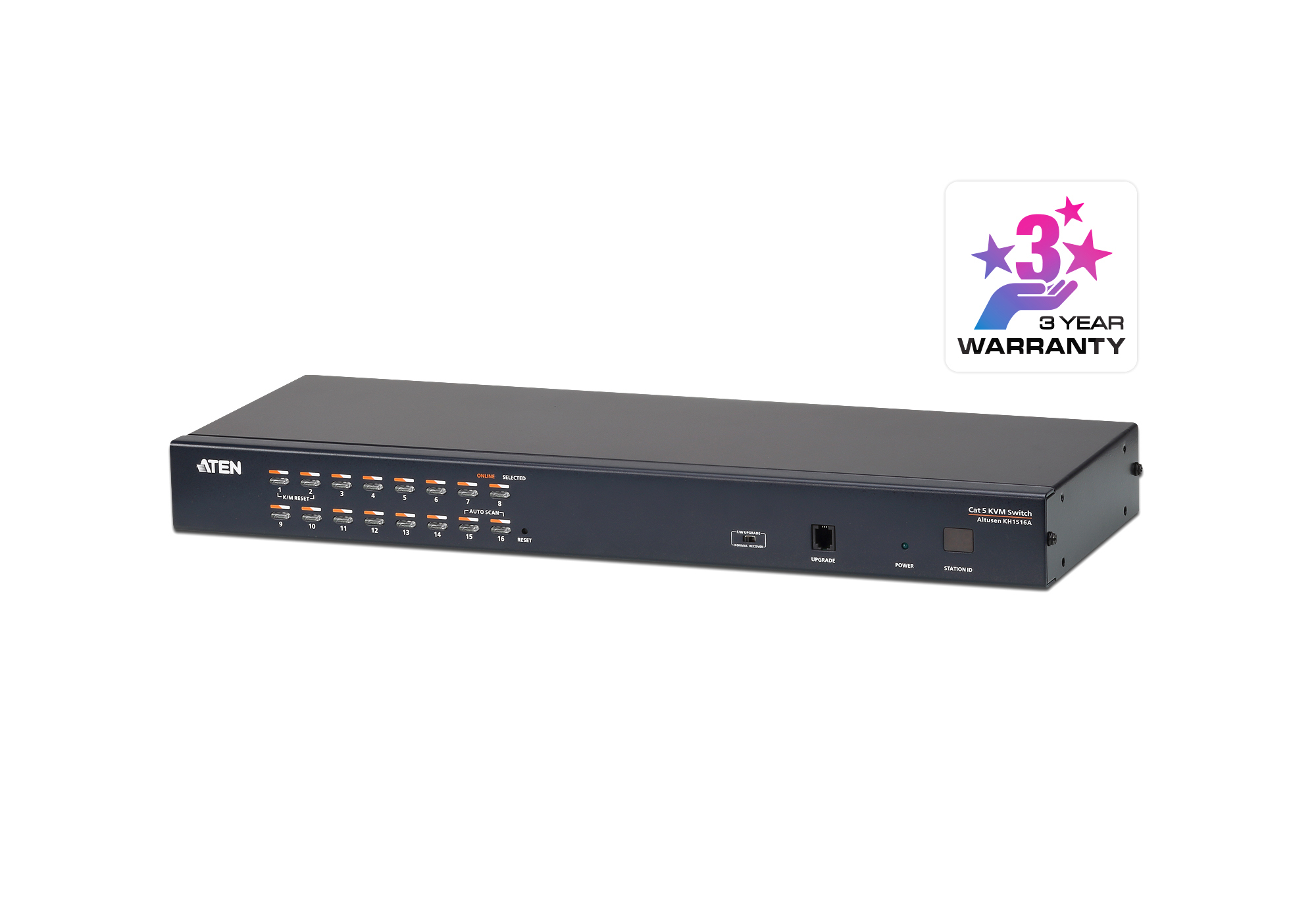

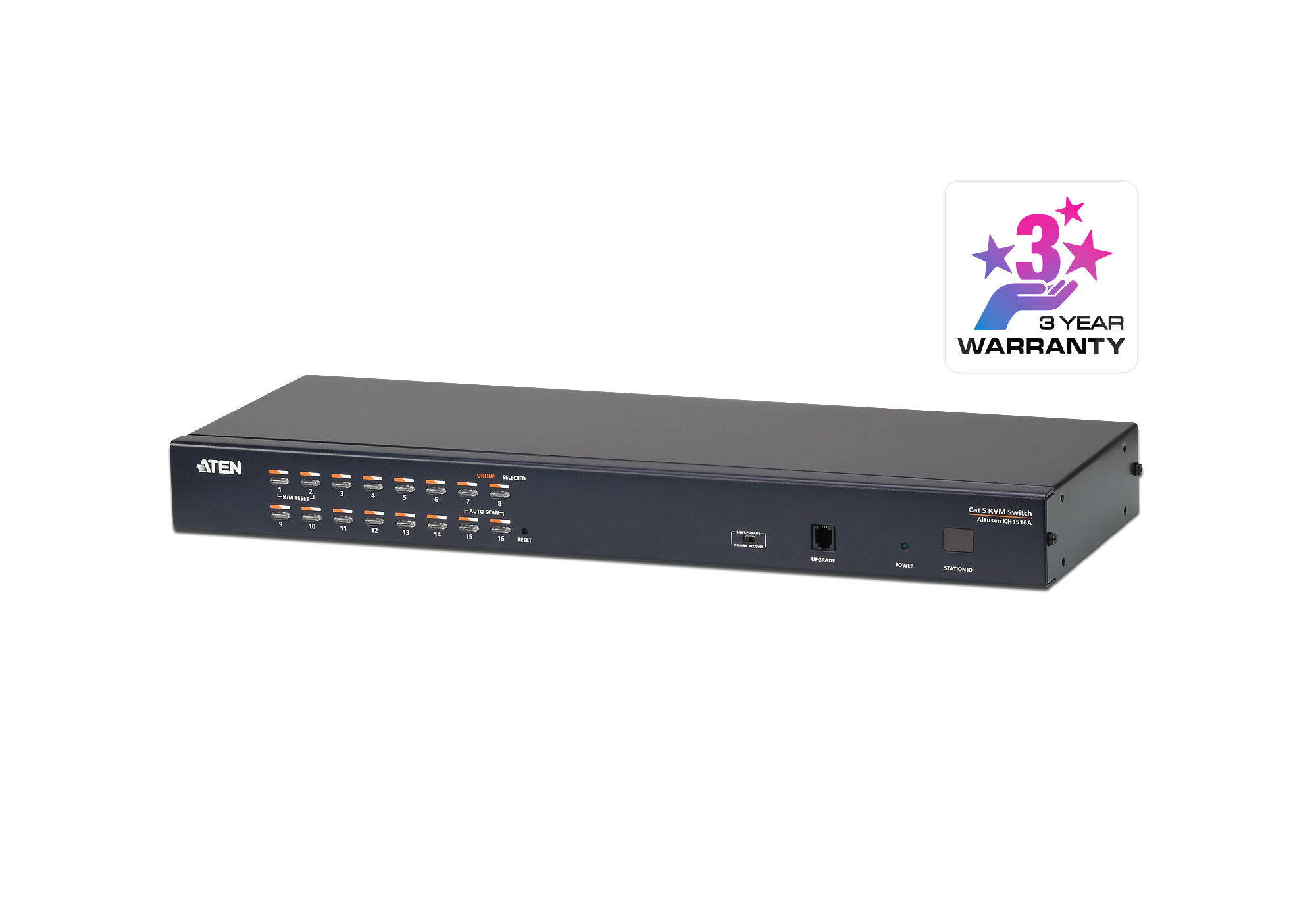

ATEN 16-Port Cat 5e/6 KVM Switch
ATEN 16-Port Cat 5e/6 KVM Switch, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 5.3 W, Black
Click or hover over image to enlarge
Brand:ATEN
MPN:KH1516A-AX-U
Part #: KH1516A-AX-U
Power source
AC
Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1 A
Power consumption (typical)
5.3 W
Product colour
Black
Housing material
Metal
LED indicators
Yes
Comsys Price
$1,246.59
Save $76.41 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $311.65 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM 16 PORT WITH DAISY-CHAIN PORT
The KH1516A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 16 computers. By daisy chaining up to 31 additional switches, as many as 512 computers can be controlled from the original KVM console.
1x KH1516A 16-port Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
1x KH1516A 16-port Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
Key features
- Number of computers controlled: 16
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- Console ports: PS/2, USB A, VGA (D-Sub)
- Console USB ports quantity: 2
- USB connector type: USB Type-A
- PS/2 ports quantity: 2
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 16
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,255 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- Power source: AC
- Input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 1 A
- Power consumption (typical): 5.3 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 437.2 mm
+ 16 more — see the Specifications tab.
