APC Symmetra PX Power Module, 10/16kW, 400V
APC Symmetra PX Power Module, 10/16kW, 400V, Power module, Black, Grey, 63 dB, 16000 VA, 16000 W, 400 V
Click or hover over image to enlarge
Brand:APC
MPN:1559328
Part #: 1559328
Load capacity
16000 VA
Capacity
16000 W
Input voltage
400 V
Input frequency
40/70 Hz
Output voltage
400 V
Number of phases
3
Maximum total current draw per phase
33 A
Output power capacity
16 kVA
Comsys Price
$15,222.54
Save $1,063.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

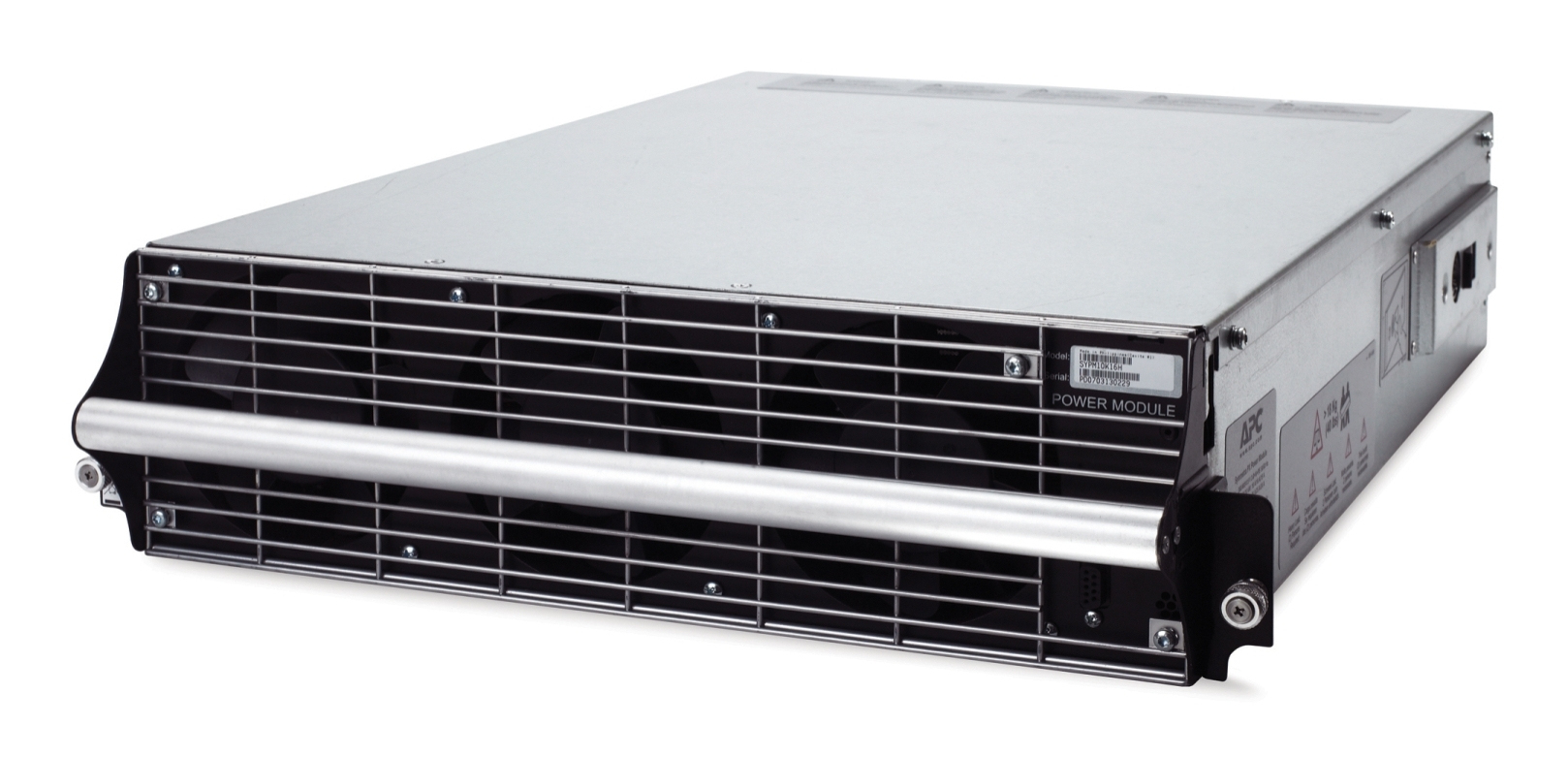

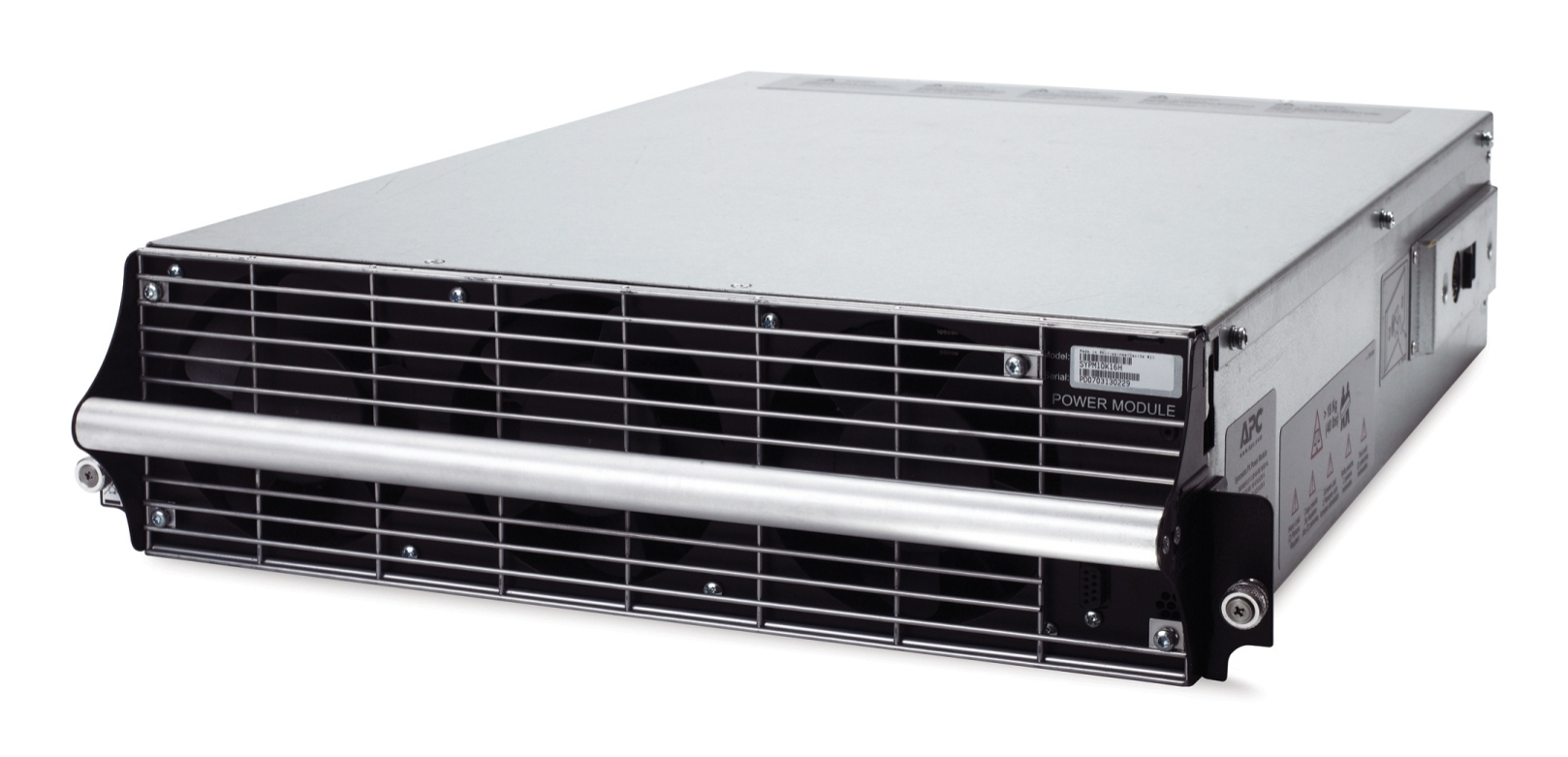

APC SYMMETRA PX POWER MODULE
A 16 kW high efficiency power module for the Symmetra PX 160 kW & PX 48 kW. This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10 kW of power protection if installed in a PX 80 kW, 40 KW or 20 kW all-in-one.
Key features
- Product type: Power module
- Product colour: Black, Grey
- Noise level: 63 dB
- Load capacity: 16000 VA
- Capacity: 16000 W
- Input voltage: 400 V
- Input frequency: 40/70 Hz
- Output voltage: 400 V
- Number of phases: 3
- Maximum total current draw per phase: 33 A
- Output power capacity: 16 kVA
- Certification: CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 1015 m
- Non-operating altitude: 0 - 4572 m
- Width: 483 mm
- Depth: 70 mm
- Height: 132 mm
- Weight: 28.5 kg
- Package width: 700 mm
- Package depth: 595 mm
- Package height: 225 mm
- Package weight: 59.5 kg
- Export Control Classification Number (ECCN): EAR99
- Harmonized System (HS) code: 85079080
