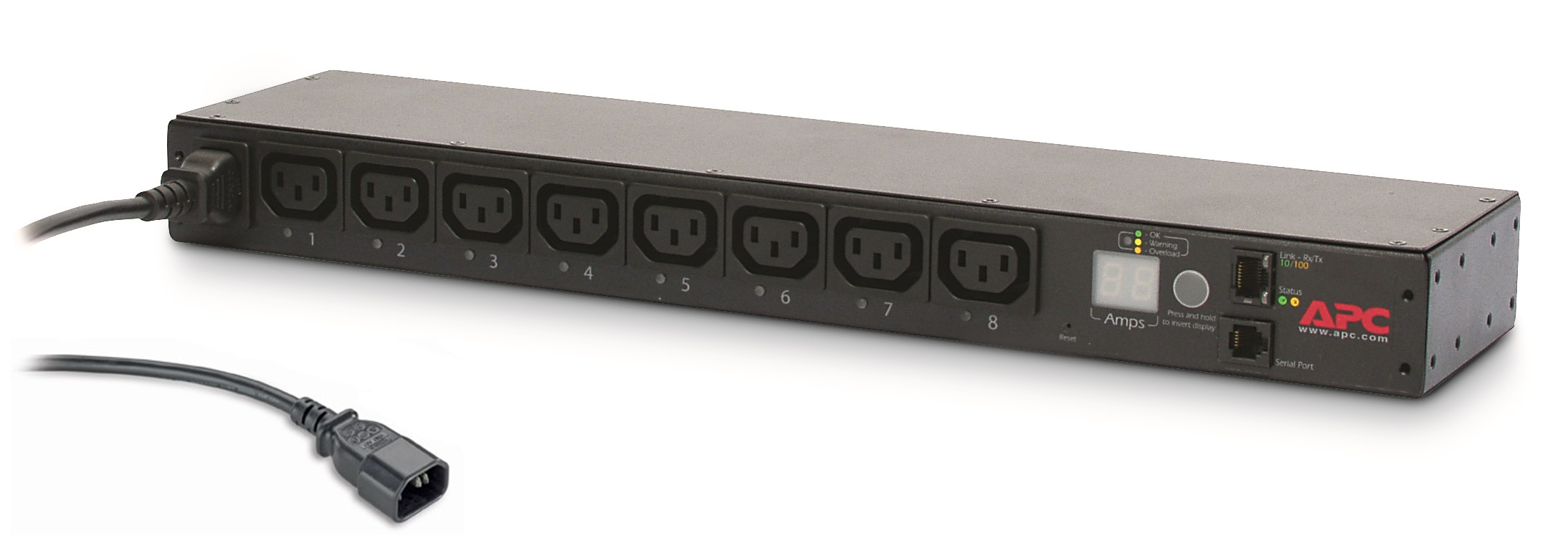

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW…

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord, Metered, Switched, 0U/1U, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler

APC SWITCHED 1U RACK PDU 12A/208V, 10A/230V, (8)C13, 2YR

Click or hover over image to enlarge

Brand:APC
MPN:AP7920B

Part #: AP7920B

Nominal input voltage

200-230 V

AC input frequency

50 - 60 Hz

Maximum current

10 A

Nominal output voltage

208-230 V

Load capacity

2300 VA

Maximum input current per phase

10 A

Maximum total current draw per phase

10 A

Maximum power

2300 W

Returns & Warranty

Comsys Price

$2,251.69

Save $117.01 off RRP

Only 2 left in stock

Order soon to avoid backorder

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $562.92 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

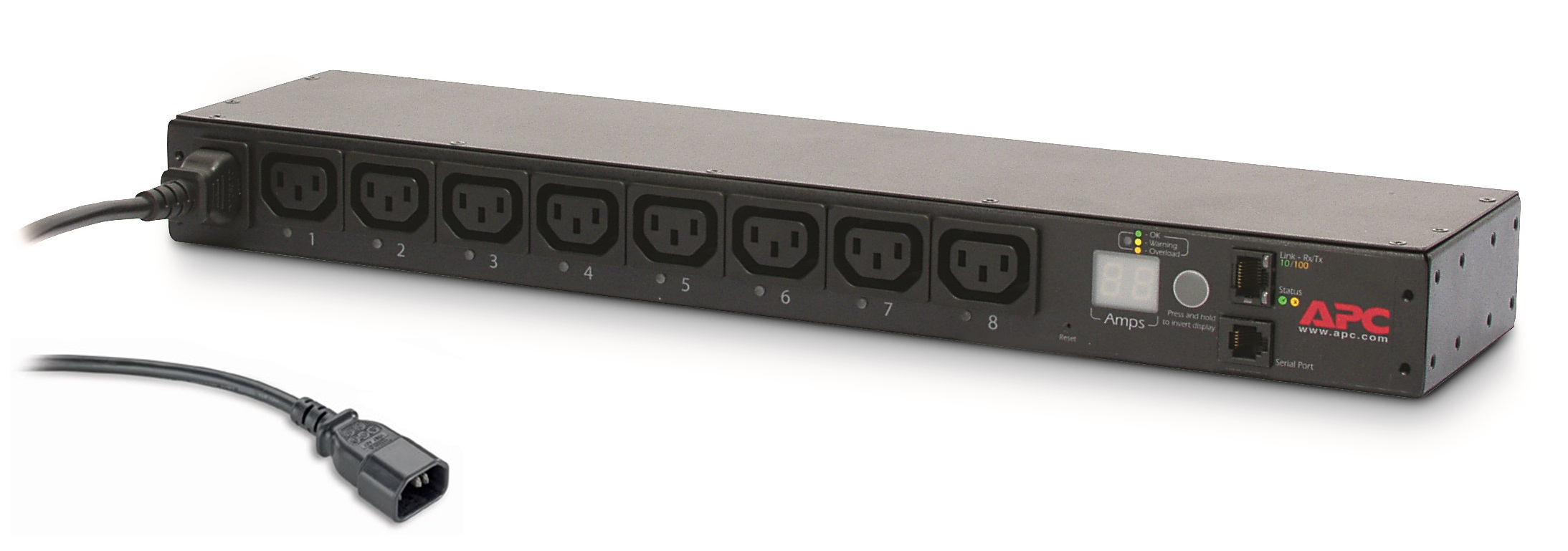

APC SWITCHED 1U RACK PDU 12A/208V, 10A/230V, (8)C13, 2YR

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Key features

  • PDU types: Metered, Switched
  • Rack capacity: 0U/1U
  • Mounting: Horizontal/Vertical
  • Product colour: Black
  • AC outlets quantity: 8 AC outlet(s)
  • Power plug: C14 coupler
  • AC outlet types: C13 coupler
  • Input connection type: IEC-320 C14
  • Cable length: 1.98 m
  • Monitoring: Current, Power, Voltage
  • Outlet control: Lock-out, Recycle, Turn off, Turn on
  • Nominal input voltage: 200-230 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 10 A
  • Nominal output voltage: 208-230 V
  • Load capacity: 2300 VA
  • Maximum input current per phase: 10 A
  • Maximum total current draw per phase: 10 A
  • Maximum power: 2300 W
  • Compliance certificates: RoHS
  • Certification: cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 1 - 15000 m
  • Width: 445 mm
  • Depth: 108 mm
  • Height: 44 mm

+ 7 more — see the Specifications tab.
