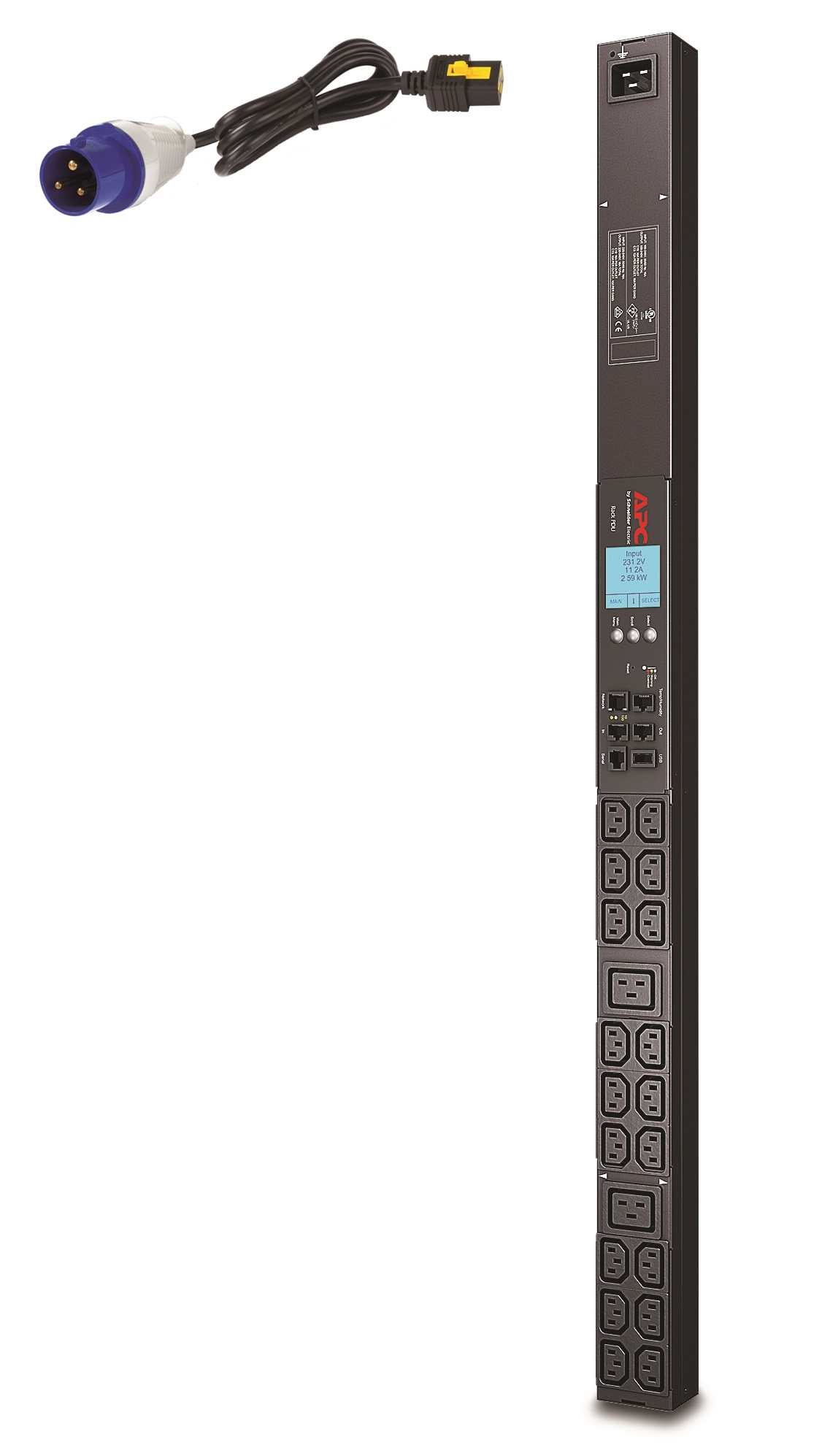

APC AP8858EU3 power distribution unit (PDU) 20 AC outlet(s) 0U

APC AP8858EU3, Metered, 0U, Vertical, 20 AC outlet(s), C13 coupler, C19 coupler, IEC309

APC METERED VERTICAL PDU, 230V, 16A, 3.7KW, C13(18), C19(2), IEC-309, 2YR

Click or hover over image to enlarge

Brand:APC
MPN:AP8858EU3

Part #: AP8858EU3

AC input frequency

50 - 60 Hz

Nominal output voltage

230 V

Load capacity

3680 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

3680 W

PDU types

Metered

Rack capacity

0U

Returns & Warranty

Comsys Price

$1,752.59

Save $101.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $438.15 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

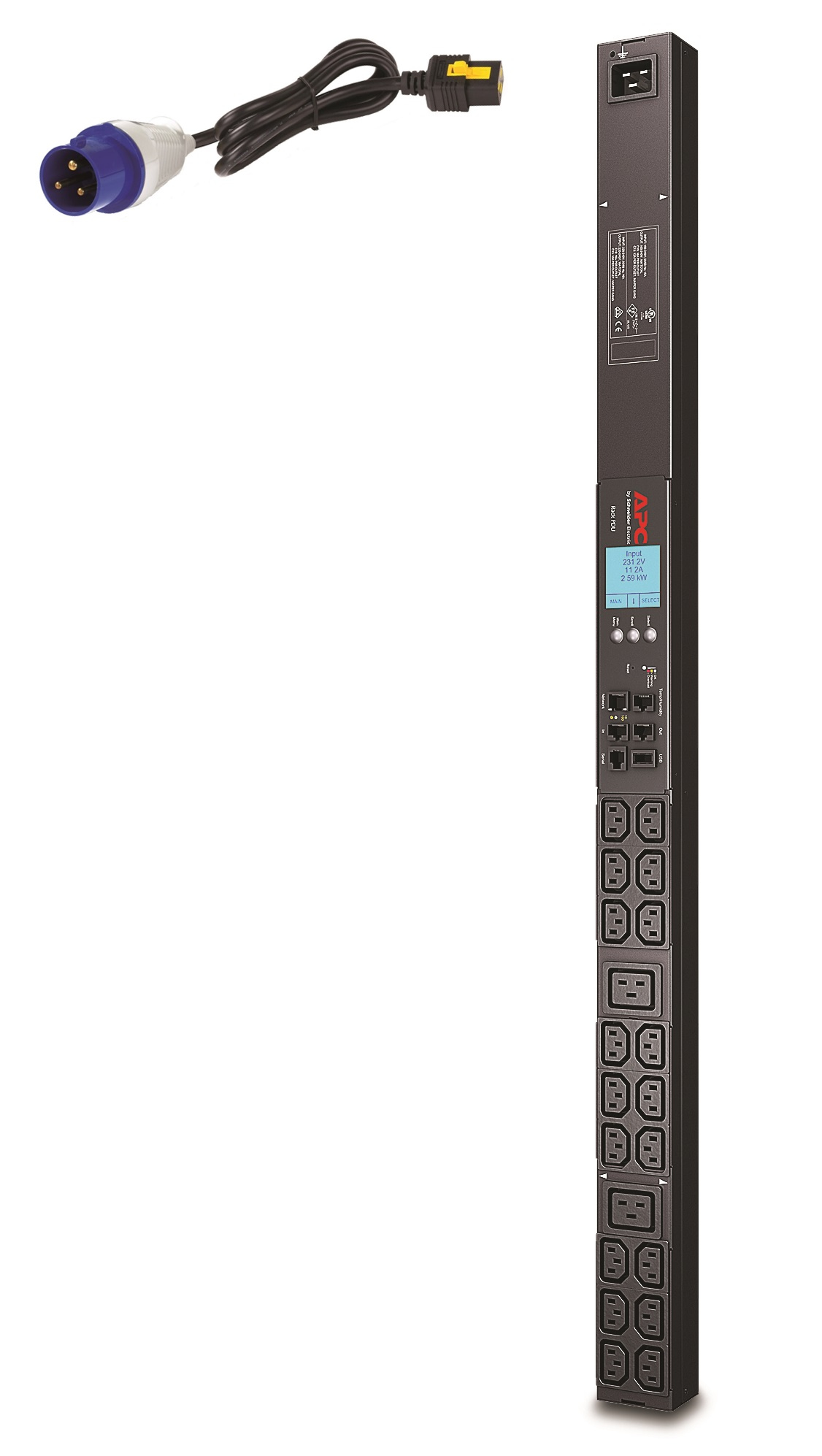

APC METERED VERTICAL PDU, 230V, 16A, 3.7KW, C13(18), C19(2), IEC-309, 2YR

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Key features

  • PDU types: Metered
  • Rack capacity: 0U
  • Mounting: Vertical
  • AC outlets quantity: 20 AC outlet(s)
  • Power plug: IEC309
  • AC outlet types: C13 coupler, C19 coupler
  • Input connection type: IEC 309 16A 2P+E
  • Output connections: 18x IEC 320 C13 2x IEC 320 C19
  • Cable length: 3 m
  • Monitoring: Current, Power, Voltage
  • AC input frequency: 50 - 60 Hz
  • Nominal output voltage: 230 V
  • Load capacity: 3680 VA
  • Maximum input current per phase: 16 A
  • Maximum total current draw per phase: 16 A
  • Maximum power: 3680 W
  • Certification: CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
  • Operating temperature (T-T): 5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 56 mm
  • Depth: 44 mm
  • Height: 902 mm
  • Weight: 2.93 kg
  • Package weight: 4.92 kg
  • Package width: 162 mm
  • Package depth: 107 mm
  • Package height: 1124 mm
  • Total carbon footprint (kg of CO2e): 13349.44
