APC AP8881 power distribution unit (PDU) 42 AC outlet(s) 0U Black
APC AP8881, Metered, 0U, Vertical, Black, 42 AC outlet(s), C13 coupler, C19 coupler
Click or hover over image to enlarge
Brand:APC
MPN:AP8881
Part #: AP8881
Nominal input voltage
400 V
AC input frequency
50 - 60 Hz
Maximum current
16 A
Nominal output voltage
230 V
Load capacity
11040 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
11000 W
Comsys Price
$3,084.29
Save $143.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $771.07 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC METERED VERTICAL PDU 0U, 400V, 3PH, 16A, 11KW, C13(36), C19(6), IEC-309, 2YR

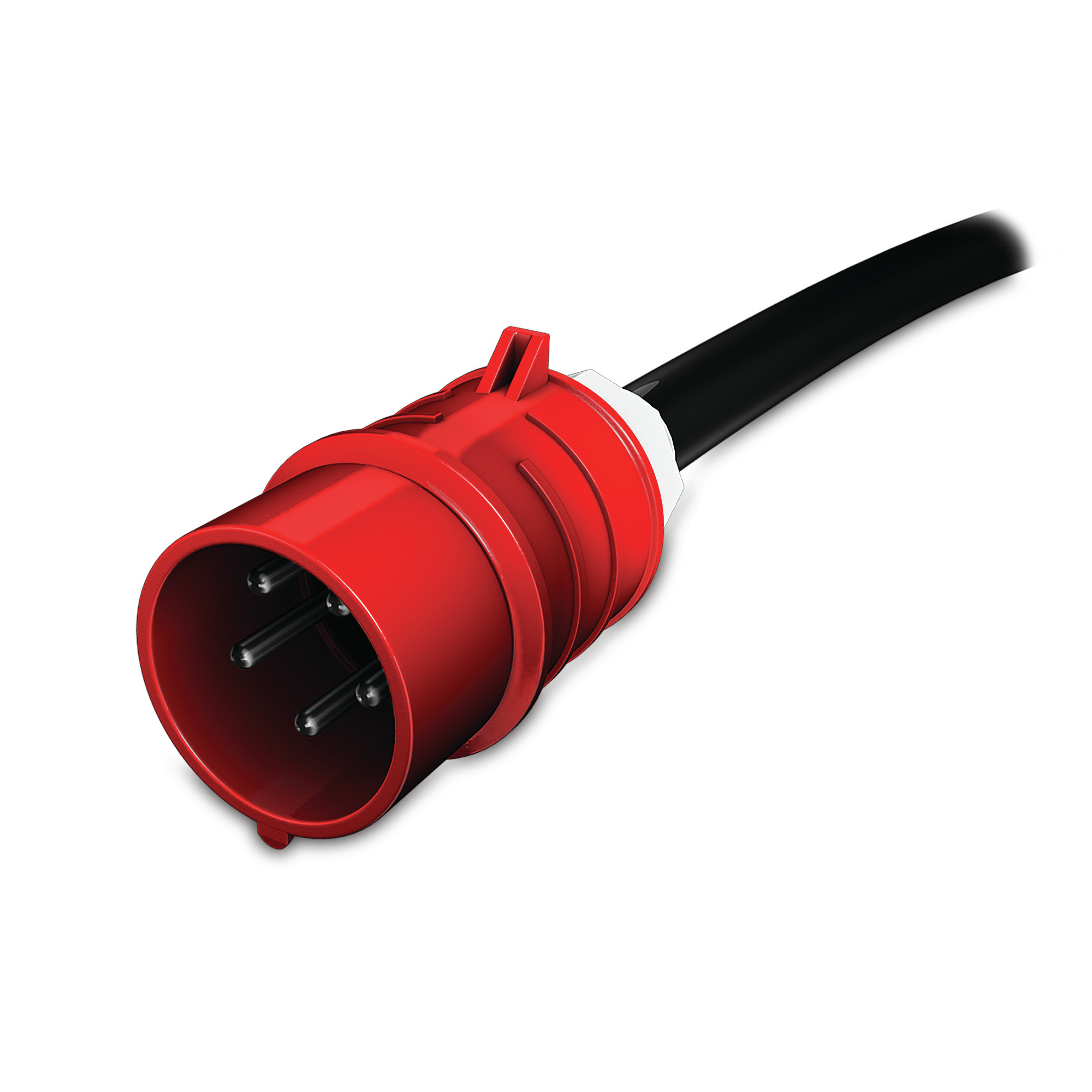

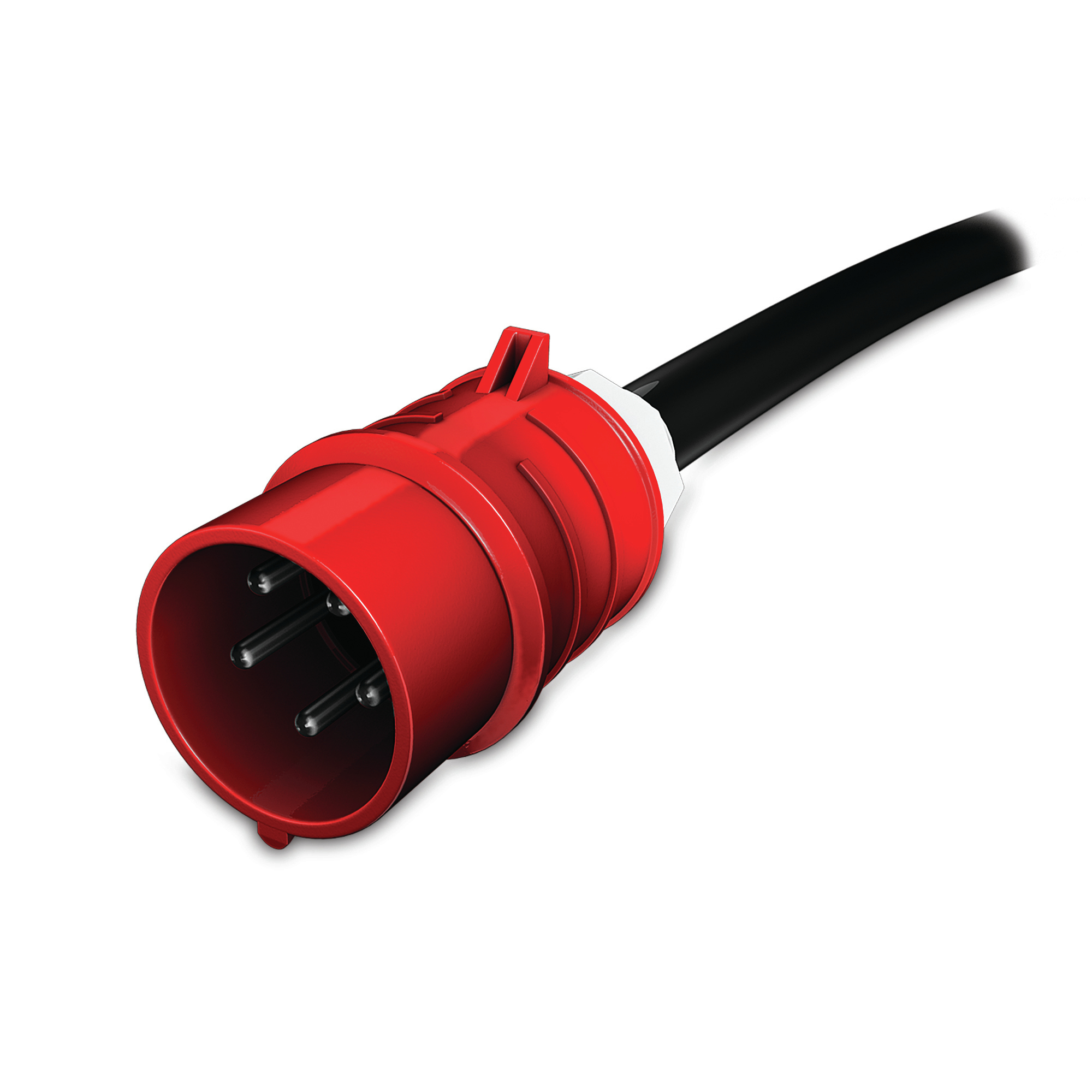

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Key features
- PDU types: Metered
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 42 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
- Input connection type: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
- Output connections: 36x IEC 320 C13 6x IEC 320 C19
- Cable length: 1.83 m
- Monitoring: Current, Power, Voltage
- Nominal input voltage: 400 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 16 A
- Nominal output voltage: 230 V
- Load capacity: 11040 VA
- Maximum input current per phase: 16 A
- Maximum total current draw per phase: 16 A
- Maximum power: 11000 W
- Certification: CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
- Operating temperature (T-T): 5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 56 mm
- Depth: 44 mm
- Height: 1791 mm
- Weight: 6.38 kg
- Total carbon footprint (kg of CO2e): 41106.13
