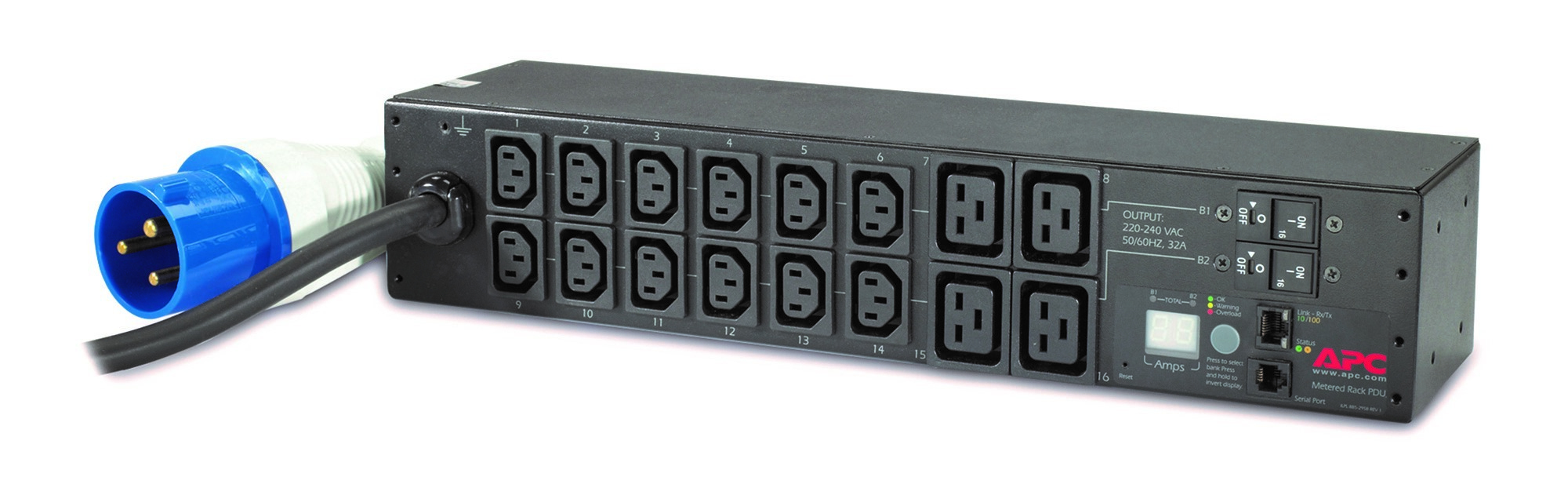

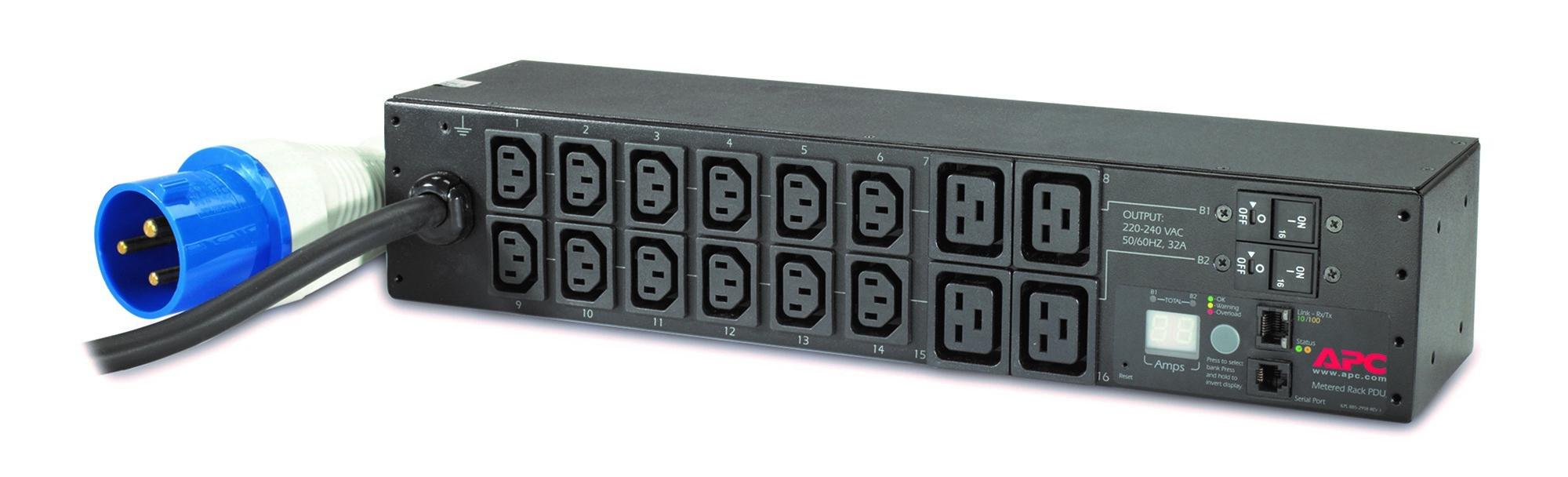

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black

APC AP7822B, Metered, 2U, Single-phase, Horizontal/Vertical, Black, 16 AC outlet(s)

APC METERED 2U RACK PDU, 230V, 32A, C13(12), C19(4), IEC-309, 2YR

Click or hover over image to enlarge

Brand:APC
MPN:AP7822B

Part #: AP7822B

Nominal input voltage

208-230 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Load capacity

7680 VA

Maximum input current per phase

32 A

Maximum total current draw per phase

32 A

Power protection features

Overload

Maximum power

7680 W

Returns & Warranty

Comsys Price

$2,133.24

Save $120.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $533.31 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC METERED 2U RACK PDU, 230V, 32A, C13(12), C19(4), IEC-309, 2YR

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Key features

  • PDU types: Metered
  • Type: Single-phase
  • Rack capacity: 2U
  • Mounting: Horizontal/Vertical
  • Product colour: Black
  • On/off switch: Yes
  • AC outlets quantity: 16 AC outlet(s)
  • Power plug: IEC309
  • AC outlet types: C13 coupler, C19 coupler
  • Input connection type: IEC 309 32A 2P+E
  • Output connections: 12 x C13 4 x C19
  • LED indicators: Yes
  • Cable length: 3.66 m
  • Monitoring: Current, Power, Voltage
  • Nominal input voltage: 208-230 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 32 A
  • Load capacity: 7680 VA
  • Maximum input current per phase: 32 A
  • Maximum total current draw per phase: 32 A
  • Power protection features: Overload
  • Maximum power: 7680 W
  • Compliance certificates: RoHS
  • Certification: C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 444 mm
  • Depth: 112 mm

+ 7 more — see the Specifications tab.
