APC EasyPDU, Switched, Zero U, 11 kW, 230V, (21) C13 & (6) C19；IEC309
APC EasyPDU, Switched, Zero U, 11 kW, 230V, (21) C13 & (6) C19；IEC309, Switched, 0U, Three-phase, Vertical, Black, 27 AC outlet(s)
Click or hover over image to enlarge
Brand:APC
MPN:EPDU2216S
Part #: EPDU2216S
Nominal input voltage
400 V
AC input frequency
50/60 Hz
Maximum current
16 A
Nominal output voltage
230 V
Output voltage
230 V
Load capacity
11040 VA
Number of phases
3
PDU types
Switched
Comsys Price
$1,823.89
Save $89.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $455.97 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC EasyPDU, Switched, Zero U, 11 kW, 230V, (21) C13 & (6) C19

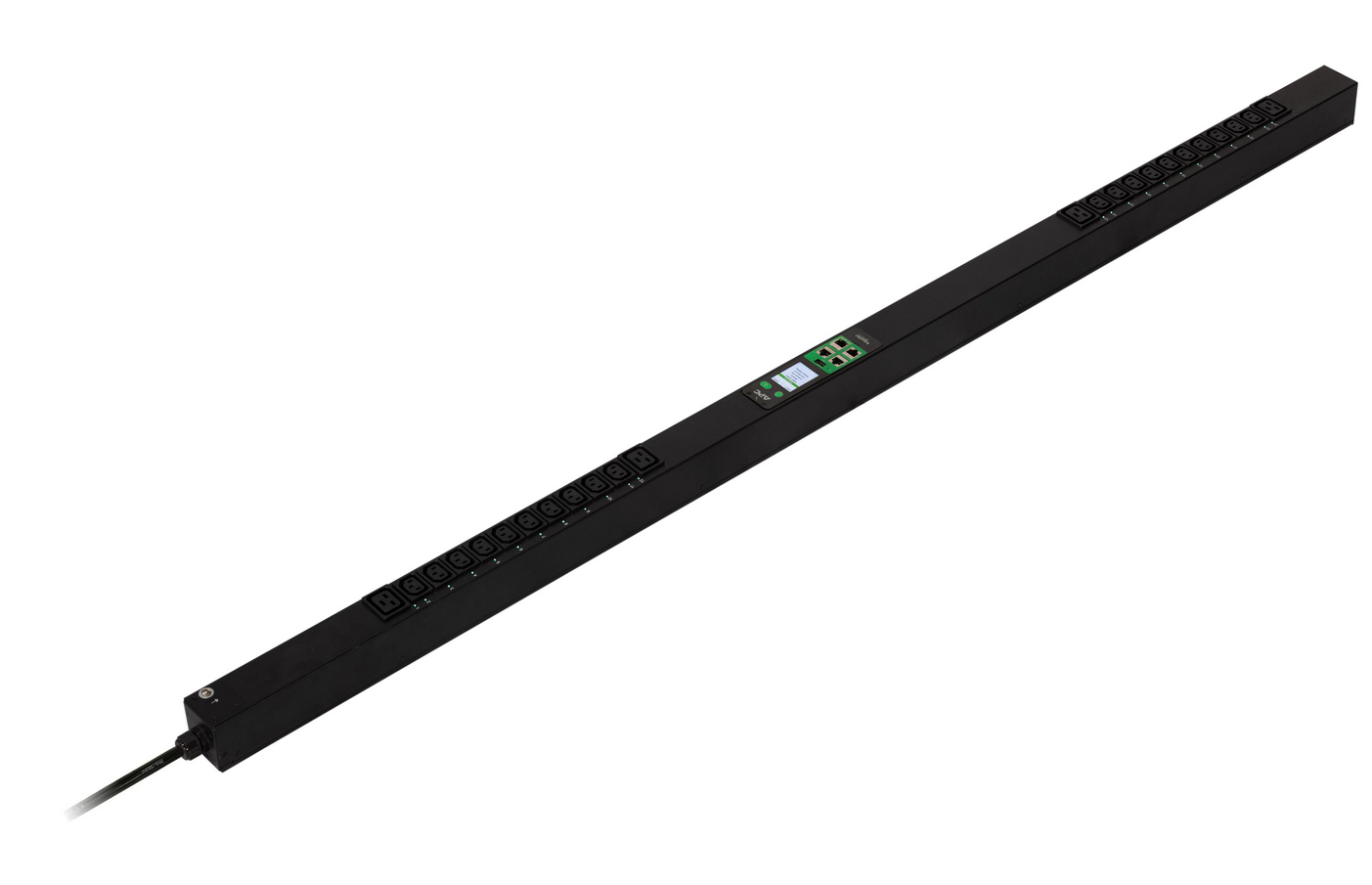

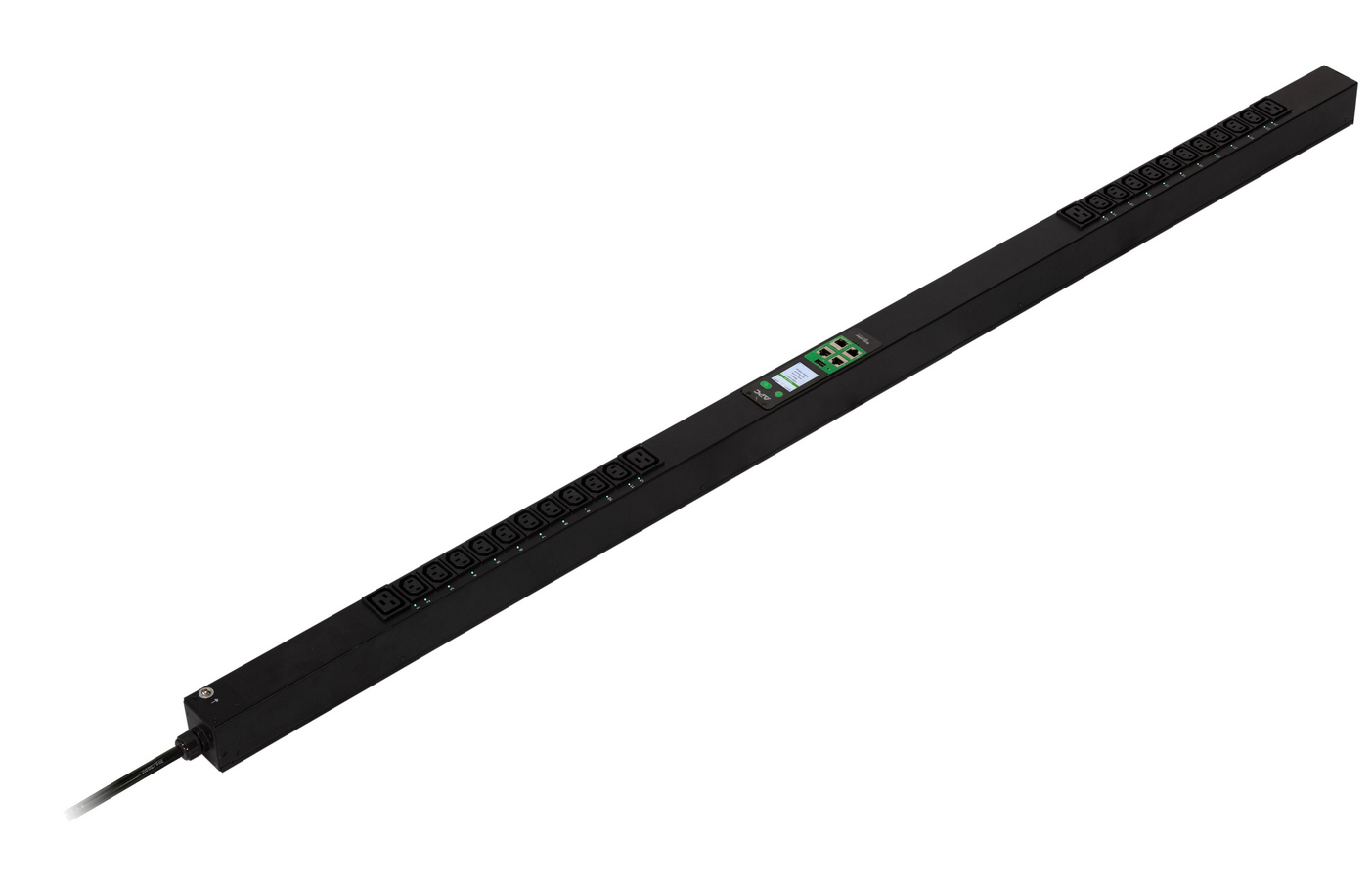

It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 11 kW and operates at 230V with a 16A input current. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally,it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.
Key features
- PDU types: Switched
- Type: Three-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 27 AC outlet(s)
- Power plug: C13 coupler
- AC outlet types: C13 coupler, C19 coupler
- Nominal input voltage: 400 V
- AC input frequency: 50/60 Hz
- Maximum current: 16 A
- Nominal output voltage: 230 V
- Output voltage: 230 V
- Load capacity: 11040 VA
- Number of phases: 3
- Compliance certificates: CE, UKCA
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Width: 56 mm
- Depth: 62 mm
- Height: 1650 mm
- Weight: 6.2 kg
- Package weight: 7.7 kg
- Package width: 170 mm
- Package depth: 1810 mm
- Package height: 1260 mm
- Total carbon footprint (kg of CO2e): 1462
