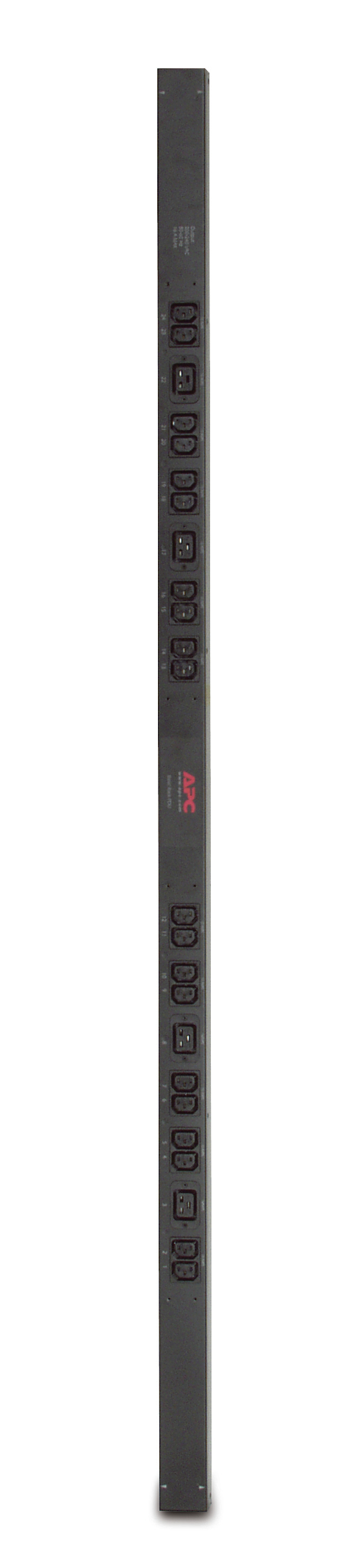

APC Basic Rack PDU power distribution unit (PDU) 24 AC outlet(s) 0U…
APC Basic Rack PDU, Basic, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler
Click or hover over image to enlarge
Brand:APC
MPN:AP7554
Part #: AP7554
Nominal input voltage
230 V
Nominal output voltage
230 V
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
3680 W
PDU types
Basic
Rack capacity
0U
Comsys Price
$1,101.69
Save $67.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $275.42 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

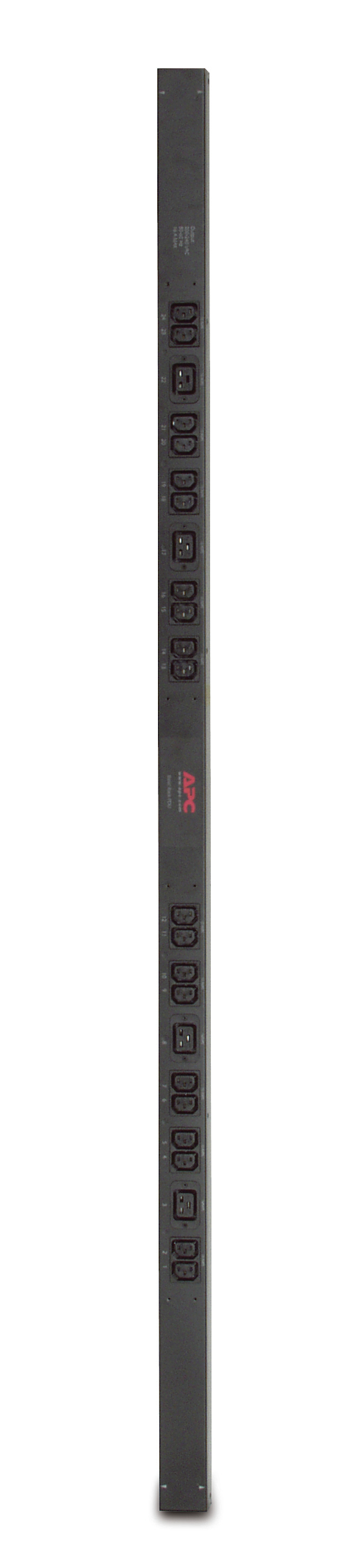

APC BASIC VERTICAL PDU, 230V, 16A, C13(20), C19(4), IEC-309, 2YR
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) that distribute power to rack-mount equipment.
- Single input power source.
- Toolless Mounting Capabilities.
- Vertical Mounting Capabilities.
- Single input power source.
- Toolless Mounting Capabilities.
- Vertical Mounting Capabilities.
Key features
- PDU types: Basic
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 24 AC outlet(s)
- AC outlet types: C13 coupler, C19 coupler
- Input connection type: IEC 309 16A
- Output connections: 20x IEC 320 C13 4x IEC 320 C19
- Cable length: 3.05 m
- Nominal input voltage: 230 V
- Nominal output voltage: 230 V
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum total current draw per phase: 16 A
- Maximum power: 3680 W
- Certification: CCC, CE, VDE
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 56 mm
- Depth: 44 mm
- Height: 1619 mm
- Weight: 5.57 kg
- Package weight: 6.48 kg
- Package width: 152 mm
- Package depth: 127 mm
- Package height: 2134 mm
Inc GST
$1,101.69
