APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW,…

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19, Metered, Metered-by-outlet, Switched, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler

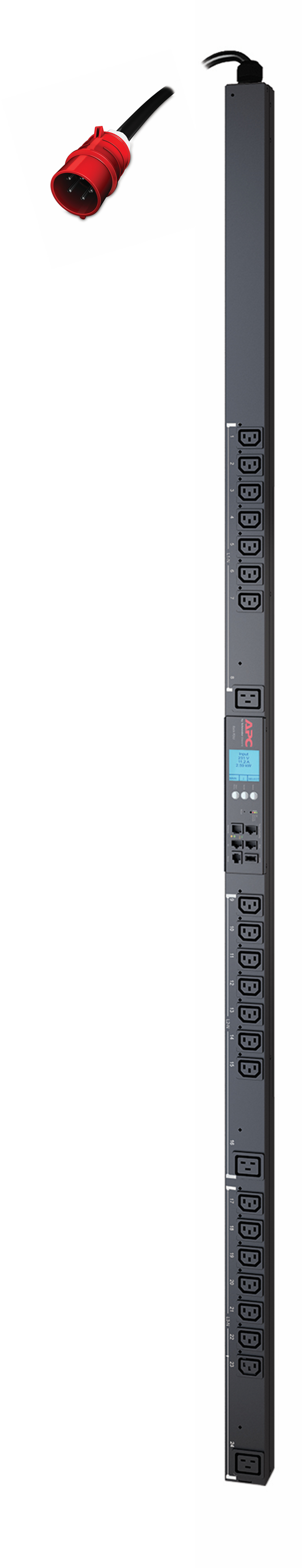

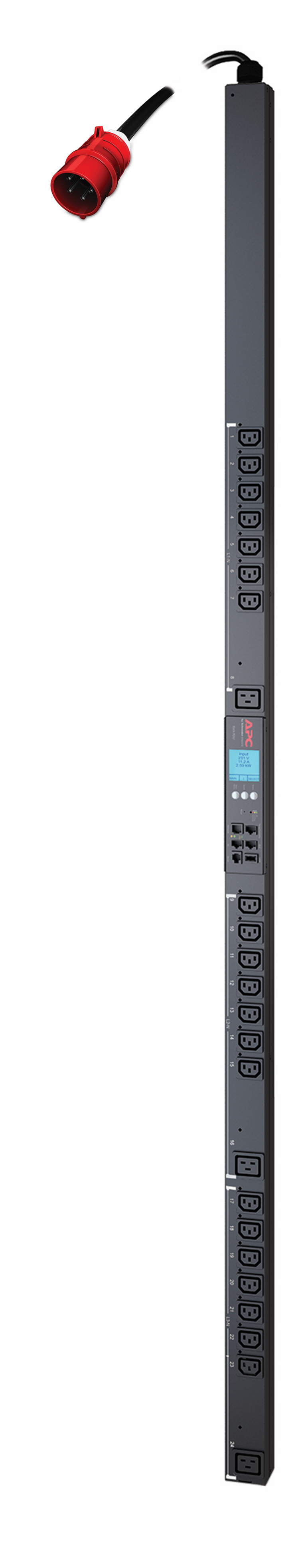

APC (AP8681) RACK PDU 2G, MTRD OUTLT W SWITCHING, ZEROU, 11.0KW, 230V, (21) C13 & (3) C19

Click or hover over image to enlarge

Brand:APC
MPN:AP8681

Part #: AP8681

Nominal input voltage

400 V

AC input frequency

50 - 60 Hz

Maximum current

16 A

Nominal output voltage

230 V

Load capacity

11040 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

11040 W

Returns & Warranty

Comsys Price

$5,051.94

Save $232.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC (AP8681) RACK PDU 2G, MTRD OUTLT W SWITCHING, ZEROU, 11.0KW, 230V, (21) C13 & (3) C19

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Key features

  • PDU types: Metered, Metered-by-outlet, Switched
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • AC outlet types: C13 coupler, C19 coupler
  • Cable length: 1.83 m
  • Monitoring: Current, Power, Voltage
  • Outlet control: Lock-out, Recycle, Turn off, Turn on
  • Nominal input voltage: 400 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 16 A
  • Nominal output voltage: 230 V
  • Load capacity: 11040 VA
  • Maximum input current per phase: 16 A
  • Maximum total current draw per phase: 16 A
  • Maximum power: 11040 W
  • Compliance certificates: RoHS
  • Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE
  • Operating temperature (T-T): -5 - 45 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 15000 m
  • Width: 56 mm
  • Depth: 51 mm
  • Height: 1829 mm
  • Weight: 8.23 kg
  • Package weight: 10.5 kg
  • Package width: 162 mm

+ 3 more — see the Specifications tab.
