APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 &…

APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19, Metered, Metered-by-outlet, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler

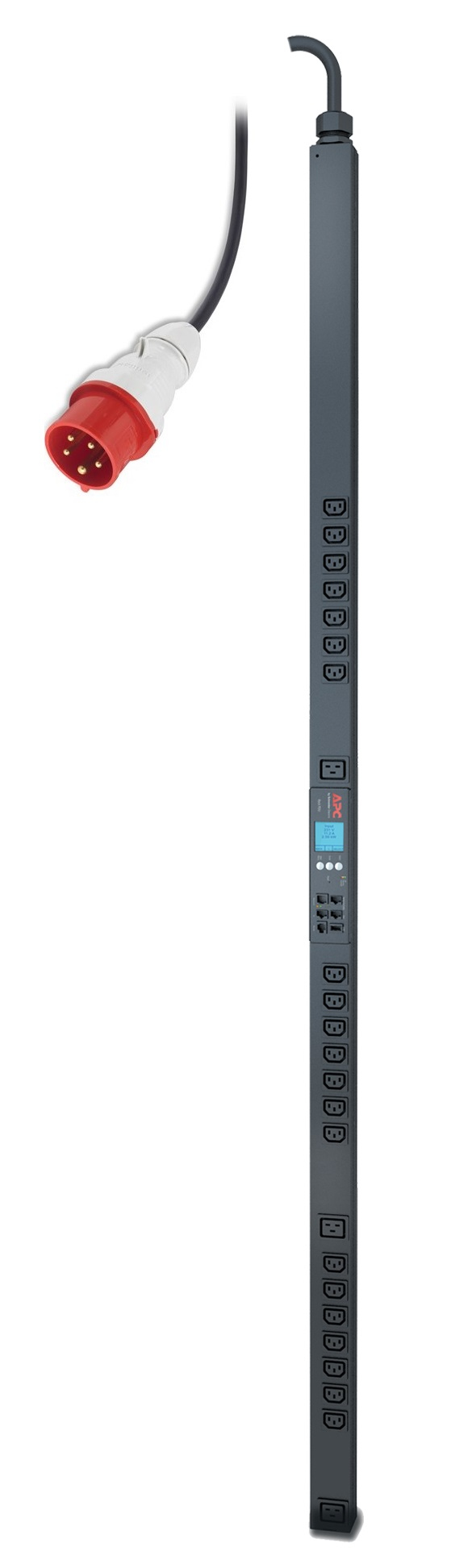

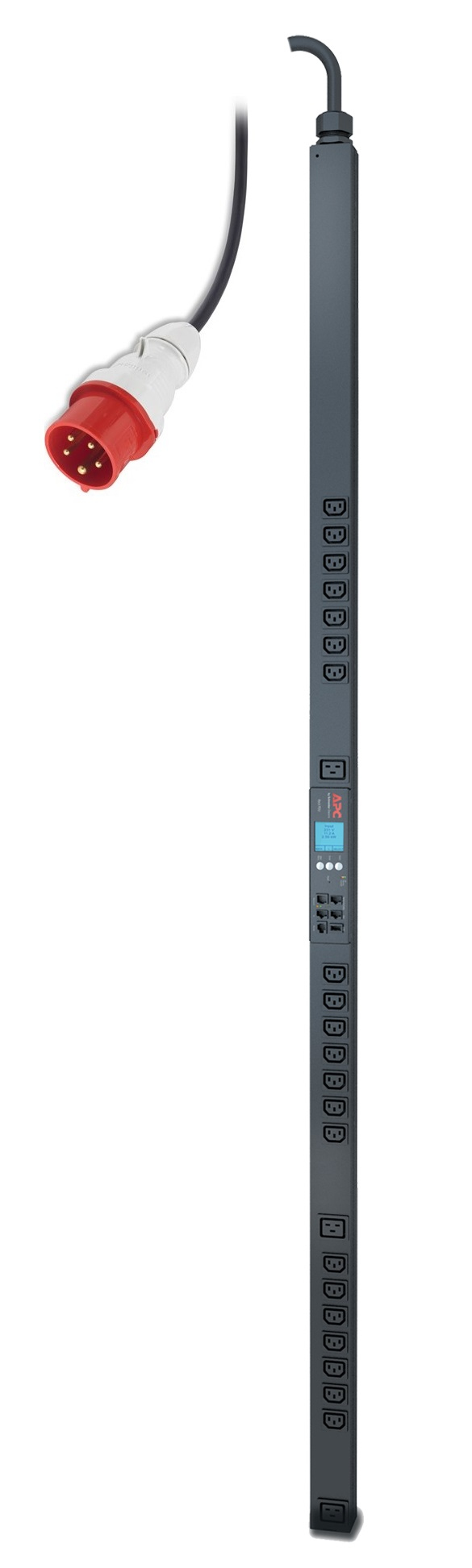

APC (AP8481) RACK PDU 2G, METERED-BY-OUTLET, ZEROU, 11.0KW, 230V, (21) C13 & (3) C19

Click or hover over image to enlarge

Brand:APC
MPN:AP8481

Part #: AP8481

Nominal input voltage

400 V

AC input frequency

50 - 60 Hz

Nominal output voltage

230 V

Load capacity

11040 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

11040 W

PDU types

Metered, Metered-by-outlet

Returns & Warranty

Comsys Price

$3,973.24

Save $195.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $993.31 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC (AP8481) RACK PDU 2G, METERED-BY-OUTLET, ZEROU, 11.0KW, 230V, (21) C13 & (3) C19

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

Key features

  • PDU types: Metered, Metered-by-outlet
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC309
  • AC outlet types: C13 coupler, C19 coupler
  • Input connection type: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
  • Output connections: 21 x C13 & 3 x C19
  • LED indicators: Yes
  • Cable length: 1.83 m
  • Monitoring: Current, Power, Voltage
  • Management platform: Web, SNMP, Telnet
  • Nominal input voltage: 400 V
  • AC input frequency: 50 - 60 Hz
  • Nominal output voltage: 230 V
  • Load capacity: 11040 VA
  • Maximum input current per phase: 16 A
  • Maximum total current draw per phase: 16 A
  • Maximum power: 11040 W
  • Compliance certificates: RoHS
  • Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE, REACH
  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 15000 m
  • Width: 56 mm
  • Depth: 51 mm
  • Height: 1829 mm

+ 6 more — see the Specifications tab.
