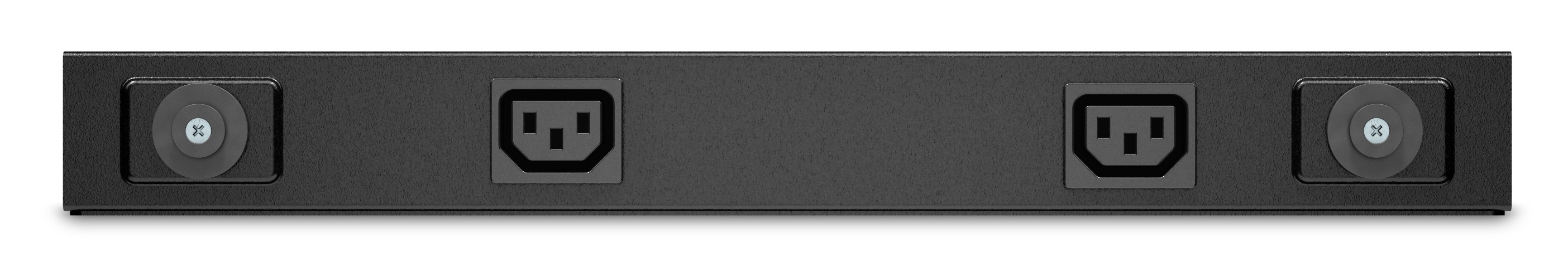

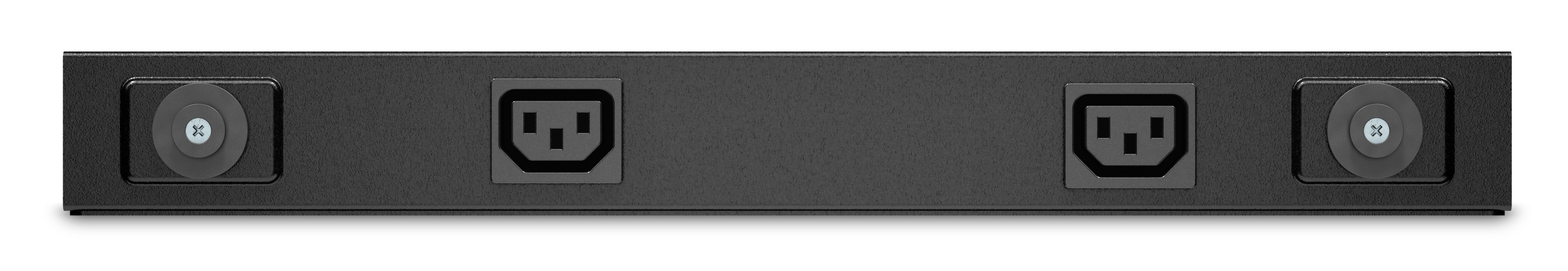

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black

APC AP6020A, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 13 AC outlet(s)

APC (AP6020A) RACK PDU, BASIC, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13

Click or hover over image to enlarge

Brand:APC
MPN:AP6020A

Part #: AP6020A

Nominal input voltage

100-240 V

AC input frequency

50 - 60 Hz

Maximum current

20 A

Load capacity

3680 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

3680 W

PDU types

Basic

Returns & Warranty

Comsys Price

$189.74

Save $15.00 off RRP

In Stock

7 units available

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $47.44 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC (AP6020A) RACK PDU, BASIC, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Key features

  • PDU types: Basic
  • Type: Single-phase
  • Rack capacity: 0U/1U
  • Mounting: Horizontal/Vertical
  • Product colour: Black
  • AC outlets quantity: 13 AC outlet(s)
  • Power plug: C20 coupler
  • AC outlet types: C13 coupler
  • Output connections: IEC 320 C13
  • Nominal input voltage: 100-240 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 20 A
  • Load capacity: 3680 VA
  • Maximum input current per phase: 16 A
  • Maximum total current draw per phase: 16 A
  • Maximum power: 3680 W
  • Compliance certificates: RoHS
  • Certification: cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -15 - 60 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3048 m
  • Width: 44 mm
  • Depth: 93 mm
  • Height: 388 mm
  • Weight: 1.5 kg
  • Package weight: 2.02 kg
  • Package width: 210 mm
  • Package depth: 76 mm

+ 2 more — see the Specifications tab.
