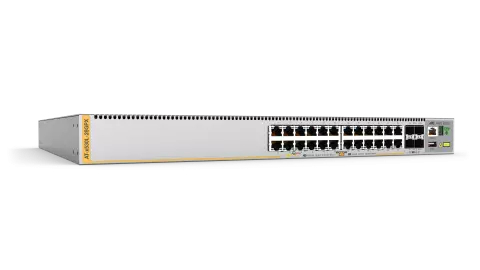

Allied Telesis X530L-28GPX Managed L3 Gigabit Ethernet (10/100/1000)…
Allied Telesis X530L-28GPX, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Click or hover over image to enlarge
Part #: 5685198
Power source
AC
AC input voltage
90 - 264 V
AC input frequency
50 - 60 Hz
Power consumption (max)
890 W
Rack mounting
Yes
Stackable
Yes
LED indicators
Yes
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Comsys Price
Save $2,055.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

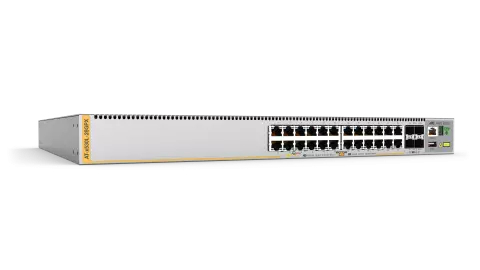

ALLIED TELESIS 24PORT POE+ STACKABLE L3 4XSFP
The Allied Telesis x530L Series stackable Layer 3 switches feature high capacity, resiliency and easy management. With both Multi-Gigabit and high port density models, plus Power over Ethernet, they are the ideal choice for network access applications.
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic classification: Yes
- Configuring Location Settings (CLI): Yes
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- Installed SFP+ modules quantity: 4
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: Yes
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- VLAN support: Yes
- Number of VLANs: 4094
- Switching capacity: 128 Gbit/s
- Forwarding rate: 95.2 Mpps
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 6.06 µs
- Latency (1 Gbps): 3.98 µs
- Latency (10 Gbps): 1.63 µs
- Packet buffer memory: 3 MB
- Access Control List (ACL): Yes
- Password protection: Yes
- Multicast support: Yes
- Routing protocols: OSPF
- Rack mounting: Yes
- Stackable: Yes
+ 25 more — see the Specifications tab.
Inc GST
$9,162.04
