StarTech.com 1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit…
StarTech.com 1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit Speeds (2.5G/1G/100M/10M), NBASE-T (802.3bz) NIC, M.2 B+M Key, PCIe Ethernet Interface, For SFF/Desktop PCs - TAA, Internal, Wired, M.2, Ethernet, 2500 Mbit/s, Red
Click or hover over image to enlarge
Part #: MR12GI-NETWORK-CARD
Component for
PC/Server
Product colour
Red
Internal
Yes
Chipset
Intel I225-V
LED indicators
Yes
Maximum data transfer rate
2500 Mbit/s
Networking standards
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN
Yes
Comsys Price
Save $26.32 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $43.41 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 1PORT 2.5G M.2 2280 NETWORK CARD, NBASE-T NIC PCIE ETHERNET, 2 YR
This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

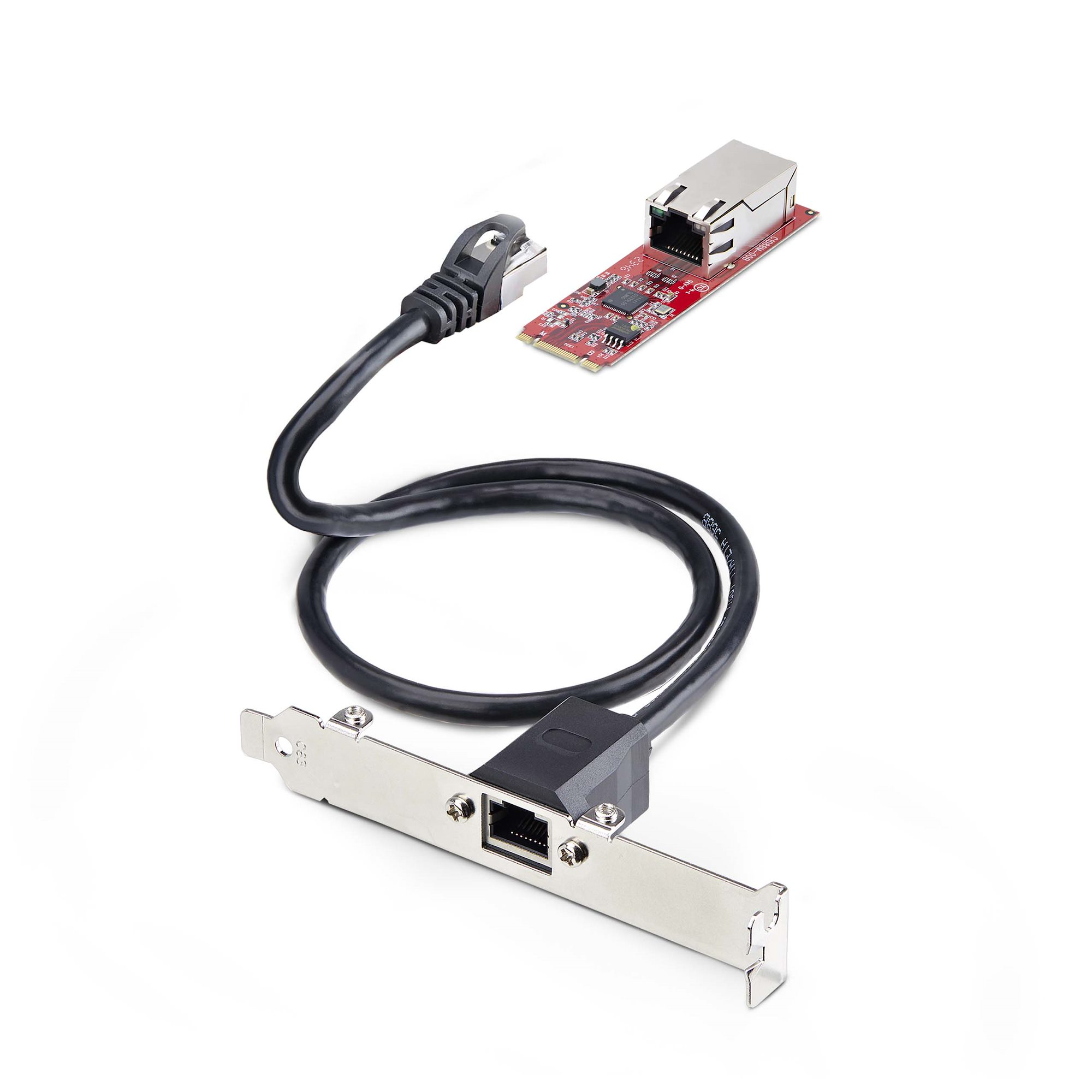

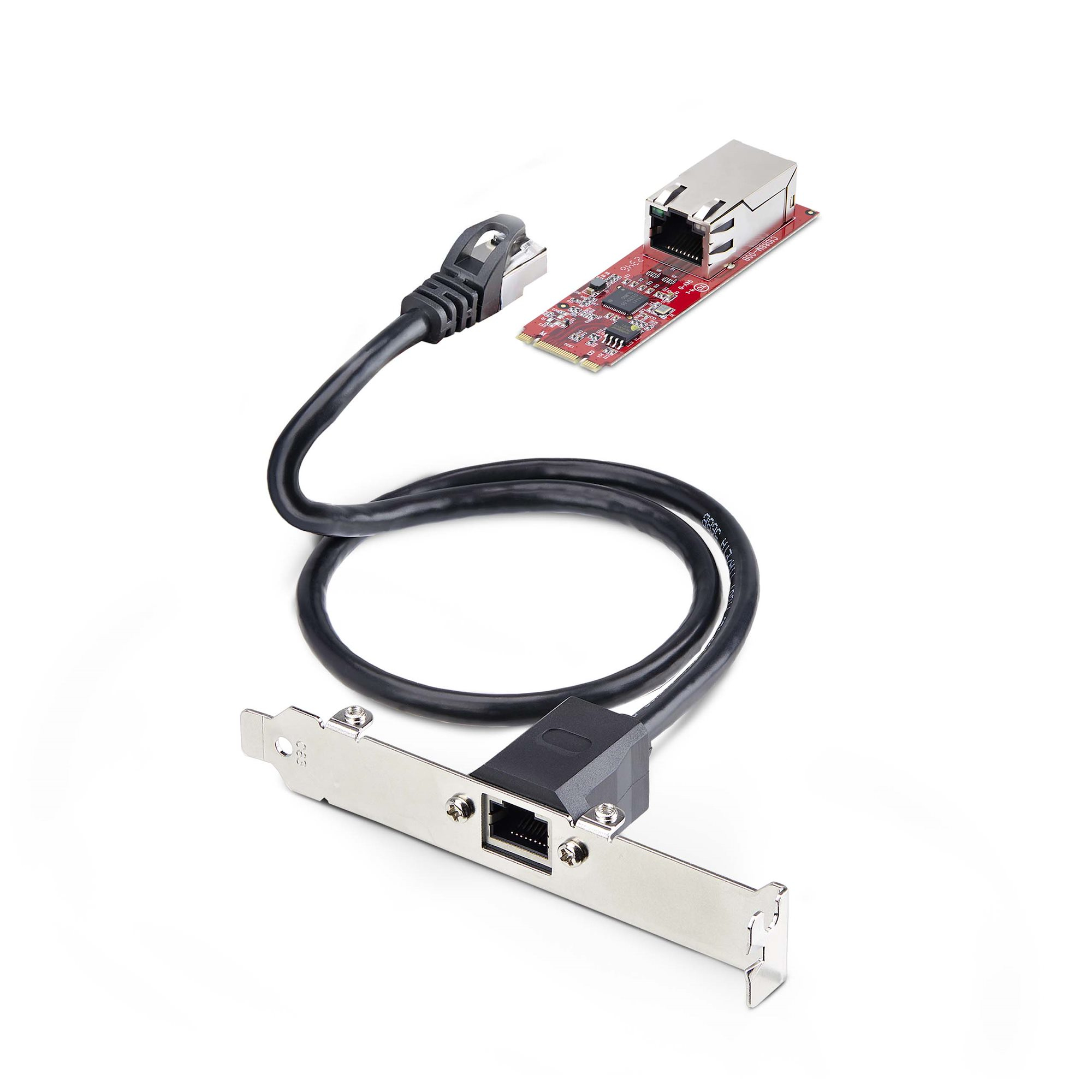

The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.
Advanced Features
This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.
The StarTech.com Advantage
Key features
- Connectivity technology: Wired
- Host interface: M.2
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
- PCI version: 2.0
- Maximum data transfer rate: 2500 Mbit/s
- Networking standards: IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
- Cabling technology: NBase-T
- Wake-on-LAN ready: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Component for: PC/Server
- Product colour: Red
- Internal: Yes
- Chipset: Intel I225-V
- LED indicators: Yes
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
- Sustainability compliance: Yes
- Width: 80 mm
- Depth: 22 mm
- Height: 15 mm
- Weight: 15 g
- Package width: 142 mm
- Package depth: 170 mm
- Package height: 30 mm
- Package weight: 170 g
- Mounting brackets included: Yes
+ 7 more — see the Specifications tab.
